What are Standing Waves on a String?
Standing waves on a string are waves that remain in a constant position. Rather than traveling through the medium, they appear to be standing still. This occurs when two waves of the same frequency and amplitude travel in opposite directions and interfere with each other. This phenomenon is fundamental in the study of acoustics and wave physics.
How are Standing Waves Formed?
Standing waves on a string are formed under certain conditions:1. Boundary Conditions: The string must be fixed at both ends.2. Wave Interference: When a wave travels along the string, it hits the fixed end and reflects back. The reflected wave interferes with the incoming wave.
What are Nodes and Antinodes?
In a standing wave pattern:- Nodes: These are points along the string that remain stationary. At nodes, destructive interference occurs, meaning the displacement of the string at these points is zero.- Antinodes: These are points where the string oscillates with maximum amplitude. At antinodes, constructive interference takes place, so the string displacement is at its maximum.
What are the Characteristics of Standing Waves?
1. Wavelength (?): The distance between two consecutive nodes or antinodes.2. Frequency (f): The number of oscillations per unit of time.3. Amplitude: The maximum displacement from the equilibrium position. The length of the string (L) and the number of nodes and antinodes determine the wavelength and frequency of the standing wave.
What are Harmonics?
Standing waves create discrete frequencies known as harmonics:- Fundamental Frequency (First Harmonic): The simplest form, where the string vibrates in a single segment. There is one antinode between two nodes at the ends.- Second Harmonic: The string vibrates in two segments, with a node in the middle and an antinode at each end.- Higher Harmonics: Higher frequencies where the string vibrates in more segments.
How Do You Calculate the Frequency of Standing Waves on a String?
The frequency of the nth harmonic (f_n) is calculated using the formula:
f_n = n(v / 2L)
where- n is the harmonic number (1 for the fundamental, 2 for the second harmonic, etc.),- v is the speed of the wave on the string,- L is the length of the string.
Example:
If the speed of the wave on a string is 60 m/s and the length of the string is 2 meters, the fundamental frequency (first harmonic) is calculated as:
f_1 = v / 2L = 60 m/s / 2(2 m) = 15 Hz
For the second harmonic:
f_2 = 2(v / 2L) = 2(15 Hz) = 30 Hz
What Determines the Speed of a Wave on a String?
The speed (v) of a wave on a string depends on the tension (T) in the string and the mass per unit length (?) of the string:
v = sqrt(T / ?)
Conclusion:
Understanding standing waves on a string is essential in grasping the principles of waves and vibrations. These concepts are widely applicable in musical instruments, engineering, and various fields of physics. By controlling the tension, length, and mass per unit length of the string, different harmonics and frequencies can be produced, leading to a variety of wave patterns and sounds.
One string of a certain musical instrument is 75.0 cm long and has a mass of 8.75 g. It is being played in a room where the speed of sound is 344 m/s…

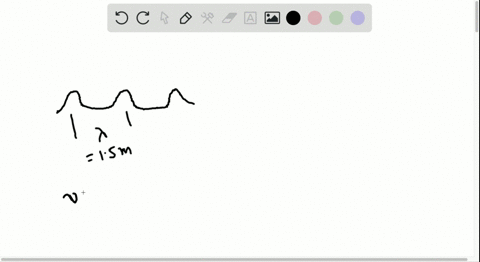

Apply Concepts Gravel roads often develop regularly spaced ridges that are perpendicular to the road, as shown in Figure $14-25 .$ This effect, calle…
