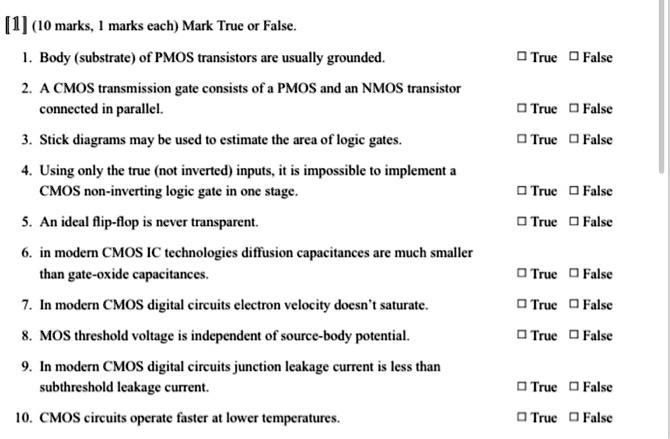

[1] (10 marks, 1 marks each) Mark True or False. 1. Body (substrate) of PMOS transistors are usually grounded. ? True ? False 2. A CMOS transmission gate consists of a PMOS and an NMOS transistor connected in parallel. ? True ? False 3. Stick diagrams may be used to estimate the area of logic gates. ? True ? False 4. Using only the true (not inverted) inputs, it is impossible to implement a CMOS non-inverting logic gate in one stage. ? True ? False 5. An ideal flip-flop is never transparent. ? True ? False 6. in modern CMOS IC technologies diffusion capacitances are much smaller than gate-oxide capacitances. ? True ? False 7. In modern CMOS digital circuits electron velocity doesn't saturate. ? True ? False 8. MOS threshold voltage is independent of source-body potential. ? True ? False 9. In modern CMOS digital circuits junction leakage current is less than subthreshold leakage current. ? True ? False 10. CMOS circuits operate faster at lower temperatures. ? True ? False
Added by Daniel B.
Close
Step 1
- This is False. The body of PMOS transistors is usually connected to the highest voltage in the circuit, not grounded. Show moreā¦
Show all steps
