12. Determine the total inductance of each circuit in Figure 11-43. (a) L? 100 mH L? 50 mH L? 60 mH L? 40 mH (b) L? 8 mH L? 2 mH L? 4 mH L? 4 mH (c) L? 4 mH L? 2 mH L? 1 mH L? 1 mH L? 2 mH
Added by Joanna B.
Close
Step 1
Step 1: Analyze circuit (a) to determine which inductors are in series and which are in parallel. Show more…
Show all steps
Your feedback will help us improve your experience
Chasen Shaw and 56 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
1.) The circuit has an inductor connected in parallel L1 = 4 H, L2 = 6 H and L3 = 5 H. Calculate the total inductance of the circuit. a.) 0.89 H b.) 1.31 H c.) 1.62 H d.) 0.9 H
Christopher D.
6. Determine the total inductance for the following inductors connected in PARALLEL: 100 mH, 50 mH, 10 mH. A. 160 mH B. 130 mH C. 10 mH D. 7.69 mH E. None of the above 7. The opposition to current flow created by an inductor is called ______. A. Resistance B. Inductance C. Impedance D. Inductive Reactance E. None of the above 8. Calculate the total inductive reactance of a circuit with two inductors connected in SERIES. The inductance values of the two inductors are 8 H and 333.33 mH. The AC power supply is set to 400 Hz. A. One must know the internal resistance of the coils B. 8.333 ̩̐ C. 837.7 ̩̐ D. 20.94 k̩̐ E. None of the above
Sri K.

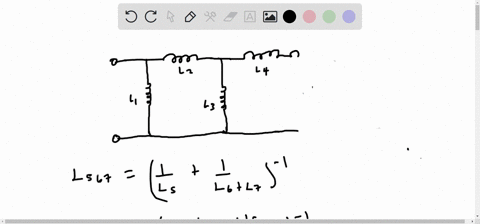

Find the equivalent Inductance (Leq) of the circuit given below:
