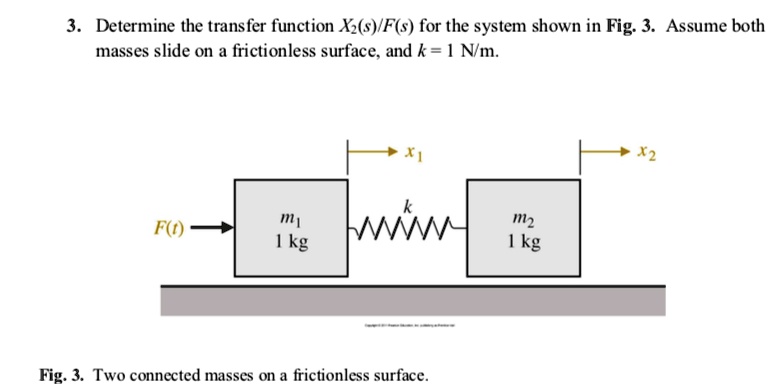

3. Determine the transfer function X2(s)/F(s) for the system shown in Fig. 3. Assume both masses slide on a frictionless surface, and k = 1 N/m.

Name: 3. Determine the transfer function X2(s)/F(s) for the system shown in Fig. 3. Assume both masses slide on a frictionless surface, and k = 1 N/m.
Uploaded: 2023-08-22T19:14:18-08:00
Duration: 3 min 6 s
Channel: Sri K
Description: 3. Determine the transfer function X2(s)/F(s) for the system shown in Fig. 3. Assume both masses slide on a frictionless surface, and k = 1 N/m.

          3. Determine the transfer function X2(s)/F(s) for the system shown in Fig. 3. Assume both masses slide on a frictionless surface, and k = 1 N/m.

Added by Douglas I.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

08/22/2023

Step 1

For mass m1, the equation of motion is: m1*x1''(t) = F(t) - k*x1(t) (1) For mass m2, the equation of motion is: m2*x2''(t) = k*x1(t) - k*x2(t) (2) Now, we take the Laplace transform of these equations. For equation (1), we get: m1*s^2*X1(s) = F(s) - Show more…
