Question

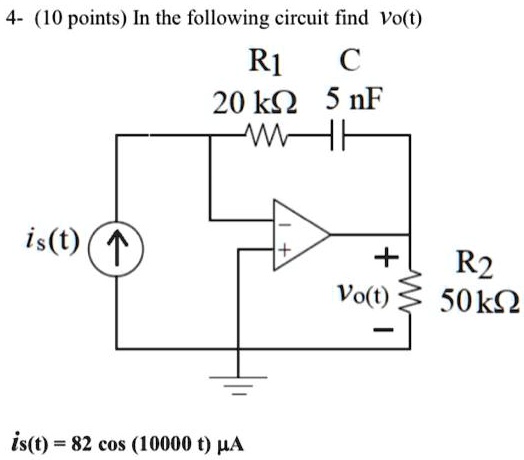

4- (10 points) In the following circuit find $V_o(t)$\\ $R_1$\ 20 k$\Omega$ 5 nF\ $i_s(t)$$\uparrow$\ +\ $i_s(t) = 82 \cos(10000t) \mu A$\ +\ $V_o(t)$\ -\ $R_2$\ 50 k$\Omega$

          4- (10 points) In the following circuit find $V_o(t)$\\
$R_1$\
20 k$\Omega$ 5 nF\
$i_s(t)$$\uparrow$\
+\
$i_s(t) = 82 \cos(10000t) \mu A$\
+\
$V_o(t)$\
-\
$R_2$\
50 k$\Omega$

4- (10 points) In the following circuit find Vo(t)

R120 kΩ 5 nFis(t)↑+is(t) = 82 cos(10000t) μ A+Vo(t)-R250 kΩ

Added by Robert H.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

Step 1

The impedance of a capacitor is given by the formula: Zc = 1 / (jωC) where j is the imaginary unit, ω is the angular frequency (2πf), and C is the capacitance. In this case, the angular frequency is 10000t and the capacitance is 5nF. So we have: Zc = 1 / (j * Show more…

Show all steps
