Consider the circuit shown in the figure below, where $R_1 = 5.00 Omega$, $R_2 = 9.00 Omega$, and $mathcal{E} = 11.0 ext{ V}$. (a) Find the voltage (in V) across $R_1$. (b) Find the current (in A) in $R_1$.
Added by -Ngeles M.
Close
Step 1
Calculate the total resistance of the circuit: Rtotal = R1 + R2 = 5.00 + 9.00 = 14.00 Ω Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 67 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Consider the circuit shown in the figure below, where R1 = 5.00 Ě©, R2 = 9.00 Ě©, and E = 11.0 V. Find the voltage (in V) across R1 and the current (in A) in R2.
Adi S.

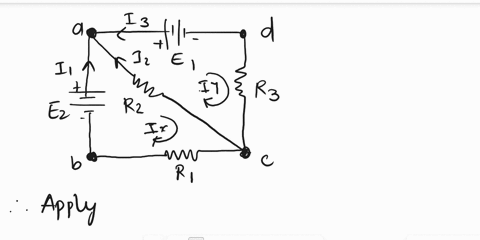

In the circuit shown below, R1 = 1.00 kΩ, R2 = 2.00 kΩ, R3 = 3.00 kΩ, ε1 = 10.0 V and ε2 = 6.75 V. a. What are the currents I1, I2 and I3? You may use an equation solver to solve the equations to find the currents BUT you must show me the equations and explain how you got each of them. b. If the voltage at point a is 10.0 V, what is the voltage at point c?
The circuit above has R1 = 820 Ě‘, R2 = 220 Ě‘, R3 = 470 Ě‘, R4 = 910 Ě‘, R5 = 560 Ě‘, R6 = 330 Ě‘, and R7 = 680 Ě‘ and an equivalent resistance looking into points A and B of RAB = 2244.8 Ě‘. The voltage applied to the circuit is VAB = 100 V. Determine the power dissipated by R2.
