Problem 24: Consider the block shown in the figure, which has a mass m and is sitting at rest on a ramp making an angle of ? with respect to the floor. Use Fs to denote the force of static friction. Please use the interactive area below to draw the Free Body Diagram for the block. Ftotal,x: Ftotal,y:
Added by Xavier F.
Close
Step 1
First, we need to identify the forces acting on the block. There are three forces acting on the block: the force of gravity (mg), the normal force (N), and the force of static friction (Fs). Show moreā¦
Show all steps
Your feedback will help us improve your experience
Surjit Tewari and 76 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Consider the block shown in the figure, which has a mass m and is sitting at rest on a ramp making an angle of Īø with respect to the floor. Use Fs to denote the force of static friction. Please use the interactive area below to draw the Free Body Diagram for the block.
Aparna S.
Problem 24: Consider the block shown in the figure, which has a mass m and is sitting at rest on a ramp making an angle ĢĢ with respect to the floor. Use Fs to denote the force of static friction.
Ivan K.

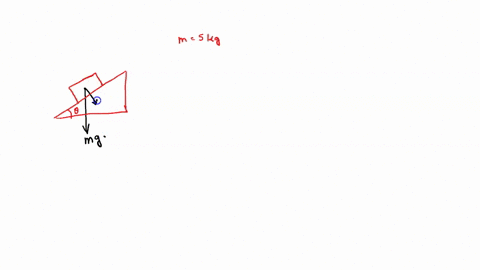

In Fig. 6-21, a block of mass m 5.0 kg is at rest on a ramp.The coefficient of static friction between the block and ramp is not known. Find the magnitude of the net force exerted by the ramp on the block.
