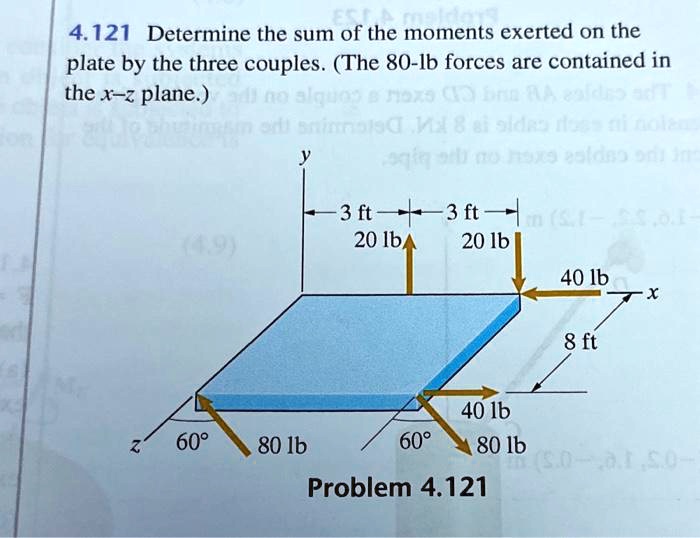

4.121 Determine the sum of the moments exerted on the plate by the three couples. (The 80-lb forces are contained in the x-z plane.)
Added by Elena P.
Close
Step 1
- We are given a plate acted upon by three couples. Each couple consists of two forces. The problem specifies that the 80-lb forces are contained in the x-z plane. We need to determine the sum of the moments exerted by these couples. Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 77 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

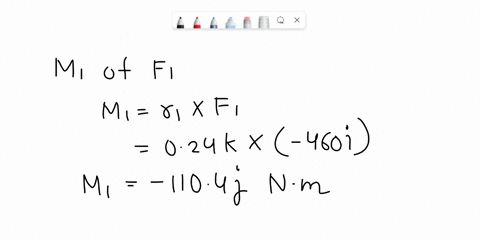

The three forces act perpendicular to the rectangular plate as shown. Determine the moments M1 of F1, M2 of F2, and M3 of F3, all about point O. Use: F1 = 460 N, F2 = 360 N, F3 = 450 N, b= 455 mm, c = 240 mm. Answers: M1 = (0 i + 110000 j + 0 k) N·m M2 = (0 i + -86400 j + 162000 k) N·m M3 = (0 i + 0 j + 20500 k) N·m
Adi S.

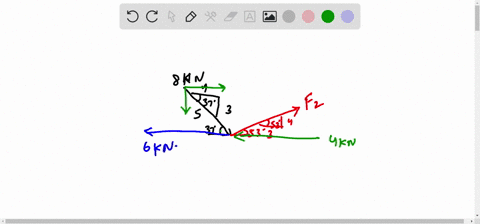

a. (10 points) Find the x and y components of the resultant force acting on the plate. b. (10 points) Find the value of F such that the resultant force is zeros F1 = 8 kN F4 = 6 kN F3 = 4 kN
Kritika M.

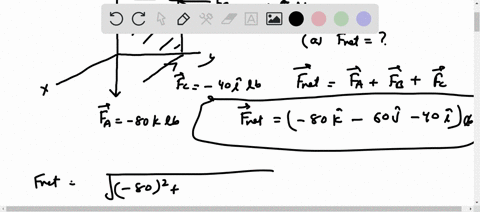

Problem Statement: #4: Replace the three forces acting on the thin plate by a wrench. Specify the magnitude of the force and couple moment for the wrench. Also specify the location of the point (y,z) where the wrench intersects the plate. The plate resides in the y-z plane. Problem Graphic: Plan: FB = {-60j} lb FC = {-40i} lb FA = {-80k} lb
