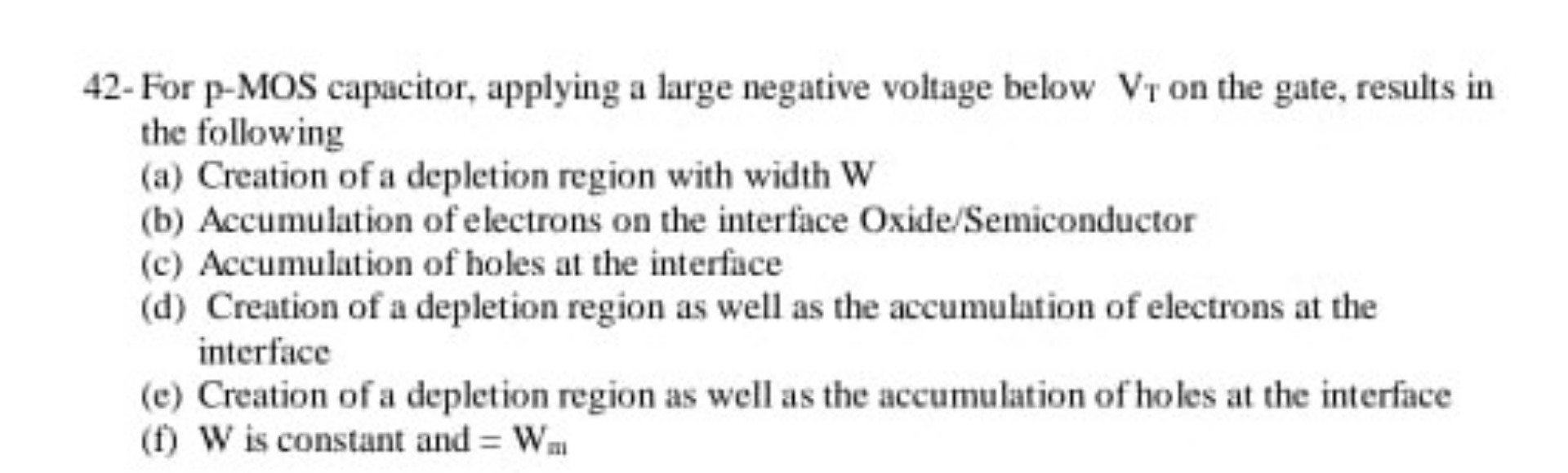

42- For p-MOS capacitor, applying a large negative voltage below VT on the gate, results in the following (a) Creation of a depletion region with width W (b) Accumulation of electrons on the interface Oxide/Semiconductor (c) Accumulation of holes at the interface (d) Creation of a depletion region as well as the accumulation of electrons at the interface (e) Creation of a depletion region as well as the accumulation of holes at the interface (f) W is constant and = Wm
Added by Tanaaz K.
Close
Step 1
A p-MOS capacitor consists of a p-type semiconductor substrate, an insulating oxide layer, and a metal gate. The gate voltage controls the charge distribution in the semiconductor. Show more…
Show all steps
Your feedback will help us improve your experience
Jennifer Stoner and 100 other Algebra educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

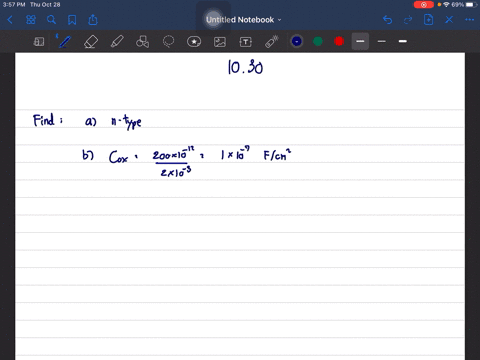

The high-frequency $C-V$ characteristic curve of a MOS capacitor is shown in Figure $\mathrm{P} 10.30 .$ The area of the device is $2 \times 10^{-3} \mathrm{~cm}^{2}$. The metal-semiconductor work function difference is $\phi_{m u}=-0.50 \mathrm{~V}$, the oxide is $\mathrm{SiO}_{2}$, the semiconductor is silicon, and the semiconductor doping concentration is $2 \times 10^{16} \mathrm{~cm}^{-3}$. (a) Is the semiconductor $\mathrm{n}$ or $\mathrm{p}$ type? $(b)$ What is the oxide thickness? $(c)$ What is the equivalent trapped oxide charge density? $(d)$ Determine the flat-band capacitance.
3.(18) The energy band diagram of an ideal MOS capacitor structure with oxide thickness, tox = 0.2m, operating at the temperature T = 300K is sketched below. Note that the voltage caused band bending such that EF = Ei at the oxide-silicon interface. a) What is the surface potential, ϕs ? b) Sketch the electrostatic potential, ϕ, in the semiconductor as a function of the position, x. c) Sketch the electric field, E, in the semiconductor as a function of the position, x. d) What is the electron concentration at the oxide-silicon interface? e) Roughly sketch the electron concentration, n versus position, x, in the semiconductor. f) What is the doping level of the bulk?
Adi S.

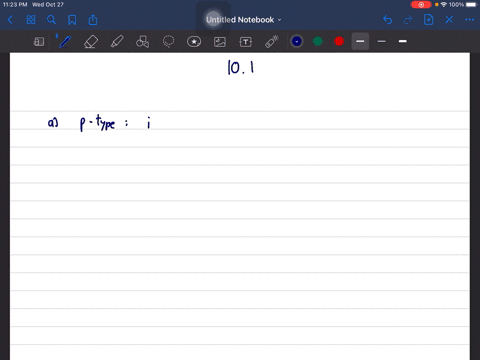

The de charge distributions of four ideal MOS capacitors are shown in Figure $\mathrm{P} 10.1$. For each case: $(a)$ Is the semiconductor $\mathrm{n}$ or $\mathrm{p}$ type $?(b)$ Is the device biased in the accumulation, depletion, or inversion mode? ( $c$ ) Draw the energyband diagram in the semiconductor region.
