A \( 40 \Omega \) resistance is connected in parallel with a coil of inductance \( L \) and negligible resistance across a \( 200 \mathrm{~V}, 50 \mathrm{~Hz} \) supply and the supply current is found to be \( 8 \mathrm{~A} \). Draw a phasor diagram to scale and determine the inductance of the coil.
Added by Marco N.
Close
Step 1
First, we need to calculate the current through the resistor. Since the resistor is connected in parallel to the supply, the voltage across the resistor is the same as the supply voltage, which is 200V. Using Ohm's law (V = IR), we can find the current through the Show more…
Show all steps
Your feedback will help us improve your experience
Donald Albin and 61 other Microeconomics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

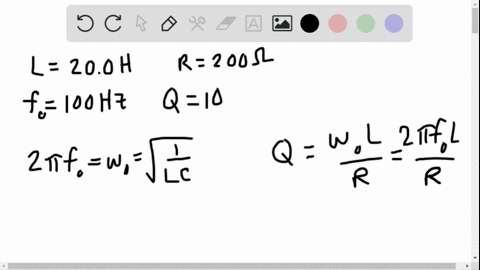

Suppose a coil has a self-inductance of $20.0 \mathrm{H}$ and a resistance of $200 \Omega$. What (a) capacitance and (b) resistance must be connected in series with the coil to produce a circuit that has a resonant frequency of $100 \mathrm{Hz}$ and a $Q$ of $10 ?$

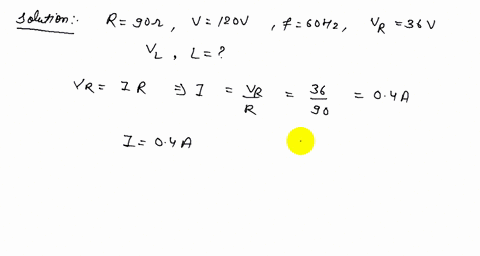

A coil of negligible resistance is connected in series with a $90-\Omega$ resistor across a 120-V, 60-Hz line. A voltmeter reads $36 \mathrm{~V}$ across the resistance. Find the voltage across the coil and the inductance of the coil.
