(a) Is the magnitude of the field greater at A or at B? EA = EBEA < EB EA > EB (b) What is at B? N/C --Direction-- up down (c*) Is the potential greater at A or at B? VA > VBVA = VB VA < VB
Added by Luc-A C.
Step 1
To answer the questions step by step, we need to analyze the electric field and electric potential at points A and B. Show more…
Show all steps
Your feedback will help us improve your experience
Mahendra Kumar and 58 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

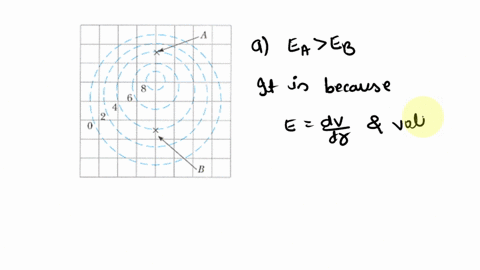

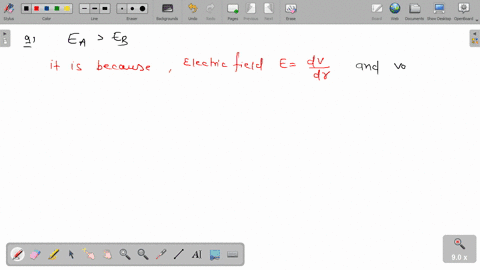

The figure below shows several equipotential lines, each labeled by its potential in volts. The distance between the lines of the square grid represents 1 cm. (a) Is the magnitude of the field bigger at A or at B? EA > EB EA < EB Why? (b) What is E at B? N/C --Direction-- (c) Represent what the field looks like by drawing at least eight field lines.
Mahendra K.
The figure below shows several equipotential lines each labeled by its potential in volts. The distance between the lines of the square grid represents 1.50 cm. (a) Is the magnitude of the field bigger at A or at B? EA > EB EA < EB Why? (b) What is E at B? N/C
Kshipra R.

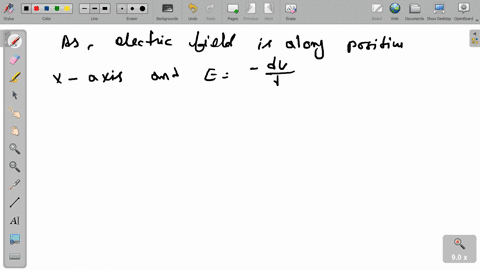

A uniform electric field pointing in positive $x$-direction exists in a region. Let $A$ be the origin, $B$ be the point on the $x$-axis at $x=+1 \mathrm{~cm}$ and $C$ be the point on the $y$-axis at $y=+1 \mathrm{~cm}$. Then, the potentials at the points $A, B$ and $C$ satisfy the condition (a) $v_{A}<V_{B}$ (b) $V_{A}>V_{B}$ (c) $V_{A}<V_{C}$ (d) $V_{A}>V_{C}$
