A temperature measurement is made with a thermocouple. The result is shown below. Can you calculate the time constant of the thermocouple?
Added by Lori G.
Close
Step 1
To calculate the time constant of the thermocouple, we need to analyze the temperature measurements over time. Show more…
Show all steps
Your feedback will help us improve your experience
Hunza Gilgit and 85 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

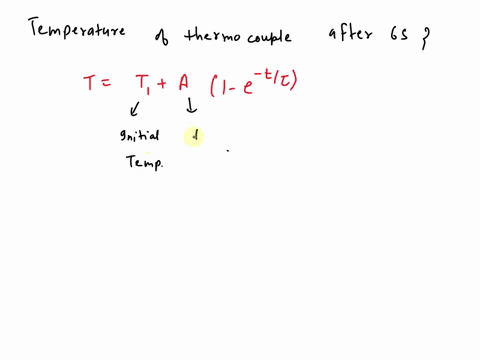

A certain thermocouple has a specific time constant of 2sec. If the process temperature changes abruptly from 800 to 900°C, find the temperature reading of thermocouple after 6sec
Madhur L.
A thermocouple is formed by soldering end-to-end wires of diameter 0.5 mm. The thermal diffusivity of the material is α = 5.3× 10?6 m2 s −1 , and its conductivity is 19.1 W m−1 K−1 . The probe initially at 30◦C is placed in a fluid at 600◦C to measure the temperature of the fluid. If the convective heat transfer coefficient between the wire and the fluid is h = 85 W m−2 K−1 , determine the time taken for the thermocouple to read 598◦C. How many thermocouple “time constants” are needed to reach 598◦C?
Adi S.
Thermocouple: (40 points) A thermocouple is immersed in a liquid to monitor its temperature fluctuations. Assume the thermocouple acts as a first-order system. The temperature fluctuations (in degrees Celsius) vary in time as T(t) = 50 + 25 cos(4t). The output of the thermocouple transducer system (in V) is linearly proportional to temperature and has a static sensitivity of 2 mV/°C. A step-input calibration of the system reveals that its rise time is 4.6 s. Determine: (a) Time constant (in seconds). (b) Output E(t) (in millivolts). (c) Time lag (in seconds) at ω = 0.2 rad/s.
