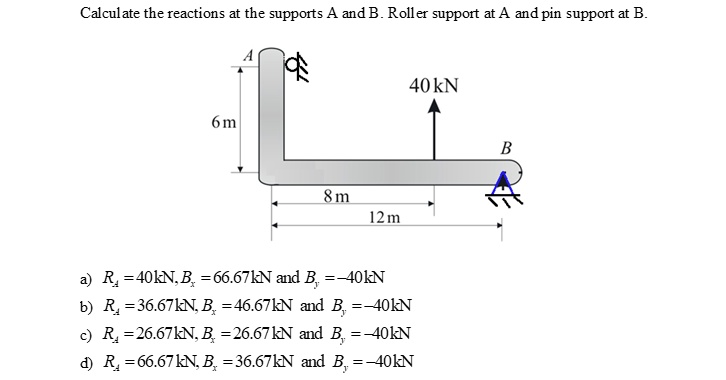

Calculate the reactions at the supports A and B. Roller support at A and pin support at B. A 6 m 40 kN B 8 m 12 m a) RA = 40kN, Bx = 66.67kN and By = -40kN b) RA = 36.67kN, Bx = 46.67kN and By = -40kN c) RA = 26.67kN, Bx = 26.67kN and By = -40kN d) RA = 66.67kN, Bx = 36.67kN and By = -40kN

          Calculate the reactions at the supports A and B. Roller support at A and pin support at B.

A
6 m
40 kN
B
8 m
12 m

a) RA = 40kN, Bx = 66.67kN and By = -40kN
b) RA = 36.67kN, Bx = 46.67kN and By = -40kN
c) RA = 26.67kN, Bx = 26.67kN and By = -40kN
d) RA = 66.67kN, Bx = 36.67kN and By = -40kN

Calculate the reactions at the supports A and B. Roller support at A and pin support at B.

A
6 m
40 kN
B
8 m
12 m

a) RA = 40kN, Bx = 66.67kN and By = -40kN
b) RA = 36.67kN, Bx = 46.67kN and By = -40kN
c) RA = 26.67kN, Bx = 26.67kN and By = -40kN
d) RA = 66.67kN, Bx = 36.67kN and By = -40kN
