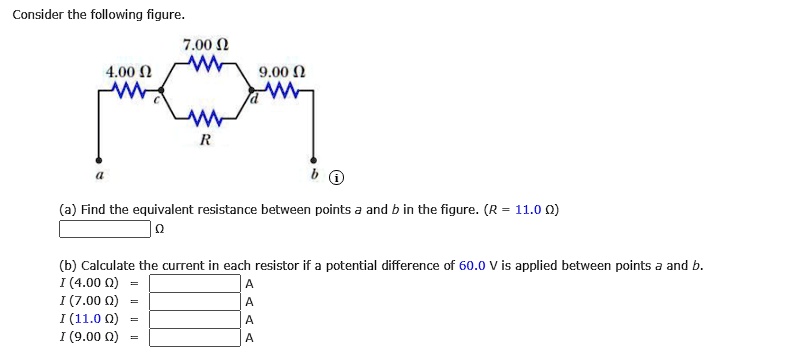

Consider the following figure. 4.00 ? 7.00 ? 9.00 ? c d R a b (a) Find the equivalent resistance between points a and b in the figure. (R = 11.0 ?) (b) Calculate the current in each resistor if a potential difference of 60.0 V is applied between points a and b. I (4.00 ?) = I (7.00 ?) = I (11.0 ?) = I (9.00 ?) =

          Consider the following figure.
4.00 ?
7.00 ?
9.00 ?
c
d
R
a
b
(a) Find the equivalent resistance between points a and b in the figure. (R = 11.0 ?)
(b) Calculate the current in each resistor if a potential difference of 60.0 V is applied between points a and b.
I (4.00 ?) =
I (7.00 ?) =
I (11.0 ?) =
I (9.00 ?) =

Consider the following figure.
4.00 ?
7.00 ?
9.00 ?
c
d
R
a
b
(a) Find the equivalent resistance between points a and b in the figure. (R = 11.0 ?)
(b) Calculate the current in each resistor if a potential difference of 60.0 V is applied between points a and b.
I (4.00 ?) =
I (7.00 ?) =
I (11.0 ?) =
I (9.00 ?) =

Added by Sandra S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Ivan Kochetkov

04/08/2023

Step 1

We can see that the 4.00 Ω and 9.00 Ω resistors are in parallel, and the 7.00 Ω and 2.00 Ω resistors are in series. Show more…

Show all steps

Thanks for your feedback!

Consider the following figure (a) Find the equivalent resistance between points a and b in the figure: (R = 11.0 ̐) (b) Calculate the current in each resistor if a potential difference of 60.0 V is applied between points a and b. I (4.00 ̐) I (7.00 ̐) I (11.0 ̐) I (9.00 ̐)
