Consider the following sequential program that should be implemented as a hardware component.
input(s)/(o)utputs: u,w,y, dx,i
temporary variables: u1,u2, u3, u4, u5, u6, y1
u1=u**dx;
u2=5**w;
u3=3**y;
y1=i**dx;
w=w+dx;
u4=u1**u2;
u5=dx**u3;
y=y+y1;
u6=u-u4;
u=u6-u5;
Assume each multiplication takes 4 clock cycles and each addition or subtraction takes 1 clock cycle. Compute the ASAP schedule to determine the minimum execution time. Compute the ALAP schedule based on the minimum execution time.
Assume there are one 2-input multiplier, which is pipelined into 4 stages, and one 2-input adder/subtractor, which is not pipelined. Perform a resource-constrained scheduling using the mobility computed from the results of 1.
Determine variable lifetimes and bind variables to as few registers as possible. (Note: you don't need to consider connection cost.)

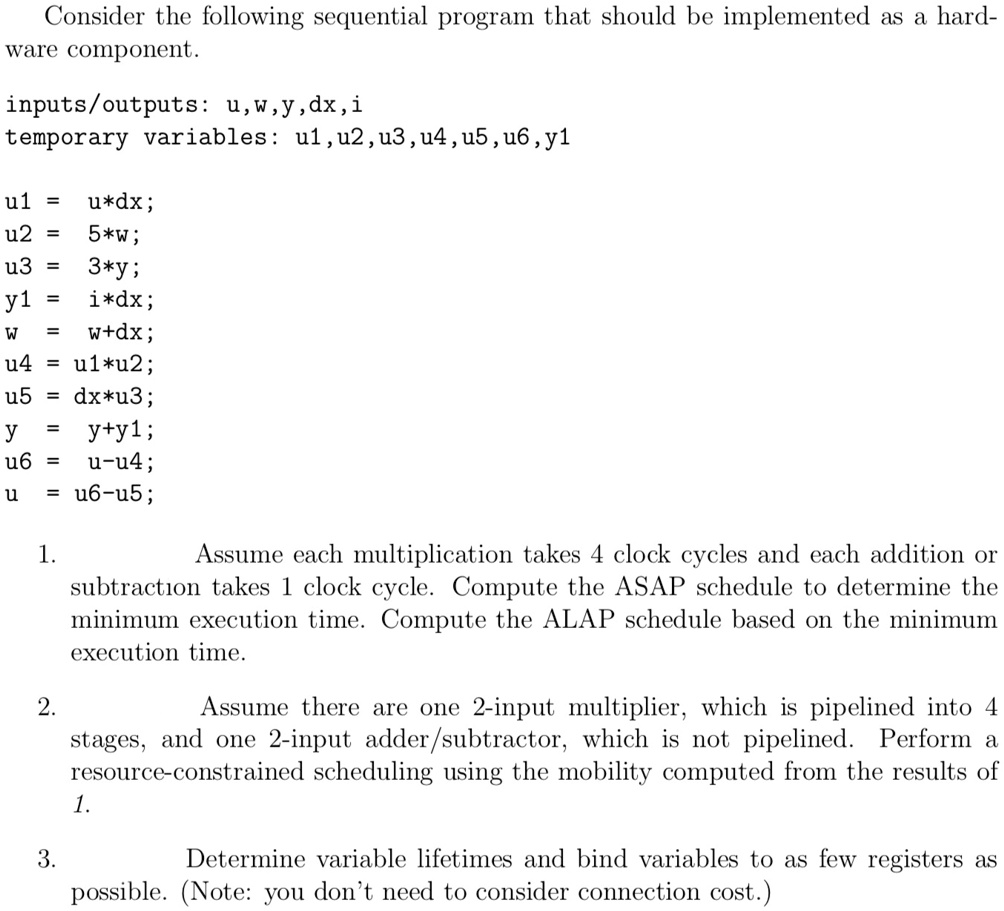

Consider the following sequential program that should be implemented as a hard- ware component.
inputs/outputs: u,w,y,dx,i temporary variables: u1,u2,u3,u4,u5,u6,y1
u1 = u*dx; u2 = 5*w; u3 3*y; y1 = i*dx; W = w+dx; u4 u1*u2; u5 = dx*u3; y = y+y1; u6 = u-u4; u = u6-u5;
1. Assume each multiplication takes 4 clock cycles and each addition or subtraction takes 1 clock cycle. Compute the ASAP schedule to determine the minimum execution time. Compute the ALAP schedule based on the minimum execution time.
2. Assume there are one 2-input multiplier, which is pipelined into 4 stages, and one 2-input adder/subtractor, which is not pipelined. Perform a resource-constrained scheduling using the mobility computed from the results of 1.
3. Determine variable lifetimes and bind variables to as few registers as possible. (Note: you don't need to consider connection cost.)
