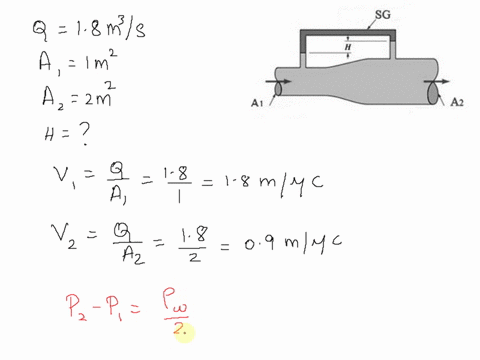

Current Attempt in Progress Water at 20°C flows steadily through the variable area pipe shown in the figure below with negligible viscous effects. Area $A_1 = 0.054$ m$^2$, area $A_2 = 0.069$ m$^2$, the density of the manometer fluid is $\rho = 400$ kg/m$^3$.

          Current Attempt in Progress
Water at 20°C flows steadily through the variable area pipe shown in the figure below with negligible viscous effects. Area $A_1 = 0.054$
m$^2$, area $A_2 = 0.069$ m$^2$, the density of the manometer fluid is $\rho = 400$ kg/m$^3$.

Current Attempt in Progress
Water at 20°C flows steadily through the variable area pipe shown in the figure below with negligible viscous effects. Area A1 = 0.054
m^2, area A2 = 0.069 m^2, the density of the manometer fluid is ρ = 400 kg/m^3.

Added by Nicholas S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sonu L

Step 1

- Flow rate, $ Q = 0.42 \, \text{m}^3/\text{s} $ - Area $ A_1 = 0.054 \, \text{m}^2 $ - Area $ A_2 = 0.069 \, \text{m}^2 $ - Density of manometer fluid, $ \rho_m = 400 \, \text{kg/m}^3 $ - Density of water, $ \rho_w = 1000 \, \text{kg/m}^3 $ Show more…

Show all steps

Thanks for your feedback!

Current Attempt in Progress: Water at 20°C flows steadily through the variable area pipe shown in the figure below with negligible viscous effects. Area A₁ = 0.054 m², area A₂ = 0.069 m², the density of the manometer fluid is p = 400 kg/m³. Determine the manometer reading, H, if the flow rate is 0.42 m³/s.
