(e) A square threaded bolt of root diameter \( 22.5 \mathrm{~mm} \) and pitth \( 5 \mathrm{~mm} \) is tightened by screwing a nut. whose mean diameter of bearing surface is \( 50 \mathrm{~mm} \) If the co.efficient of friction for the nut and bolt is 0.1 and for the nut and the bearing surface is 0.16 . Find the force required at the end of the spanner \( 500 \mathrm{mmm} \) long when the load on the bolt is \( 10 \mathrm{KN} \). \[ \tan \theta=\mu \]
Added by Celia T.
Close
Step 1
- Given: root (minor) diameter = 22.5 mm, pitch = 5 mm ⇒ mean thread diameter d_m = root + p/2 = 22.5 + 2.5 = 25.0 mm = 0.025 m. - Lead = 5 mm. Lead angle tanλ = lead/(π d_m) = 5/(π·25) = 0.063662. - Friction coefficient on threads μ = 0.10. Use screw torque Show more…
Show all steps
Your feedback will help us improve your experience
Ahmet Yavas and 85 other Calculus 1 / AB educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

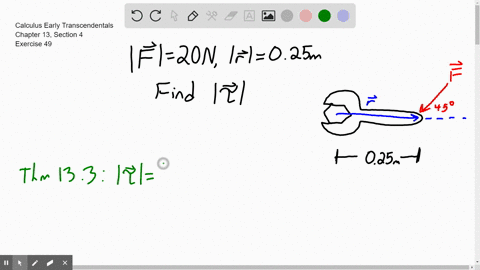

Tightening a bolt Suppose you apply a force of $20 \mathrm{N}$ to a 0.25 -meter-long wrench attached to a bolt in a direction perpendicular to the bolt. Determine the magnitude of the torque when the force is applied at an angle of $45^{\circ}$ to the wrench.
Vectors and the Geometry of Space
Cross Products

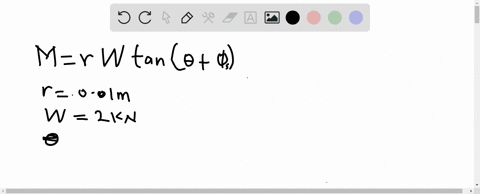

If the required clamping force at the board $A$ is to be $2 \mathrm{kN}$, determine the torque $M$ that must be applied to the screw to tighten it down. The square-threaded screw has a mean radius of $10 \mathrm{mm}$ and a lead of $3 \mathrm{mm}$, and the coefficient of static friction is $\mu_{x}=0.35$.
If the required clamping force at the board $A$ is to be $2 \mathrm{kN}$, determine the torque $M$ that must be applied to the screw to tighten it down. The square-threaded screw has a mean radius of $10 \mathrm{mm}$ and a lead of $3 \mathrm{mm}$, and the coefficient of static friction is $\mu_{s}=0.35$
