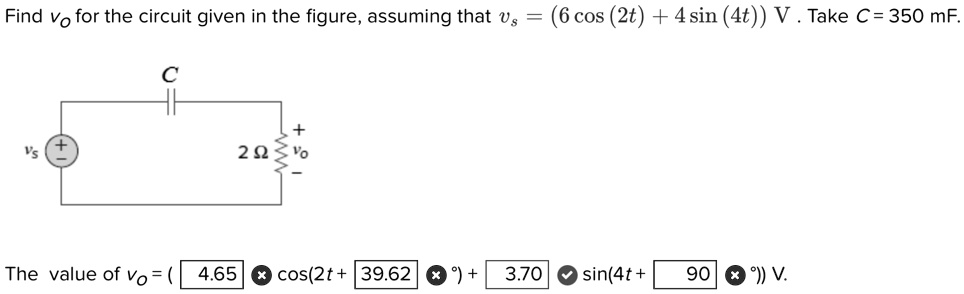

Find v_(O) for the circuit given in the figure, assuming that v_(s)=(6cos(2t)+4sin(4t))V. Take C=350mF. The value of (x) + ") V. c 20 The value of vo= ( 4.65 cos(2t+ 39.62 ) + 3.70 O sin(4t+ 90 ) V.
Added by Gema Q.
Close
Step 1
The output voltage vo is taken across the capacitor C. Show more…
Show all steps
Your feedback will help us improve your experience
Sai Sai and 82 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

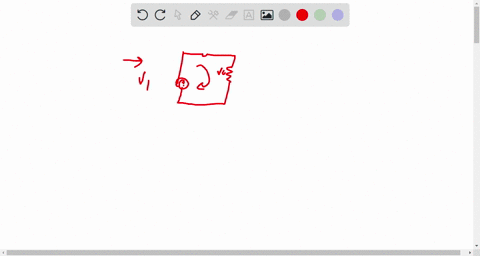

Consider the circuit in Fig. 1, assume that the circuit is operating at steady state and that v1=20sin(1000t-10°) V v2=10sin(6000t+25°) V Find vo
Sai S.
A multiloop circuit is shown in the figure. Some circuit quantities are not labeled. Find the value of I2 as shown in the figure. Your answer: A) +0.3A B) -0.1A C) +0.5A D) +0.1A E) -0.3A
Madhur L.

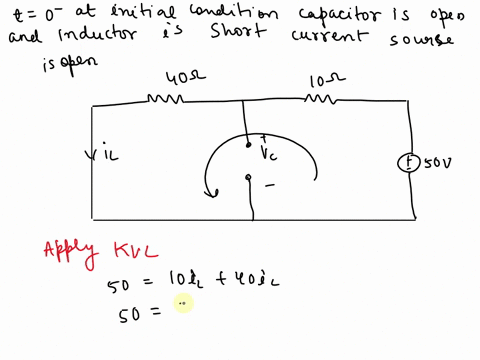

Consider the circuit in Fig. 8.79. Find vL(0+) and vC(0+). 40 ̦ 10 ̦ + vC + vL 2u(t) 0.5 H 1 F 50 V
Supreeta N.
