For the circuit in Fig. 1.3, use the Thevenin equivalent across terminals ab to find the voltage

Question

Shaiju T · Answer

Hello students, so in this question as, as there is, as there, there is, as there is, as there i

Adi S · Answer

In this problem we have to find out Thevenin&#x27;s equivalent. First we have to find out V Thevenin

Madhur L · Answer

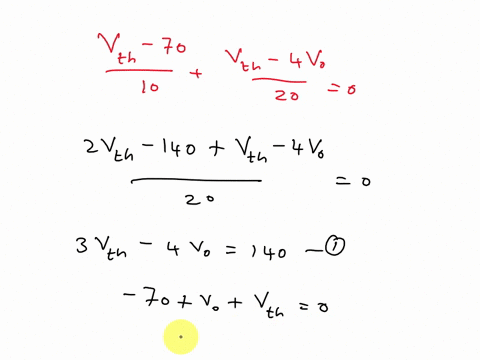

Hi, let&#x27;s see at the node voltage we have Vth -70 by 10 plus Vth -4V0 by 20 equal to 0 that is 2

Adi S · Answer

Let us use the heaven to convert the given circuit. So according to the given circuit, let us ap

Sri K · Answer

So here in this question we are given the circuit. Here, this is 30 volt battery which is attach

For the circuit in Fig. 1.3, use the Thevenin equivalent across terminals ab to find the voltage $V_o$ across the 8 $\Omega$ resistor. Note, you need to find the Thevenin equivalent to the left of the 8 $\Omega$ resistor and then use it to find the voltage across the 8 $\Omega$ resistor.
