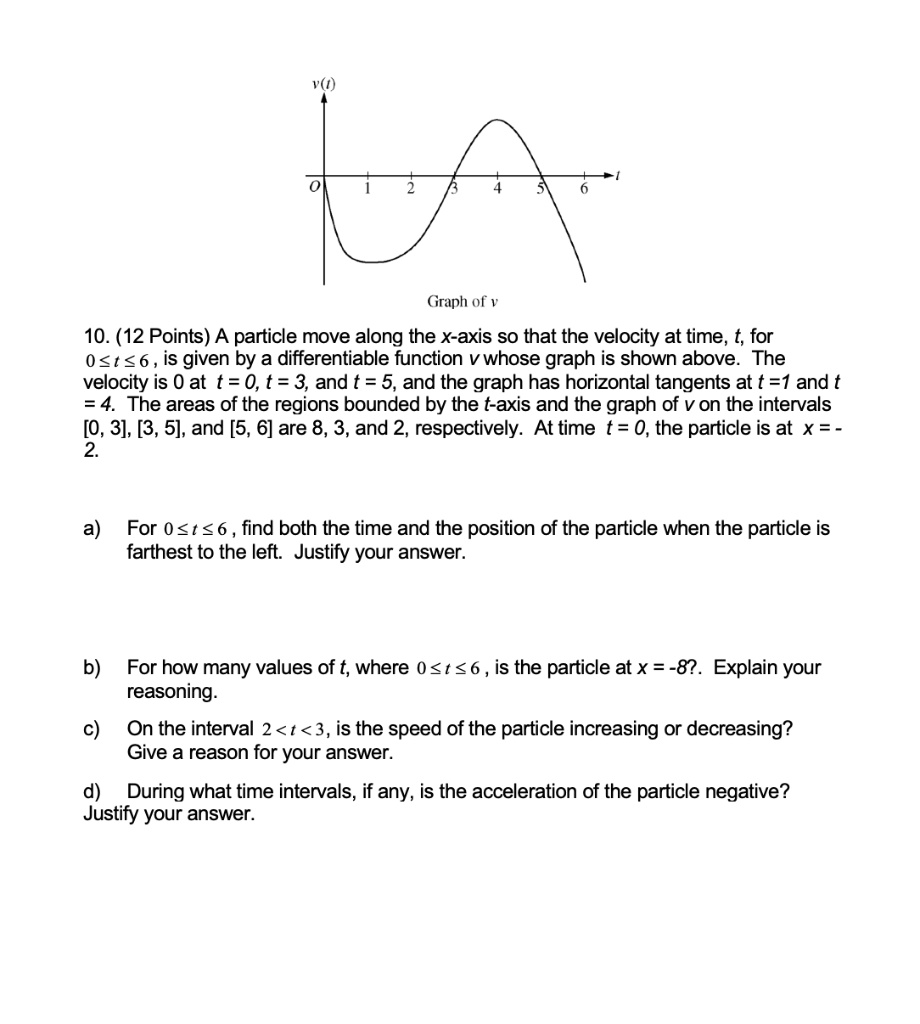

Graph of v 10. (12 Points) A particle move along the x-axis so that the velocity at time, t, for 0 ? t ? 6, is given by a differentiable function v whose graph is shown above. The velocity is 0 at t = 0, t = 3, and t = 5, and the graph has horizontal tangents at t = 1 and t = 4. The areas of the regions bounded by the t-axis and the graph of v on the intervals [0, 3], [3, 5], and [5, 6] are 8, 3, and 2, respectively. At time t = 0, the particle is at x = -2. a) For 0 ? t ? 6, find both the time and the position of the particle when the particle is farthest to the left. Justify your answer. b) For how many values of t, where 0 ? t ? 6, is the particle at x = -8?. Explain your reasoning. c) On the interval 2 < t < 3, is the speed of the particle increasing or decreasing? Give a reason for your answer. d) During what time intervals, if any, is the acceleration of the particle negative? Justify your answer.

          Graph of v

10. (12 Points) A particle move along the x-axis so that the velocity at time, t, for 0 ? t ? 6, is given by a differentiable function v whose graph is shown above. The velocity is 0 at t = 0, t = 3, and t = 5, and the graph has horizontal tangents at t = 1 and t = 4. The areas of the regions bounded by the t-axis and the graph of v on the intervals [0, 3], [3, 5], and [5, 6] are 8, 3, and 2, respectively. At time t = 0, the particle is at x = -2.

a) For 0 ? t ? 6, find both the time and the position of the particle when the particle is farthest to the left. Justify your answer.

b) For how many values of t, where 0 ? t ? 6, is the particle at x = -8?. Explain your reasoning.

c) On the interval 2 < t < 3, is the speed of the particle increasing or decreasing? Give a reason for your answer.

d) During what time intervals, if any, is the acceleration of the particle negative? Justify your answer.
Show more…
Graph of v 10. (12 Points) A particle move along the x-axis so that the velocity at time, t, for 0 ? t ? 6, is given by a differentiable function v whose graph is shown above. The velocity is 0 at t = 0, t = 3, and t = 5, and the graph has horizontal tangents at t = 1 and t = 4. The areas of the regions bounded by the t-axis and the graph of v on the intervals [0, 3], [3, 5], and [5, 6] are 8, 3, and 2, respectively. At time t = 0, the particle is at x = -2. a) For 0 ? t ? 6, find both the time and the position of the particle when the particle is farthest to the left. Justify your answer. b) For how many values of t, where 0 ? t ? 6, is the particle at x = -8?. Explain your reasoning. c) On the interval 2 < t < 3, is the speed of the particle increasing or decreasing? Give a reason for your answer. d) During what time intervals, if any, is the acceleration of the particle negative? Justify your answer.

Added by Jason L.

Close

Calculus: Early Transcendentals
Calculus: Early Transcendentals
James Stewart 8th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
10. (12 Points) A particle move along the x-axis so that the velocity at time, t, for 0 ≤ t ≤ 6, is given by a differentiable function v whose graph is shown above. The velocity is 0 at t = 0, t = 3, and t = 5, and the graph has horizontal tangents at t = 1 and t = 4. The areas of the regions bounded by the t-axis and the graph of v on the intervals [0, 3], [3, 5], and [5, 6] are 8, 3, and 2, respectively. At time t = 0, the particle is at x = -2. a) For 0 ≤ t ≤ 6, find both the time and the position of the particle when the particle is farthest to the left. Justify your answer. b) For how many values of t, where 0 ≤ t ≤ 6, is the particle at x = -8?. Explain your reasoning. c) On the interval 2 < t < 3, is the speed of the particle increasing or decreasing? Give a reason for your answer. d) During what time intervals, if any, is the acceleration of the particle negative? Justify your answer.
Close icon
Play audio
Feedback
Powered by NumerAI
Danielle Fairburn David Collins
Jennifer Stoner verified

Nicole Smina and 63 other subject Calculus 1 / AB educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-
a-particle-moves-along-a-straight-line-the-graph-of-the-particles-position-xt-at-time-t-is-shown-above-for-0-x-6-the-graph-has-horizontal-tangents-at-t-1-and-t-5-and-a-point-of-inflection-at-t-2-for-w

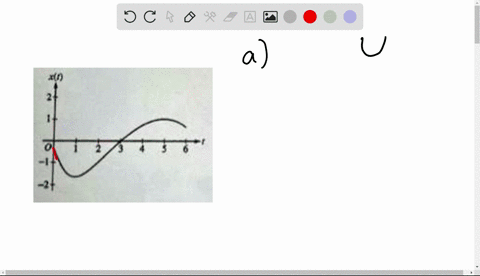

A particle moves along a straight line. The graph of the particle’s position x(t) at time t is shown above for 0 < x <6. The graph has horizontal tangents at t = 1 and t = 5 and a point of inflection at t = 2. For what values of t is the velocity of the particle increasing?

Thuc N.
a-particle-moves-along-the-x-axis-so-that-its-velocity-at-time-t-0-t-5is-given-by-vt-3t-1t-3-at-time-2-the-position-of-the-particle-is-x2-0-a-find-the-minimum-acceleration-of-the-particle-b-13313

A particle moves along the x-axis so that its velocity at time t, 0 < t < 5, is given by v(t) = 3(t - 1)(t - 3). At time 2, the position of the particle is x(2) = 0. a) Find the minimum acceleration of the particle. b) Find the total distance traveled by the particle. c) Find the average velocity of the particle over the interval 0 < t < 5. The function f is defined by f(x) = √(25 - x^2) for -5 < x < 5. a) Find f'(x). b) Write an equation for the line tangent to the graph of f at x = -3 for -5 < x < -3. Let g be the function defined by g(x) = {0, for -3 < x < 5. Is g continuous at x = -3? Use the definition of continuity to explain your answer. Find the value of ∫(√(5 - x^2)) dx.

Carson M.
a-particle-moves-along-straight-line-_-the-graph-of-the-particles-position-xt-at-tlme-t-is-shown-below-for-0t-6-the-graph-has-horizontal-tangents-at-t-andt-seconds-and-point-of-inflection-2t-22162

A particle moves along a straight line. The graph of the particle's position x(t) at time t is shown below for 0 < t < 6. The graph has horizontal tangents at t = 1 and t = 5 seconds and a point of inflection at t = 2 seconds. For what values of t is the velocity of the particle increasing? For what values of t is the speed of the particle increasing? Give a reason for each answer.

Andrew N.
*

Recommended Textbooks

-
Calculus: Early Transcendentals

Calculus: Early Transcendentals

James Stewart 8th Edition
achievement 1,172 solutions
Calculus: Early Transcendentals

Calculus: Early Transcendentals

William Briggs, Lyle Cochran, Bernard Gillet 3rd Edition
achievement 1,664 solutions
Thomas Calculus

Thomas Calculus

George B. Thomas Jr. 14th Edition
achievement 1,196 solutions
*

Transcript

-
00:01 All right, so we have a graph of velocity versus time, and we're told that the areas here, that this one is equal to eight, and then we have this one equal to three, and this one is equal to two.
00:20 And let's see, we're told that the particle is moving along the x -axis, and at time t equals zero, the particle is at x -equal.
00:34 Negative 2.
00:35 So when is the particle for this to the left? so basically we know that the position function is the integration of the velocity function with respect to time, which is equal to the area under the curve.
00:53 So from t equals 0 to 3, we go from negative 2 and then the change in position is going to be negative 8.
01:03 So it's going to be at negative 10.
01:06 And the velocity is negative this whole interval, so it's continually decreasing.
01:11 Then from 3 to 5, we have a change of 3.
01:18 So then the particle goes from negative 10 to plus 3 is negative 7.
01:23 And then from t equals 5 to 6, we have a decrease in position by 2, so negative 9.
01:31 So furthest to the left, meaning the most negative, is right here at negative 10 at time t equals three.
01:40 You only have to consider the end points of the intervals because velocity is either entirely increasing or entirely decreasing in those intervals.
01:51 That's answer choice.
01:53 That's part a...
