Question

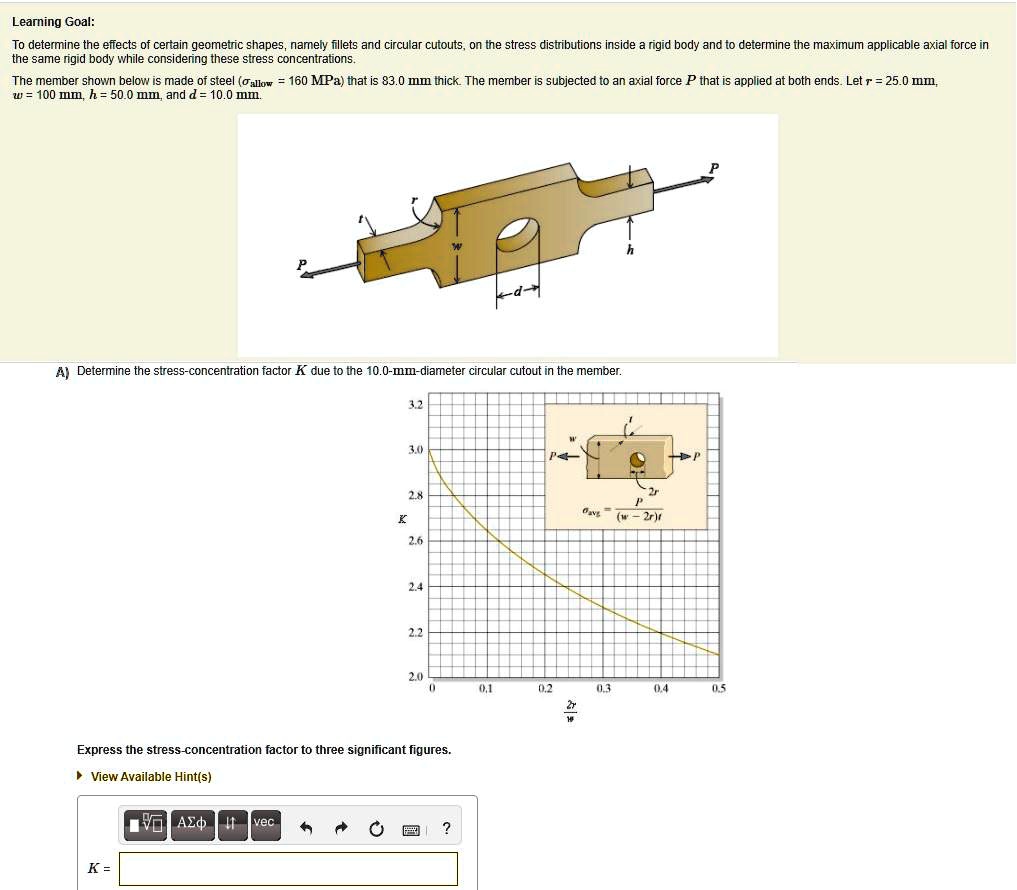

Learning Goal: To determine the effects of certain geometric shapes, namely fillets and circular cutouts, on the stress distributions inside a rigid body and to determine the maximum applicable axial force in the same rigid body while considering these stress concentrations. The member shown below is made of steel ($\sigma_{allow} = 160$ MPa) that is 83.0 mm thick. The member is subjected to an axial force $P$ that is applied at both ends. Let $r = 25.0$ mm, $w = 100$ mm, $h = 50.0$ mm, and $d = 10.0$ mm. A) Determine the stress-concentration factor $K$ due to the 10.0-mm-diameter circular cutout in the member. Express the stress-concentration factor to three significant figures. $K = $

          Learning Goal:
To determine the effects of certain geometric shapes, namely fillets and circular cutouts, on the stress distributions inside a rigid body and to determine the maximum applicable axial force in
the same rigid body while considering these stress concentrations.
The member shown below is made of steel ($\sigma_{allow} = 160$ MPa) that is 83.0 mm thick. The member is subjected to an axial force $P$ that is applied at both ends. Let $r = 25.0$ mm,
$w = 100$ mm, $h = 50.0$ mm, and $d = 10.0$ mm.
A) Determine the stress-concentration factor $K$ due to the 10.0-mm-diameter circular cutout in the member.
Express the stress-concentration factor to three significant figures.
$K = $

Learning Goal:
To determine the effects of certain geometric shapes, namely fillets and circular cutouts, on the stress distributions inside a rigid body and to determine the maximum applicable axial force in
the same rigid body while considering these stress concentrations.
The member shown below is made of steel (σallow = 160 MPa) that is 83.0 mm thick. The member is subjected to an axial force P that is applied at both ends. Let r = 25.0 mm,
w = 100 mm, h = 50.0 mm, and d = 10.0 mm.
A) Determine the stress-concentration factor K due to the 10.0-mm-diameter circular cutout in the member.
Express the stress-concentration factor to three significant figures.
K =
