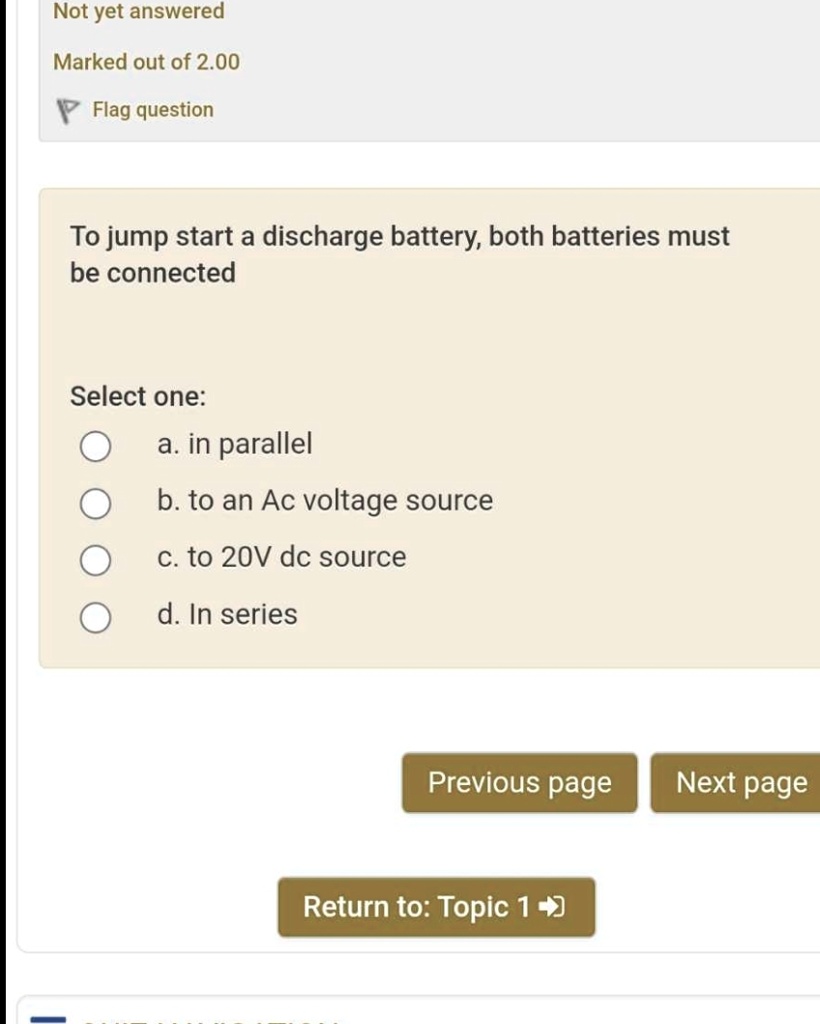

Not yet answered Marked out of 2.00 Flag question To jump start a discharge battery, both batteries must be connected Select one: a. in parallel b. to an Ac voltage source c. to 20V dc source d. In series Previous page Next page Return to: Topic 1
Added by Jeremy G.
Close
Step 1
This is because connecting batteries in parallel allows the current to flow from the charged battery to the discharged battery, providing the necessary boost to start the car. Show more…
Show all steps
Your feedback will help us improve your experience
Mahendra Kumar and 95 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

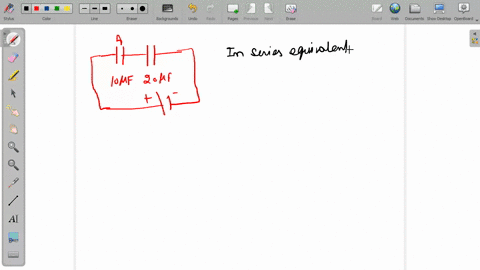

Two capacitors $A$ and $B$ having capacitances $10 \mu \mathrm{F}$ and $20 \mu \mathrm{F}$ are connected in series with a $12 \mathrm{~V}$ battery. The ratio of the charges on $A$ and $B$ is : (a) $0.5: 1$ (b) $1: 1$ (c) $2: 1$ (d) $2: 4$
The number of dry cells, each of e.m.f. 1.5 volt and internal resistance 0.5 ohm that must be joined in series with a resistance of 20 ohm so as to send a current of 0.6 ampere through the circuit is (a) 2 (b) 8 (c) 10 (d) 12
Deepak J.

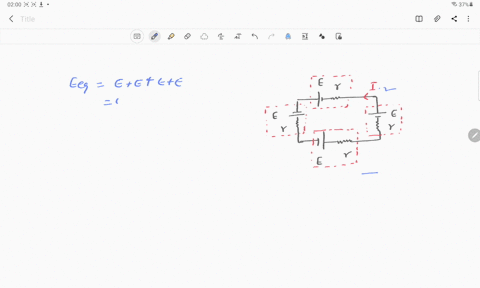

Figure shows four batteries of emf $E$ and internal resistance ' $r^{\prime}$ are connected in series. The voltage across each battery is: (a) $2 \mathrm{~V}$ (b) $0 \mathrm{~V}$ (c) $1.5 \mathrm{~V}$ (d) $0.75 \mathrm{~V}$
