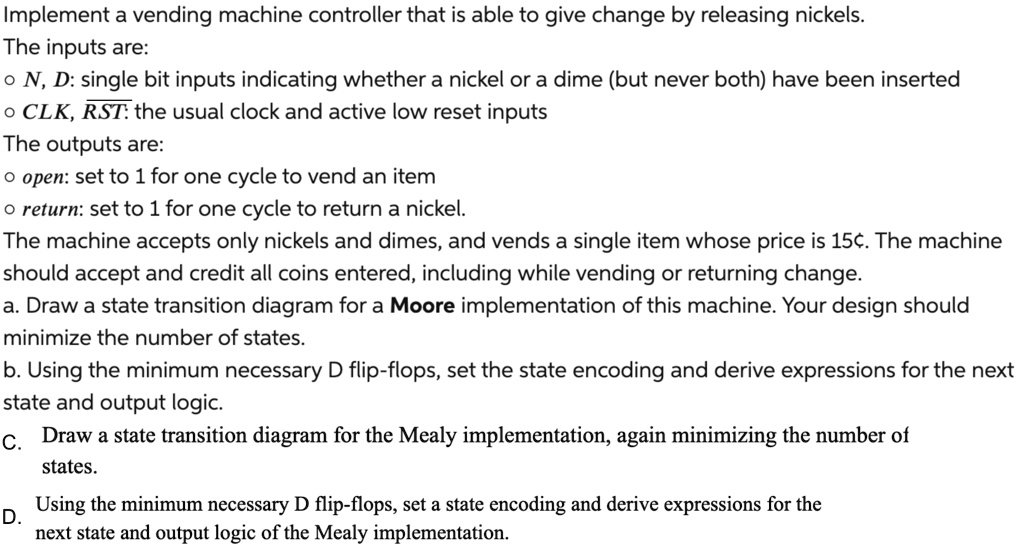

Implement a vending machine controller that is able to give change by releasing nickels. The inputs are: ? N, D: single bit inputs indicating whether a nickel or a dime (but never both) have been inserted ? CLK, ?R?S?T?: the usual clock and active low reset inputs The outputs are: ? open: set to 1 for one cycle to vend an item ? return: set to 1 for one cycle to return a nickel. The machine accepts only nickels and dimes, and vends a single item whose price is 15¢. The machine should accept and credit all coins entered, including while vending or returning change. a. Draw a state transition diagram for a Moore implementation of this machine. Your design should minimize the number of states. b. Using the minimum necessary D flip-flops, set the state encoding and derive expressions for the next state and output logic. C. Draw a state transition diagram for the Mealy implementation, again minimizing the number of states. D. Using the minimum necessary D flip-flops, set a state encoding and derive expressions for the next state and output logic of the Mealy implementation.
Added by Jackie M.
Close
Step 1
We can have 3 states: - State 0: No money inserted - State 1: 5 cents inserted - State 2: 10 cents inserted a. State Transition Diagram for Moore Implementation: - From State 0, if a nickel (N=1) is inserted, we move to State 1. If a dime (D=1) is inserted, we Show more…
Show all steps
