According to AGMA standards, contact stress numbers of pitting resistance for different types of gear teeth are calculated differently. Please select the right formula for each type of gear teeth. Equation a: $s_c = C_p \sqrt{\frac{W_t K_a K_m K_v K_s K_c}{FD_p l}}$ Equation b: $s_c = C_p \sqrt{\frac{W_t K_a K_m K_v K_s C_c C_{xc}}{FD_p l}}$ For helical gears, equation b should be used. For bevel gears, equation b should be used. For helical gears, equation a should be used. For bevel gears, equation a should be used. For spur gears, equation a should be used. For spur gears, equation b should be used.

          According to AGMA standards, contact stress numbers of pitting resistance for different types of gear teeth are calculated differently.
Please select the right formula for each type of gear teeth.
Equation a:
$s_c = C_p \sqrt{\frac{W_t K_a K_m K_v K_s K_c}{FD_p l}}$
Equation b:
$s_c = C_p \sqrt{\frac{W_t K_a K_m K_v K_s C_c C_{xc}}{FD_p l}}$
For helical gears, equation b should be used.
For bevel gears, equation b should be used.
For helical gears, equation a should be used.
For bevel gears, equation a should be used.
For spur gears, equation a should be used.
For spur gears, equation b should be used.
Show more…
According to AGMA standards, contact stress numbers of pitting resistance for different types of gear teeth are calculated differently. Please select the right formula for each type of gear teeth. Equation a: sc = Cp √((Wt Ka Km Kv Ks Kc)/(FDp l)) Equation b: sc = Cp √((Wt Ka Km Kv Ks Cc Cxc)/(FDp l)) For helical gears, equation b should be used. For bevel gears, equation b should be used. For helical gears, equation a should be used. For bevel gears, equation a should be used. For spur gears, equation a should be used. For spur gears, equation b should be used.

Added by Daniel S.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
please explain the answer According to AGMA standards,contact stress numbers of pitting resisance for different types of gear teeth are calculated differently Please select the right formula for each type of gear teeth. Equation a: W.K.K.KK. FDpl 5c= Equation b: W,K.K.K.C,Cxc sc=C rad For holical gears,equation b should be used For bevel gears,equation b should be used For helical gears,equation a should be used For bevel gears,equation a should be used For spur gears,equation a should be used For spur gears,equation b should be used
Close icon
Play audio
Feedback
Powered by NumerAI
David Collins Kathleen Carty
Jennifer Stoner verified

Madhur L and 78 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-
ii-gears-25-points-a-pair-of-spur-gears-with-involute-teeth-is-to-give-a-gear-ratio-of-41-the-arc-of-approach-is-not-to-be-less-than-the-circular-pitch-and-smaller-wheel-is-the-driverthe-ang-35033

Madhur L.
question-point-546-arutc-the-gearbox-is-to-be-designed-with-compound-reverted-gear-train-as-speed-increaser-it-is-needed-to-minimize-the-overall-gearbox-size-and-avoid-the-interference-probl-47337

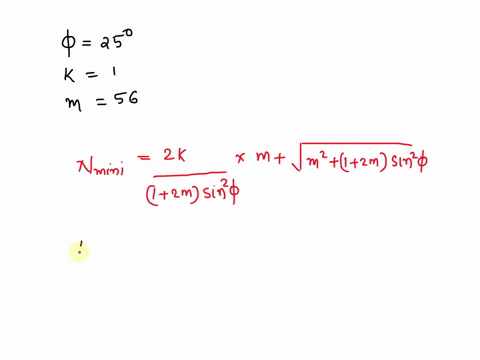

The gearbox is to be designed with a compound reverted gear train as a speed increaser. It is needed to minimize the overall gearbox size and avoid the interference problem in teeth. For this gearbox; a) Calculate appropriate teeth numbers to provide an exact 56:1 increase in speed. b) Calculate appropriate teeth numbers to provide an 56:1 (±3% tolerance) increase in speed. Given Data: k=1, pressure angle (ϕ)=25°
