PROBLEM 1 [15 points]: Assuming A is pinned and B is a roller, determine the following at point C: • Normal force [5 points] • Shear force [5 points] • Moment [5 points]
Added by Jimmy E.
Close
Step 1
Step 1: Draw the free body diagram (FBD) of the beam with point C as the focus. Show more…
Show all steps
Your feedback will help us improve your experience
Mahendra Rathore and 72 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
solve it plz
Mahendra R.

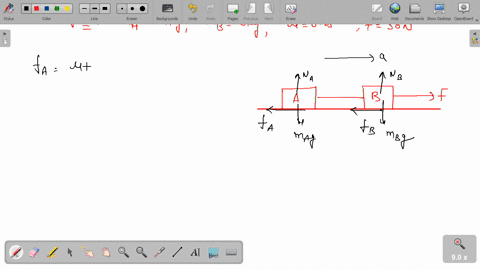

Two blocks, A and B, are connected by a massless string and slide on a horizontal surface as shown below. Block A has mass 4 kg and block B has mass 6 kg. A force F directed to the right and with magnitude 30 N is applied to block B. The coefficient of kinetic friction between the blocks and the surface supporting them is 0.25 for both blocks. (a) Find the acceleration of both blocks. (b) Find the tension in the string. (c) What should the magnitude of F be for both blocks to move to the right at constant speed?
Mahendra K.
I would really like help on how to solve this
Tarandeep S.
