Question

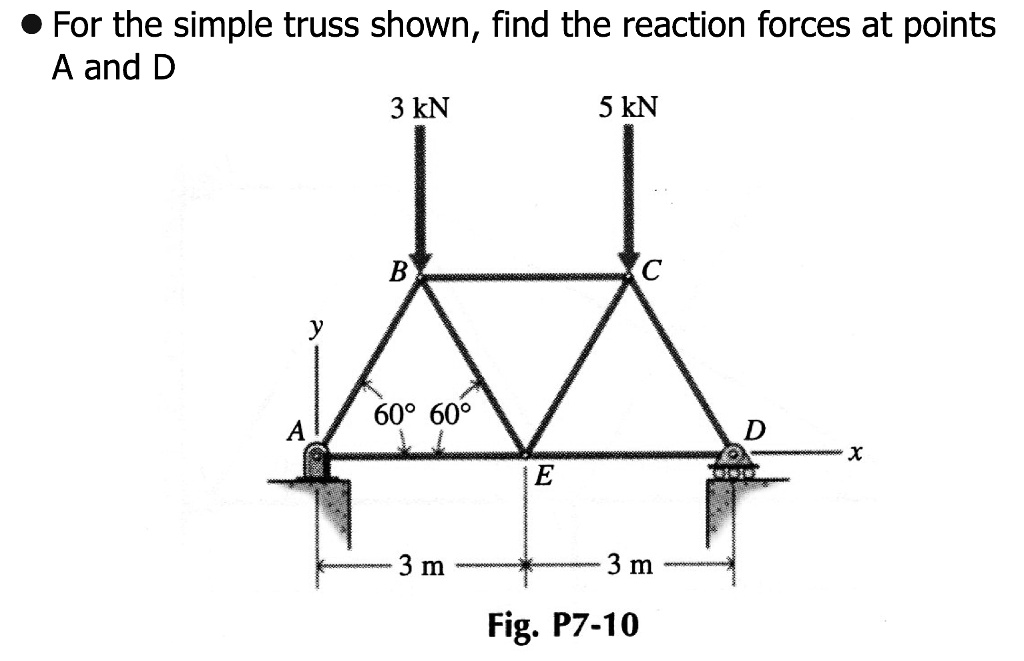

For the simple truss shown, find the reaction forces at points A and D 3 kN 5 kN B C y 60° 60° A D x E 3 m 3 m Fig. P7-10

          For the simple truss shown, find the reaction forces at points A and D
3 kN
5 kN
B
C
y
60° 60°
A
D
x
E
3 m
3 m
Fig. P7-10

Added by Michael L.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Mahendra Rathore

Step 1

However, since the description of the truss is not fully detailed in the question, I will assume a common scenario where the truss is a simple triangular truss with a horizontal bottom chord, vertical members at A and D, and a diagonal member connecting A and D. Show more…
