problem 5 use the various methods of reduction parallel series combinations of resistors source

Question

Supreeta N · Answer

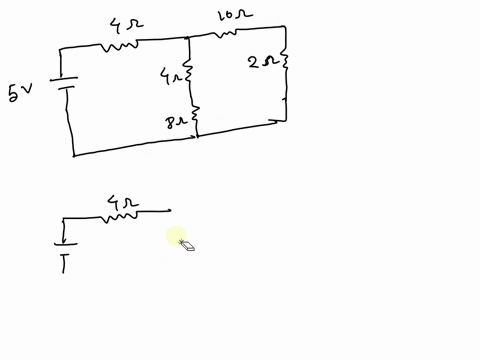

Hello student, here we are asked to reduce this circuit. So, to reduce it we have to redraw it.

Stephen Zaffke · Answer

If I have a circuit set up like this with some voltage and three resistors in series, the thing

Vishal Gupta · Answer

Hi, here in this given problem, in the first part of the problem we have to find the resistors w

Adi S · Answer

The given circuit can be redrawn as let&#x27;s redraw here this is a 4 ampere current here. Let&#x27;s see

Penny Riley · Answer

Find an expression for the equivalent resistance of three resistors connected and parallel. The

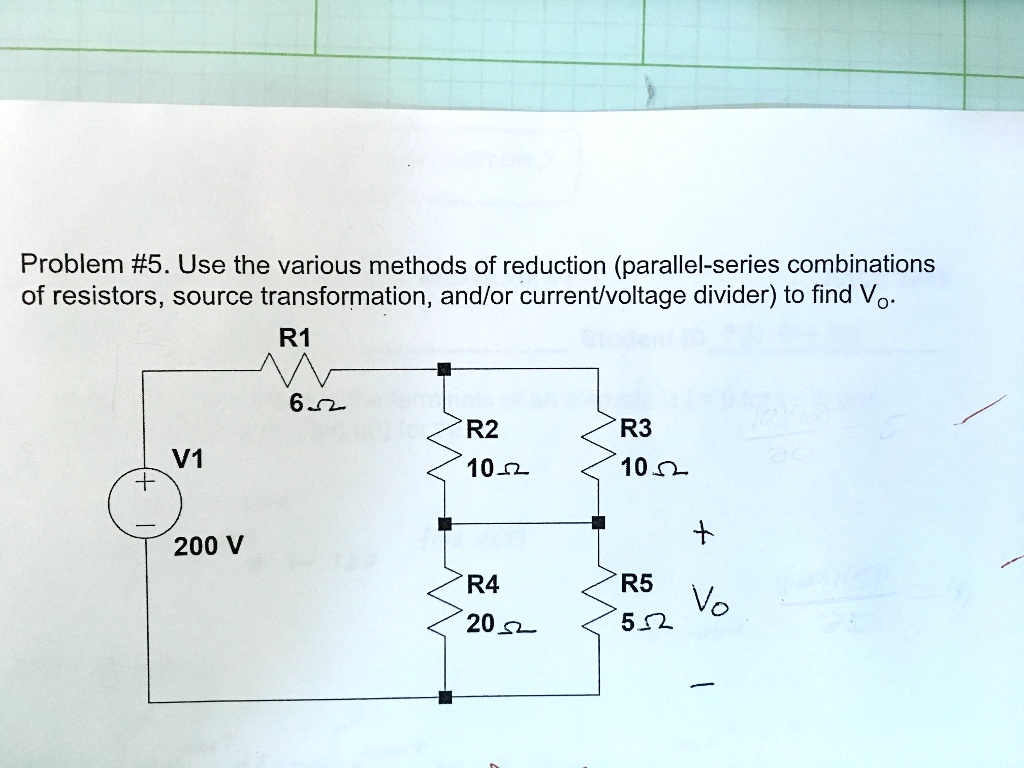

Problem #5. Use the various methods of reduction (parallel-series combinations of resistors, source transformation, and/or current/voltage divider) to find Vo R1 6 R2 10 R3 10 V1 + 200V R4 202 R5 Vo 52
