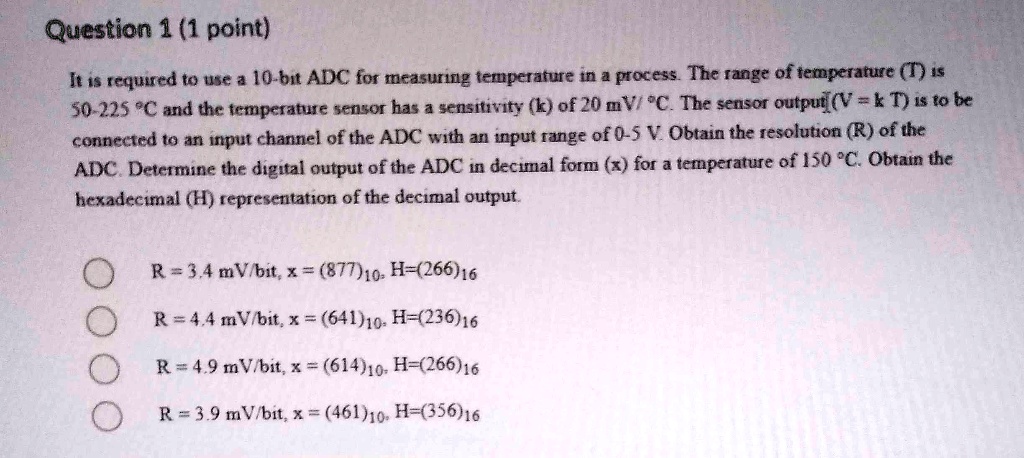

It is required to use a 10-bit ADC for measuring temperature in a process. The range of temperature (T) is 50-225 °C and the temperature sensor has a sensitivity (k) of 20 mV/ °C. The sensor output (V = k T) is to be connected to an input channel of the ADC with an input range of 0-5 V. Obtain the resolution (R) of the ADC. Determine the digital output of the ADC in decimal form (x) for a temperature of 150 °C. Obtain the hexadecimal (H) representation of the decimal output. R = 3.4 mV/bit, x = (877)10, H=(266)16 R = 4.4 mV/bit, x = (641)10, H=(236)16 R = 4.9 mV/bit, x = (614)10, H=(266)16 R = 3.9 mV/bit, x = (461)10, H=(356)16

          It is required to use a 10-bit ADC for measuring temperature in a process. The range of temperature (T) is 50-225 °C and the temperature sensor has a sensitivity (k) of 20 mV/ °C. The sensor output (V = k T) is to be connected to an input channel of the ADC with an input range of 0-5 V. Obtain the resolution (R) of the ADC. Determine the digital output of the ADC in decimal form (x) for a temperature of 150 °C. Obtain the hexadecimal (H) representation of the decimal output.

R = 3.4 mV/bit, x = (877)10, H=(266)16
R = 4.4 mV/bit, x = (641)10, H=(236)16
R = 4.9 mV/bit, x = (614)10, H=(266)16
R = 3.9 mV/bit, x = (461)10, H=(356)16

It is required to use a 10-bit ADC for measuring temperature in a process. The range of temperature (T) is 50-225 °C and the temperature sensor has a sensitivity (k) of 20 mV/ °C. The sensor output (V = k T) is to be connected to an input channel of the ADC with an input range of 0-5 V. Obtain the resolution (R) of the ADC. Determine the digital output of the ADC in decimal form (x) for a temperature of 150 °C. Obtain the hexadecimal (H) representation of the decimal output.

R = 3.4 mV/bit, x = (877)10, H=(266)16
R = 4.4 mV/bit, x = (641)10, H=(236)16
R = 4.9 mV/bit, x = (614)10, H=(266)16
R = 3.9 mV/bit, x = (461)10, H=(356)16
