1. Find the equivalent capacitance. 12µF AO 12µF C<sub>AB</sub> 12µF 12µF BO- 2. Find the equivalent inductance. AO 7mH 9mH 18mH L<sub>AB</sub>-> 4mH 10mH BO 3. Find V<sub>o</sub>(t) for t > 0. + 12V 40k? t=0 20k? 50µF = V<sub>o</sub>(t)
Added by Montserrat Z.
Close
Step 1
To find the equivalent capacitance, we need to determine the total capacitance when capacitors are connected in parallel and in series. In this case, we have three capacitors connected in series: 12uF, 12uF, and 12uF. The total capacitance for capacitors Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 76 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The equivalent capacitance of this circuit is 8
Adi S.
Shaiju T.

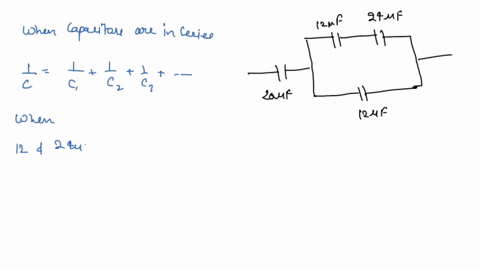

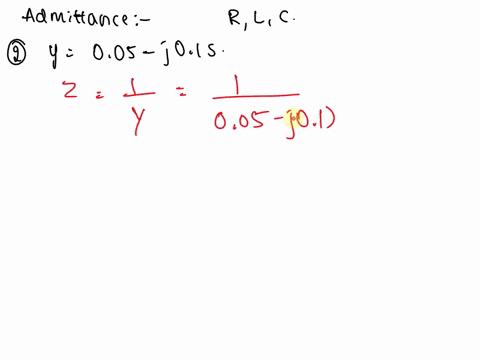

Calculate the resistance and inductance or capacitance in parallel for each of the following admittances, assuming the frequency to be 50 Hz: (a) 0.25 + j0.6 S (b) 0.05 - j0.1 S; (c) 0.8 ∠30° S; (d) 0.5 ∠-50° S. [Ans. 0.59 Ω, 2.23 mF; 20 Ω, 31.85 mH; 1.08 Ω, 5.13 mF; 1.29 Ω, 4.9 mH]
