Question

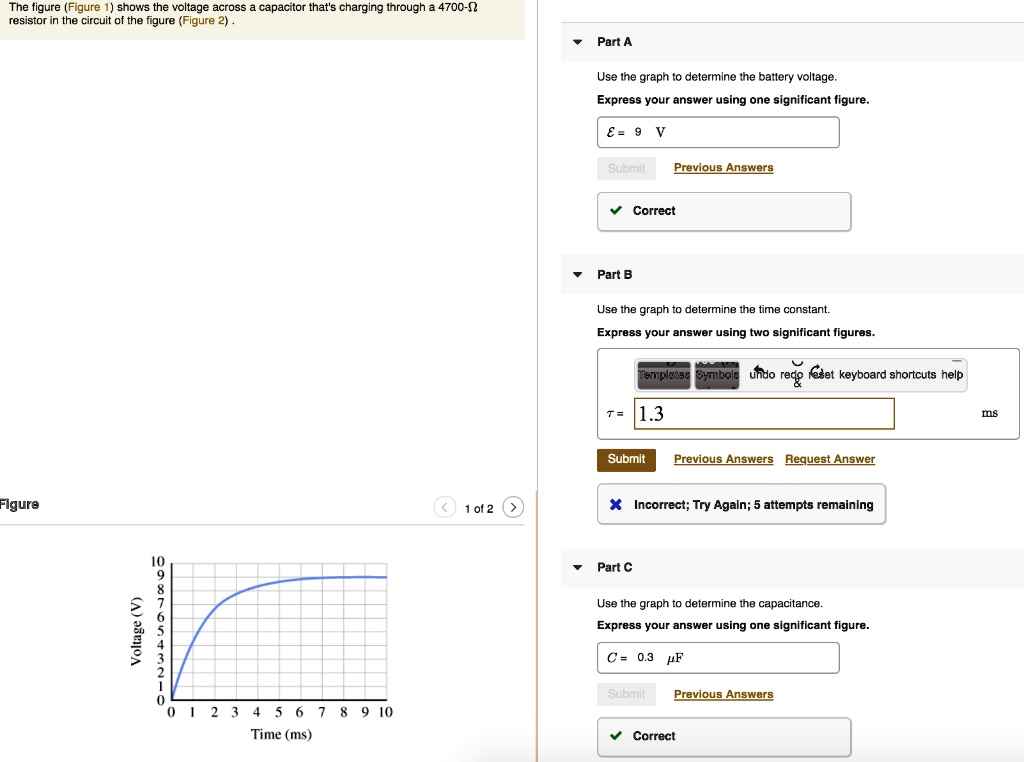

The figure (Figure 1) shows the voltage across a capacitor that's charging through a 4700-? resistor in the circuit of the figure (Figure 2). Part A Use the graph to determine the battery voltage. Express your answer using one significant figure. E = 9 V Correct Part B Use the graph to determine the time constant. Express your answer using two significant figures. ? = 1.3 ms Incorrect; Try Again; 3 attempts remaining Part C Use the graph to determine the capacitance. Express your answer using one significant figure. C = 0.3 ?F Correct

          The figure (Figure 1) shows the voltage across a capacitor that's charging through a 4700-? resistor in the circuit of the figure (Figure 2).

Part A
Use the graph to determine the battery voltage.
Express your answer using one significant figure.
E = 9 V
Correct

Part B
Use the graph to determine the time constant.
Express your answer using two significant figures.
? = 1.3 ms
Incorrect; Try Again; 3 attempts remaining

Part C
Use the graph to determine the capacitance.
Express your answer using one significant figure.
C = 0.3 ?F
Correct

The figure (Figure 1) shows the voltage across a capacitor that's charging through a 4700-? resistor in the circuit of the figure (Figure 2).

Part A
Use the graph to determine the battery voltage.
Express your answer using one significant figure.
E = 9 V
Correct

Part B
Use the graph to determine the time constant.
Express your answer using two significant figures.
? = 1.3 ms
Incorrect; Try Again; 3 attempts remaining

Part C
Use the graph to determine the capacitance.
Express your answer using one significant figure.
C = 0.3 ?F
Correct
