Question

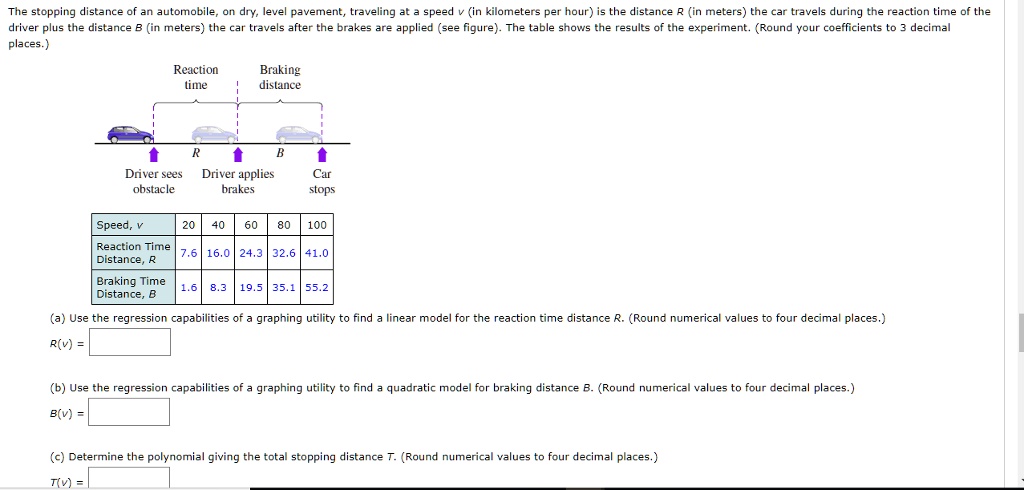

The stopping distance of an automobile, on dry, level pavement, traveling at a speed v (in kilometers per hour) is the distance R (in meters) the car travels during the reaction time of the driver plus the distance B (in meters) the car travels after the brakes are applied (see figure). The table shows the results of the experiment. (Round your coefficients to 3 decimal places.) Reaction time Braking distance R Driver sees obstacle Driver applies brakes B Car stops Speed, v 20 40 60 80 100 Reaction Time 7.6 16.0 24.3 32.6 41.0 Distance, R Braking Time 1.6 8.3 19.5 35.1 55.2 Distance, B (a) Use the regression capabilities of a graphing utility to find a linear model for the reaction time distance R. (Round numerical values to four decimal places.) R(v) = (b) Use the regression capabilities of a graphing utility to find a quadratic model for braking distance B. (Round numerical values to four decimal places.) B(v) = (c) Determine the polynomial giving the total stopping distance T. (Round numerical values to four decimal places.) T(v) =

          The stopping distance of an automobile, on dry, level pavement, traveling at a speed v (in kilometers per hour) is the distance R (in meters) the car travels during the reaction time of the driver plus the distance B (in meters) the car travels after the brakes are applied (see figure). The table shows the results of the experiment. (Round your coefficients to 3 decimal places.)
Reaction
time
Braking
distance
R
Driver sees
obstacle
Driver applies
brakes
B
Car
stops
Speed, v
20 40 60 80 100
Reaction Time
7.6 16.0 24.3 32.6 41.0
Distance, R
Braking Time
1.6 8.3 19.5 35.1 55.2
Distance, B
(a) Use the regression capabilities of a graphing utility to find a linear model for the reaction time distance R. (Round numerical values to four decimal places.)
R(v) =
(b) Use the regression capabilities of a graphing utility to find a quadratic model for braking distance B. (Round numerical values to four decimal places.)
B(v) =
(c) Determine the polynomial giving the total stopping distance T. (Round numerical values to four decimal places.)
T(v) =

Show more…

The stopping distance of an automobile, on dry, level pavement, traveling at a speed v (in kilometers per hour) is the distance R (in meters) the car travels during the reaction time of the driver plus the distance B (in meters) the car travels after the brakes are applied (see figure). The table shows the results of the experiment. (Round your coefficients to 3 decimal places.)
Reaction
time
Braking
distance
R
Driver sees
obstacle
Driver applies
brakes
B
Car
stops
Speed, v
20 40 60 80 100
Reaction Time
7.6 16.0 24.3 32.6 41.0
Distance, R
Braking Time
1.6 8.3 19.5 35.1 55.2
Distance, B
(a) Use the regression capabilities of a graphing utility to find a linear model for the reaction time distance R. (Round numerical values to four decimal places.)
R(v) =
(b) Use the regression capabilities of a graphing utility to find a quadratic model for braking distance B. (Round numerical values to four decimal places.)
B(v) =
(c) Determine the polynomial giving the total stopping distance T. (Round numerical values to four decimal places.)
T(v) =

Added by Alexander B.

Calculus: Early Transcendentals

James Stewart 8th Edition

Instant Answer

Solved by Expert William Semus

10/05/2022

Step 1

The data points are as follows: Speed (v): 20, 40, 60, 80, 100 Reaction Time Distance (r): 7.6, 16, 24.3, 32.6, 41 Performing linear regression on this data gives us the equation: \[ R(v) = 0.417v - 0.72 \] ** Show more…

Show all steps

lock

Thanks for your feedback!

The stopping distance of an automobile, on dry, level pavement, traveling at a speed v (in kilometers per hour) is the distance R (in meters) the car travels during the reaction time of the driver plus the distance B (in meters) the car travels after the brakes are applied (see figure). The table shows the results of the experiment. (Round your coefficients to 3 decimal places.) Reaction time Braking distance Driver sees obstacle Driver applies brakes Car stops Speed, v 20 40 60 80 100 Reaction Time Distance, R 7.6 16.0 24.3 32.6 41.0 Braking Time Distance, B 1.6 8.3 19.5 35.1 55.2 (a) Use the regression capabilities of a graphing utility to find a linear model for the reaction time distance R. (Round numerical values to four decimal places.) R(v) = (b) Use the regression capabilities of a graphing utility to find a quadratic model for braking distance B. (Round numerical values to four decimal places.) B(v) = (c) Determine the polynomial giving the total stopping distance T. (Round numerical values to four decimal places.) T(v) =

Play audio

Feedback

Powered by NumerAI

William Semus and 78 other subject Calculus 1 / AB educators are ready to help you.

Ask a new question

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Recommended Videos

Recommended Textbooks

Transcript

00:01 So in this question, they say that the stopping distance of an automobile on dry level pavement, traveling at a speed v in kilometers per hour, is the distance are in meters that the car travels during the reaction time of the driver, plus the distance b in meters that the car travels after the brakes are applied see the figure.

00:22 The table shows the results of the experiment, and we will round our coefficients to three decimal places.

00:28 In part a, they say, i want to use the regrettable.

00:31 Capabilities of a graphing utility to find a linear model for the reaction time distance r.

00:39 So i'm going to head to my calculator and i'm going to go into my stat and i'm going to edit.

00:47 I'm going to clear out what i have in l1 and l2.

00:55 Now in l1 i'm going to put my x values, which are my speeds this time.

01:01 They're 20, 40.

01:05 60, 80, and 100.

01:11 And in l2, i'm going to put my values of r.

01:14 So 7 .6, 16, 24 .3, 32 .6, and 41.

01:28 Once i've done so, i'm going to go to stat again, and i'm going to calculate a linear regression on the data set that's in l1 and l2.

01:38 I calculate, and what am i getting? i'm getting .417x minus .72.

01:47 So here i'm getting, i'm going to use v instead of x, but i'm getting 0 .417v, and then this was plus b, which is negative 0 .72, so minus 0 .72.

02:04 In part b, use the regression capabilities of a graphing utility to find a quadratic model for the breaking distance b, again rounding our numerical values to four decimal places.

02:18 So i'm going back to my calculator, and now i'm going to say going back to stat, i'm going to edit, and in l2, i'm going to have 1 .6, i'm going to have 8 .3, 19 .5, 35 .1 .1.

02:37 And 55 .2.

02:43 And what do i do? i'm going to quit.

02:45 I'm going to stat calculate a quadratic regression on l1 and l2...
