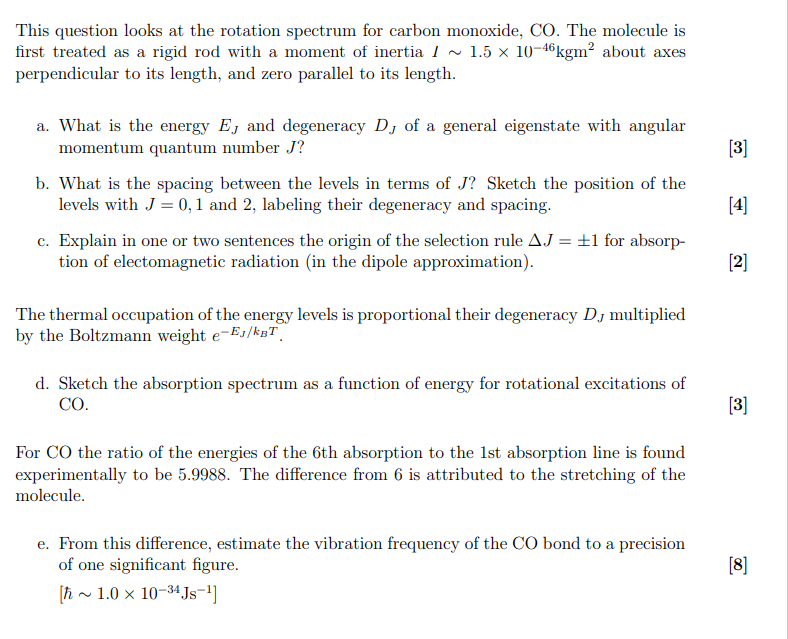

This question looks at the rotation spectrum for carbon monoxide, CO. The molecule is first treated as a rigid rod with a moment of inertia I ~ 1.5 × 10??? kgm² about axes perpendicular to its length, and zero parallel to its length. a. What is the energy E? and degeneracy D? of a general eigenstate with angular momentum quantum number J? b. What is the spacing between the levels in terms of J? Sketch the position of the levels with J = 0, 1 and 2, labeling their degeneracy and spacing. c. Explain in one or two sentences the origin of the selection rule ?J = ±1 for absorption of electromagnetic radiation (in the dipole approximation). The thermal occupation of the energy levels is proportional their degeneracy D? multiplied by the Boltzmann weight e???/???. d. Sketch the absorption spectrum as a function of energy for rotational excitations of CO. For CO the ratio of the energies of the 6th absorption to the 1st absorption line is found experimentally to be 5.9988. The difference from 6 is attributed to the stretching of the molecule. e. From this difference, estimate the vibration frequency of the CO bond to a precision of one significant figure. [? ~ 1.0 × 10?³? Js?¹]
Added by Foster J.
Close
Step 1
Step 1: The energy EJ of a general eigenstate with angular momentum quantum number J is given by the formula: \[E_J = \frac{{\hbar^2 J (J + 1)}}{{2I}}\] where I is the moment of inertia of the molecule. Show more…
Show all steps
