• Three resistors ( R1 = 4 ohms) connected in series with two other resistors (R2 = 3 ohms , and R3 = 9 ohms ) that are connected in parallel .Find the equivalent resistance ? 3? 4? 9? Select one: A. 6.25 ohms B. 2.5 ohms C. 8 ohms D. 16 ohms
Added by Craig S.
Close
Step 1
We have: - \( R1 = 4 \, \Omega \) in series with the combination of \( R2 = 3 \, \Omega \) and \( R3 = 9 \, \Omega \) in parallel. Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 52 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

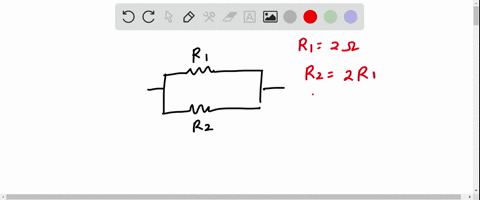

Two resistors are connected in parallel, one has a value of 2 ohms and the other is twice as great as the first one. What will likely be the total resistance of the two? A. 6 ohms B. 1 ohm C. 4 ohms D. 4/3 ohms
Sufiyan A.

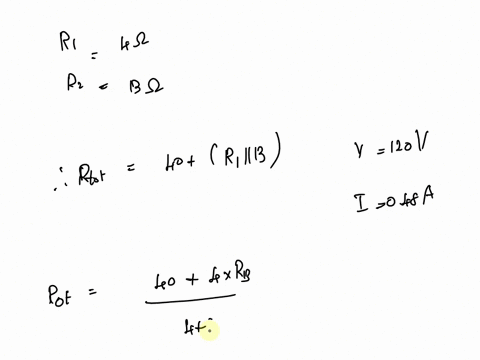

A resistor of 40 ohms is in series with two resistors A and B in parallel. The resistance of A is 100 ohms. The entire series parallel circuit is connected across a 120 Volt supply. Determine (a) Ohms to which resistor B must be adjusted in order that it will take current of 0.48 A; (b) current in resistor A; (c) voltage across resistors A and B
Madhur L.
Three resistors R1 = 2 ohm, R2 = 4 ohm, and R3 = 8 ohm are connected to a source with a terminal voltage of 6V. Find the current that would pass through each resistor and the voltage across each if they are connected in a) series b) parallel.
Krishna S.
