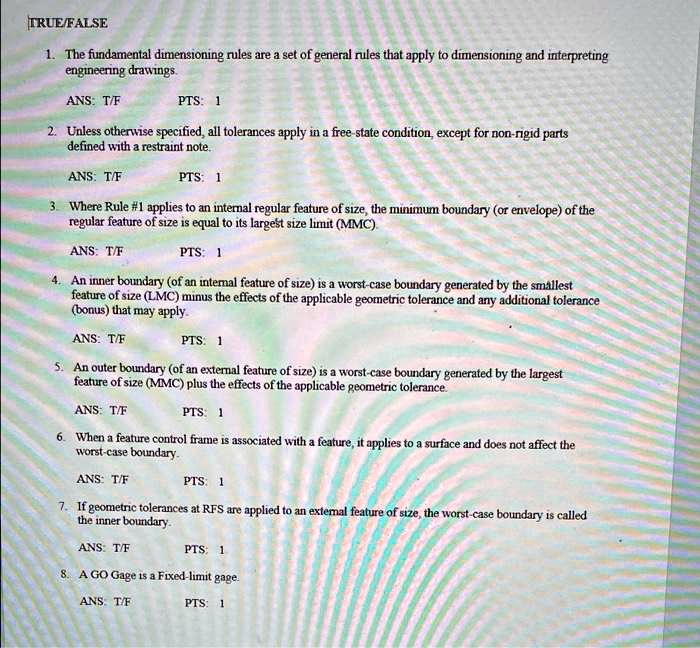

TRUE/FALSE 1. The fundamental dimensioning rules are a set of general rules that apply to dimensioning and interpreting engineering drawings. ANS: T/F PTS: 1 2. Unless otherwise specified, all tolerances apply in a free-state condition, except for non-rigid parts defined with a restraint note. ANS: T/F PTS: 1 3. Where Rule #1 applies to an internal regular feature of size, the minimum boundary (or envelope) of the regular feature of size is equal to its largest size limit (MMC). ANS: T/F PTS: 1 4. An inner boundary (of an internal feature of size) is a worst-case boundary generated by the smallest feature of size (LMC) minus the effects of the applicable geometric tolerance and any additional tolerance (bonus) that may apply. ANS: T/F PTS: 1 5. An outer boundary (of an external feature of size) is a worst-case boundary generated by the largest feature of size (MMC) plus the effects of the applicable geometric tolerance. ANS: T/F PTS: 1 6. When a feature control frame is associated with a feature, it applies to a surface and does not affect the worst-case boundary. ANS: T/F PTS: 1 7. If geometric tolerances at RFS are applied to an external feature of size, the worst-case boundary is called the inner boundary. ANS: T/F PTS: 1 8. A GO Gage is a Fixed-limit gage. ANS: T/F PTS: 1
Added by Megan C.
Close
Step 1
Identify the dimensioning rules that apply to the drawing. The fundamental dimensioning rules are a set of general rules that apply to dimensioning and interpreting engineering drawings. Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 98 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.

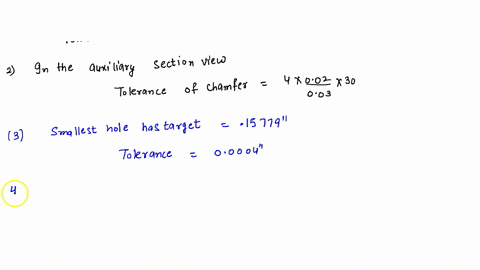

Industry Print Exercise 10-2 Refer to the print PR 10-2 and answer the questions below: 1. The basic depth of this part is .715. What is the tolerance on that dimension? 2. What is the tolerance on the chamfer note? 3. In the auxiliary section view, there is a target size of .1577" What is the tolerance on that hole? 4. The central, smallest hole has a diameter of .118". What is the tolerance on that hole? 5. What is the maximum material condition of the largest body diameter of this part? 6. What is the angular tolerance for angles unless otherwise specified? 7. What is the tolerance for three-place decimal values unless otherwise specified? Review questions based on previous units: 8. Are there any hidden lines shown on this drawing? 9. What is the name of this part? 10. What scale are the views on the original drawing? 11. Is Section B-B shown in alignment with other views or as a removed view? 12. What thread class is designated for the four small holes? 13. How many cutting-planes are indicated? 14. Does this drawing feature any auxiliary views? 15. Are there any reference dimensions on this print? 16. As dimensioned, does this drawing follow the cylinder rule?
