4. Two elevated tanks supply water to a demand node with a valve at its outlet (Figure 4). The elevated tanks are cylindrical and have diameters of 5 m. The initial water level in Tank 1 is 96 m and the initial water level in Tank 2 is 89 m. The valve is half open and has a discharge coefficient of 0.15 m^5/2/s. The initial steady-state flow through the valve is 350 L/s. The valve discharges to the atmosphere. Both pipes have a Hazen-Williams 'C' factor of 100, an internal diameter of 250 mm, and a length of 300 m. Assuming quasi-steady conditions in the system, determine the pressure head at the demand node and the flow in the pipes in the first three time steps of the simulation. Use a time step of 15 seconds to carry out the quasi-steady state simulation. Tank 1 HGL Tank 2 96 m 89 m H L=300 m L=300 m Q

          4. Two elevated tanks supply water to a demand node with a valve at its outlet (Figure 4). The elevated tanks are cylindrical and have diameters of 5 m. The initial water level in Tank 1 is 96 m and the initial water level in Tank 2 is 89 m. The valve is half open and has a discharge coefficient of 0.15 m^5/2/s. The initial steady-state flow through the valve is 350 L/s. The valve discharges to the atmosphere. Both pipes have a Hazen-Williams 'C' factor of 100, an internal diameter of 250 mm, and a length of 300 m. Assuming quasi-steady conditions in the system, determine the pressure head at the demand node and the flow in the pipes in the first three time steps of the simulation. Use a time step of 15 seconds to carry out the quasi-steady state simulation.

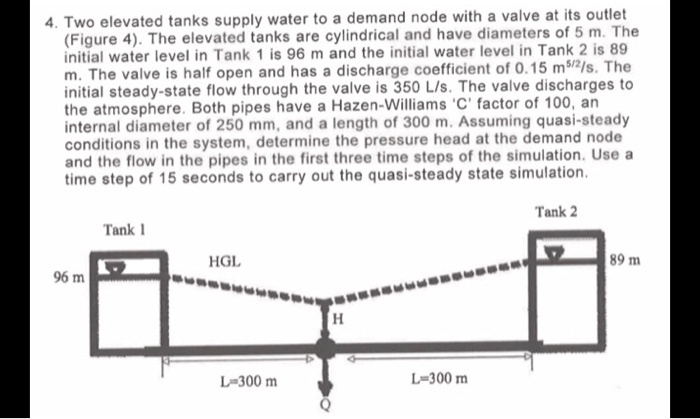

Tank 1
HGL
Tank 2
96 m
89 m
H
L=300 m
L=300 m
Q

Show more…

4. Two elevated tanks supply water to a demand node with a valve at its outlet (Figure 4). The elevated tanks are cylindrical and have diameters of 5 m. The initial water level in Tank 1 is 96 m and the initial water level in Tank 2 is 89 m. The valve is half open and has a discharge coefficient of 0.15 m^5/2/s. The initial steady-state flow through the valve is 350 L/s. The valve discharges to the atmosphere. Both pipes have a Hazen-Williams 'C' factor of 100, an internal diameter of 250 mm, and a length of 300 m. Assuming quasi-steady conditions in the system, determine the pressure head at the demand node and the flow in the pipes in the first three time steps of the simulation. Use a time step of 15 seconds to carry out the quasi-steady state simulation.

Tank 1
HGL
Tank 2
96 m
89 m
H
L=300 m
L=300 m
Q

Added by Elizabeth L.

Calculus: Early Transcendentals

James Stewart 8th Edition

Instant Answer

Solved by Expert Sri K

02/26/2023

Step 1

First, we need to find the head loss in each pipe using the Hazen-Williams equation: $H_f = 10.67 \times \frac{L}{C^2 \times D^{4.87}} \times Q^{1.85}$ where $H_f$ is the head loss, $L$ is the length of the pipe, $C$ is the Hazen-Williams factor, $D$ is the Show more…
