We have the following capacitance circuit: C1, C2, C3, C4, V Figure 2: HW7.2 1) Find the total capacitance of the circuit. Show all of the calculations in full [20 points]. 2) Find the charge and voltage for C2 and C3 if V = 1 volt and C1 = C2 = C3 = C4 = 1?F. Show calculation in full [30 points].

          We have the following capacitance circuit:

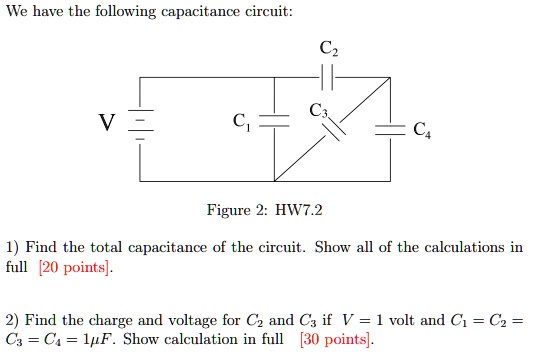

C1, C2, C3, C4, V
Figure 2: HW7.2
1) Find the total capacitance of the circuit. Show all of the calculations in full [20 points].
2) Find the charge and voltage for C2 and C3 if V = 1 volt and C1 = C2 = C3 = C4 = 1?F. Show calculation in full [30 points].

We have the following capacitance circuit:
C1, C2, C3, C4, V
Figure 2: HW7.2
1) Find the total capacitance of the circuit. Show all of the calculations in full [20 points].
2) Find the charge and voltage for C2 and C3 if V = 1 volt and C1 = C2 = C3 = C4 = 1?F. Show calculation in full [30 points].

Added by Darin R.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

04/21/2023

Step 1

3 Farads. Show more…
