Physics for Scientists and Engineers with Modern Physics

Raymond A. Serway, John W. Jewett, Jr.

Chapter 29

Magnetic Fields - all with Video Answers

Educators

+ 2 more educators

Chapter Questions

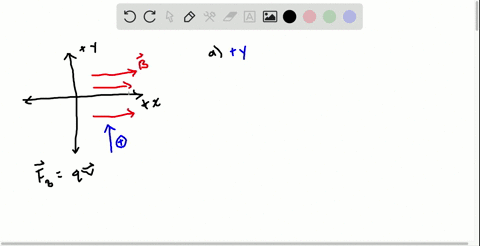

Problem 1

A proton is projected into a magnetic field that is directed along the positive $x$ axis. Find the direction of the magnetic force exerted on the proton for each of the following directions of the proton's velocity: (a) the positive $y$ direction, (b) the negative $y$ direction, (c) the positive $x$ direction.

Jacob Paiste

Jacob Paiste

Numerade Educator

Problem 2

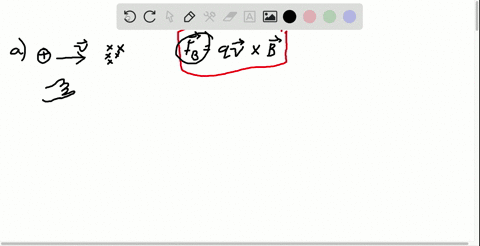

Determine the initial direction of the deflection of charged particles as they enter the magnetic fields shown in Figure P 29.2.

Jacob Paiste

Numerade Educator

Problem 3

Find the direction of the magnetic field acting on a positively charged particle moving in the various situations.

shown in Figure P 29.3 if the direction of the magnetic force acting on it is as indicated.

Jacob Paiste

Numerade Educator

Problem 4

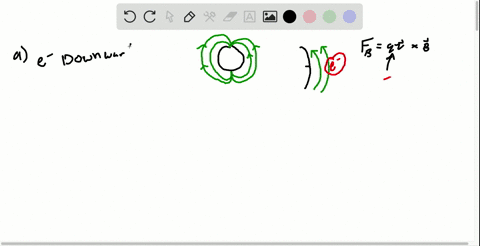

Consider an electron near the Earth’s equator. In which direction does it tend to deflect if its velocity is (a) directed downward? (b) Directed northward? (c) Directed west-ward? (d) Directed southeastward?

Jacob Paiste

Numerade Educator

Problem 5

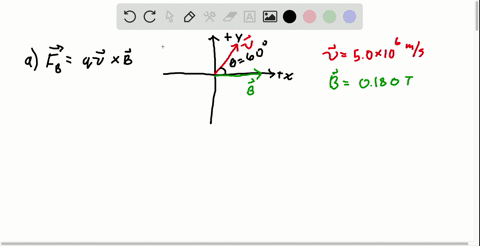

A proton travels with a speed of $5.02 \times 10^{6} \mathrm{m} / \mathrm{s}$ in a direction that makes an angle of $60.0^{\circ}$ with the direction of a magnetic field of magnitude 0.180 $\mathrm{T}$ in the positive $x$ direction. What are the magnitudes of (a) the magnetic force on the proton and (b) the proton's acceleration?

Jacob Paiste

Numerade Educator

Problem 6

A proton moving at $4.00 \times 10^{6} \mathrm{m} / \mathrm{s}$ through a magnetic field of magnitude 1.70 $\mathrm{T}$ experiences a magnetic force of magnitude $8.20 \times 10^{-13} \mathrm{N}$. What is the angle between the proton's velocity and the field?

Jacob Paiste

Numerade Educator

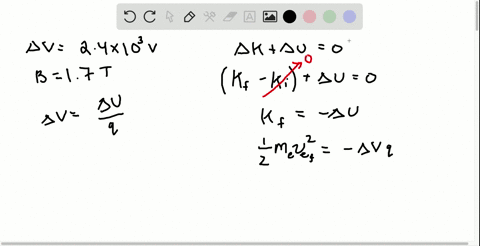

Problem 7

An electron is accelerated through $2.40 \times 10^{3} \mathrm{V}$ from rest and then enters a uniform 1.70 - T magnetic field. What are (a) the maximum and (b) the minimum values of the magnetic force this particle experiences?

Jacob Paiste

Numerade Educator

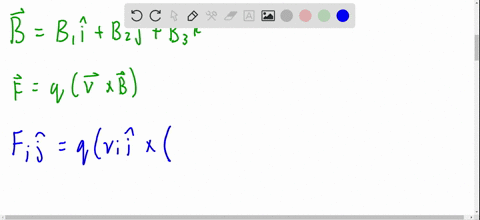

Problem 8

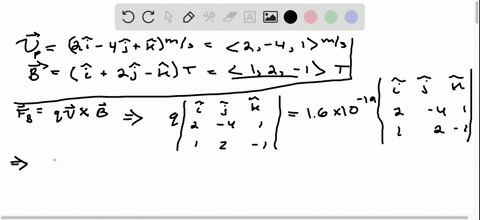

A proton moves with a velocity of $\overrightarrow{\mathbf{v}}=(2 \hat{\mathbf{i}}-4 \hat{\mathbf{j}}+\hat{\mathbf{k}}) \mathrm{m} / \mathrm{s}$ in a region in which the magnetic field is $\overrightarrow{\mathbf{B}}=(\overrightarrow{\mathbf{i}}+2 \hat{\mathbf{j}}-\hat{\mathbf{k}}) \mathrm{T}$ . What is the magnitude of the magnetic force this particle experiences?

Jacob Paiste

Numerade Educator

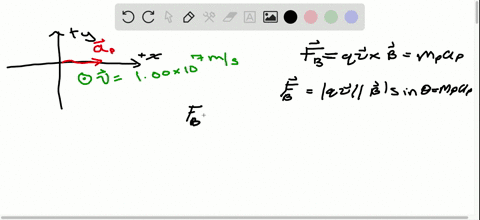

Problem 9

A proton moves perpendicular to a uniform magnetic field $\overrightarrow{\mathbf{B}}$ at a speed of $1.00 \times 10^{7} \mathrm{m} / \mathrm{s}$ and experiences an acceleration of $2.00 \times 10^{13} \mathrm{m} / \mathrm{s}^{2}$ in the positive $x$ direction when its velocity is in the positive $z$ direction. Determine the magnitude and direction of the field.

Jacob Paiste

Numerade Educator

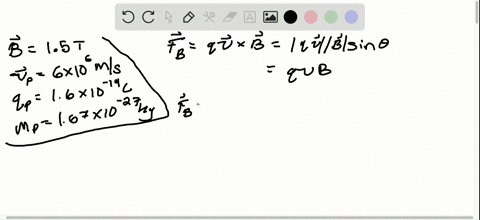

Problem 10

A laboratory electromagnet produces a magnetic field of magnitude 1.50 T. A proton moves through this field with a speed of $6.00 \times 10^{6} \mathrm{m} / \mathrm{s}$ . (a) Find the magnitude of the maximum magnetic force that could be exerted on the proton. (b) What is the magnitude of the maximum acceleration of the proton? (c) Would the field exert the same magnetic force on an electron moving through the field with the same speed? (d) Would the electron experience the same acceleration? Explain.

Jacob Paiste

Numerade Educator

Problem 11

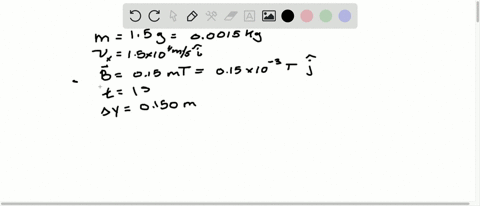

A charged particle of mass 1.50 g is moving at a speed of $1.50 \times 10^{4} \mathrm{m} / \mathrm{s}$ . Suddenly, a uniform magnetic field of magnitude 0.150 mT in a direction perpendicular to the particle’s velocity is turned on and then turned off in a time interval of 1.00 s. During this time interval, the magnitude and direction of the velocity of the particle undergo a negligible change, but the particle moves by a distance of 0.150 m in a direction perpendicular to the velocity. Find the charge on the particle.

Jacob Paiste

Numerade Educator

Problem 12

An electron moves in a circular path perpendicular to a uniform magnetic field with a magnitude of 2.00 $\mathrm{mT}$ . If the speed of the electron is $1.50 \times 10^{7} \mathrm{m} / \mathrm{s}$ , determine (a) the radius of the circular path and (b) the time interval required to complete one revolution.

Jacob Paiste

Numerade Educator

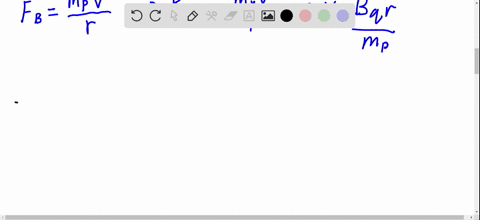

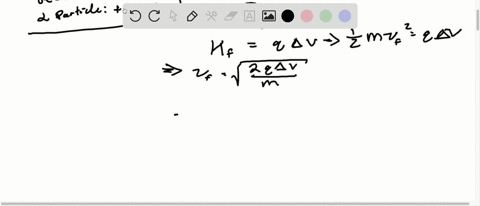

Problem 13

A proton (charge $+e,$ mass $m_{p} ),$ a deuteron (charge $+e$, mass $2 m_{p} ),$ and an alpha particle (charge $+2 e,$ mass 4$m_{p} )$ are accelerated from rest through a common potential difference $\Delta V$ . Each of the particles enters a uniform magnetic field $\overrightarrow{\mathbf{B}},$ with its velocity in a direction perpendicular to $\overrightarrow{\mathbf{B}}$. The proton moves in a circular path of radius $r_{p}$ . In terms of $r_{p},$ determine (a) the radius $r_{d}$ of the circular orbit for the deuteron and (b) the radius $r_{\alpha}$ for the alpha particle.

Jacob Paiste

Numerade Educator

Problem 14

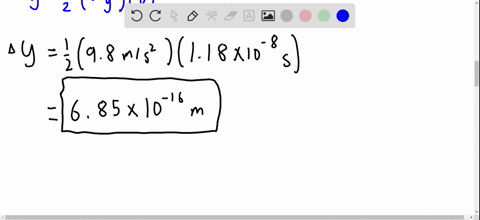

An accelerating voltage of $2.50 \times 10^{3} \mathrm{V}$ is applied to an electron gun, producing a beam of electrons originally traveling horizontally north in vacuum toward the center of a viewing screen 35.0 cm away. What are (a) the magnitude and (b) the direction of the deflection on the screen caused by the Earth’s gravitational field? What are (c) the magnitude and (d) the direction of the deflection on the screen caused by the vertical component of the Earth’s magnetic field, taken as 20.0$\mu \mathrm{T}$ down? (e) Does an electron in this vertical magnetic field move as a projectile, with constant vector acceleration perpendicular to a constant northward component of velocity? (f) Is it a good approximation to assume it has this projectile motion? Explain.

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

Problem 15

One electron collides elastically with a second electron initially at rest. After the collision, the radii of their trajectories are 1.00 cm and 2.40 cm. The trajectories are perpendicular to a uniform magnetic field of magnitude 0.044 0 T. Determine the energy (in keV) of the incident electron.

Jacob Paiste

Numerade Educator

Problem 16

One electron collides elastically with a second electron initially at rest. After the collision, the radii of their trajectories are $r_{1}$ and $r_{2} .$ The trajectories are perpendicular to a uniform magnetic field of magnitude $B$ . Determine the energy of the incident electron.

Jacob Paiste

Numerade Educator

Problem 17

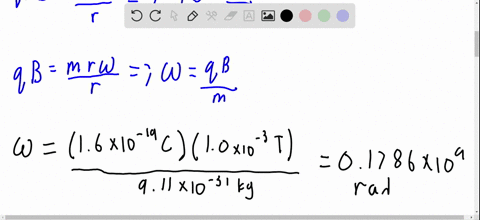

An electron moves in a circular path perpendicular to a constant magnetic field of magnitude 1.00 mT. The angular momentum of the electron about the center of the circle is 4.00 $\times 10^{-25} \mathrm{kg} \cdot \mathrm{m}^{2} / \mathrm{s}$ . Determine (a) the radius of the circular path and (b) the speed of the electron.

Jacob Paiste

Numerade Educator

Problem 18

A particle with charge $q$ and kinetic energy $K$ travels in a uniform magnetic field of magnitude $B$ . If the particle moves in a circular path of radius $R,$ find expressions for (a) its speed and (b) its mass.

Jacob Paiste

Numerade Educator

Problem 19

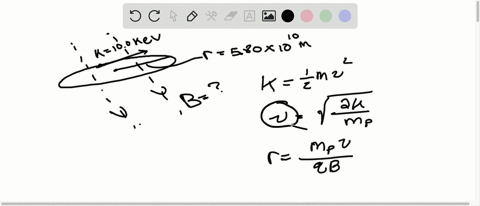

A cosmic-ray proton in interstellar space has an energy of 10.0 MeV and executes a circular orbit having a radius equal to that of Mercury's orbit around the Sun $(5.80 \times10^{10} \mathrm{m} ) .$ What is the magnetic field in that region of space?

Jacob Paiste

Numerade Educator

Problem 20

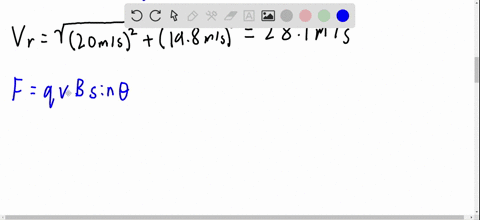

A 30.0 -g metal ball having net charge $Q=5.00 \mu \mathrm{C}$ is thrown out of a window horizontally north at a speed $v=20.0 \mathrm{m} / \mathrm{s}$ . The window is at a height $h=$ 20.0 $\mathrm{m}$ above the ground. A uniform, horizontal magnetic field of magnitude $B=0.0100 \mathrm{T}$ is perpendicular to the plane of the ball's trajectory and directed toward the west. (a) Assuming the ball follows the same trajectory as it would in the absence of the magnetic field, find the magnetic force acting on the ball just before it hits the ground. (b) Based on the result of part (a), is it justified for three-significant-digit precision to assume the trajectory is unaffected by the magnetic field? Explain.

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

Problem 21

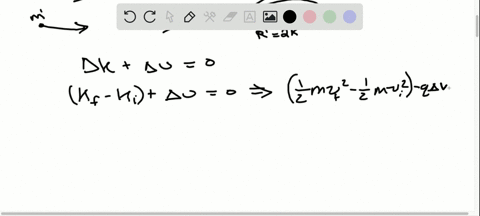

A singly charged ion of mass $m$ is accelerated from rest by a potential difference $\Delta V$ . It is then deflected by a uniform magnetic field (perpendicular to the ion's velocity) into a semicircle of radius $R .$ Now a doubly charged ion of mass $m^{\prime}$ is accelerated through the same potential difference and deflected by the same magnetic field into a semicircle of radius $R^{\prime}=2 R .$ What is the ratio of the masses of the ions?

Jacob Paiste

Numerade Educator

Problem 22

Assume the region to the right of a certain plane contains a uniform magnetic field of magnitude 1.00 mT and the field is zero in the region to the left of the plane as shown in Figure P 29.22. An electron, originally traveling perpendicular to the boundary plane, passes into the region of the field. (a) Determine the time interval required for the electron to leave the “field-filled” region, noting that the electron’s path is a semicircle. (b) Assuming the maximum depth of penetration into the field is 2.00 cm, find the kinetic energy of the electron.

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

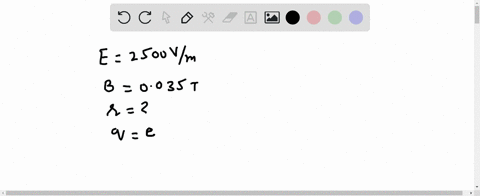

Problem 23

Consider the mass spectrometer shown schematically in Active Figure 29.14. The magnitude of the electric field between the plates of the velocity selector is $2.50 \times 10^{3} \mathrm{V} / \mathrm{m}$ , and the magnetic field in both the velocity selector and the deflection chamber has a magnitude of 0.0350 T. Calculate the radius of the path for a singly charged ion having a mass $m=2.18 \times 10^{-26} \mathrm{kg}$ .

Khoobchandra Agrawal

Khoobchandra Agrawal

Numerade Educator

Problem 24

A cyclotron designed to accelerate protons has a magnetic field of magnitude 0.450 T over a region of radius 1.20 m. What are (a) the cyclotron frequency and (b) the maximum speed acquired by the protons?

Jacob Paiste

Numerade Educator

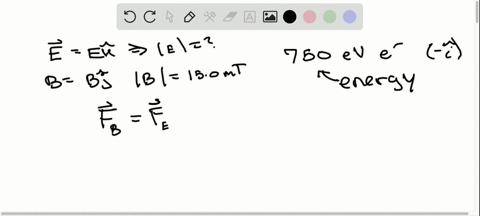

Problem 25

A velocity selector consists of electric and magnetic fields described by the expressions $\overrightarrow{\mathbf{E}}=E \hat{\mathbf{k}}$ and $\overrightarrow{\mathbf{B}}=B \hat{\mathbf{j}},$ with $B= 15.0$ $\mathrm{mT}$ . Find the value of $E$ such that a 750 -eV electron moving in the negative $x$ direction is undeflected.

Jacob Paiste

Numerade Educator

Problem 26

Singly charged uranium-238 ions are accelerated through a potential difference of 2.00 kV and enter a uniform magnetic field of magnitude 1.20 T directed perpendicular to their velocities. (a) Determine the radius of their circular path. (b) Repeat this calculation for uranium-235 ions. (c) What If? How does the ratio of these path radii depend on the accelerating voltage? (d) On the magnitude of the magnetic field?

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

Problem 27

A cyclotron (Fig. 29.16) designed to accelerate protons has an outer radius of 0.350 m. The protons are emitted nearly at rest from a source at the center and are accelerated through 600 V each time they cross the gap between the dees. The dees are between the poles of an electromagnet where the field is 0.800 T. (a) Find the cyclotron frequency for the protons in this cyclotron. Find (b) the speed at which protons exit the cyclotron and (c) their maximum kinetic energy. (d) How many revolutions does a proton make in the cyclotron? (e) For what time interval does the proton accelerate?

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

Problem 28

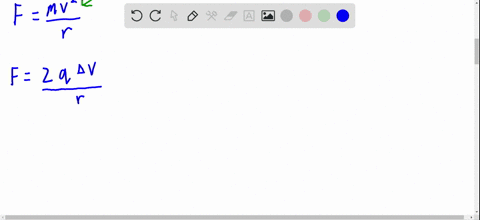

A particle in the cyclotron shown in Figure 29.16a gains energy $q \Delta V$ from the alternating power supply each time it passes from one dee to the other. The time interval for each full orbit is
$$T=\frac{2 \pi}{\omega}=\frac{2 \pi m}{q B}$$
so the particle’s average rate of increase in energy is
$$\frac{2 q \Delta V}{T}=\frac{q^{2} B \Delta V}{\pi m}$$
Notice that this power input is constant in time. On the other hand, the rate of increase in the radius $r$ of its path is not constant. (a) Show that the rate of increase in the radius $r$ of the particle's path is given by
$$\frac{d r}{d t}=\frac{1}{r} \frac{\Delta V}{\pi B}$$
(b) Describe how the path of the particles in Figure 29.16a is consistent with the result of part (a). (c) At what rate is the radial position of the protons in a cyclotron increasing immediately before the protons leave the cyclotron? Assume the cyclotron has an outer radius of 0.350 m, an accelerating voltage of $\Delta V=600 \mathrm{V},$ and a magnetic field of magnitude 0.800 $\mathrm{T}$ . (d) By how much does the radius of the protons' path increase during their last full revolution?

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

Problem 29

The picture tube in an old black-and-white television uses magnetic deflection coils rather than electric deflection plates. Suppose an electron beam is accelerated through a 50.0-kV potential difference and then through a region of uniform magnetic field 1.00 cm wide. The screen is located 10.0 cm from the center of the coils and is 50.0 cm wide. When the field is turned off, the electron beam hits the center of the screen. Ignoring relativistic corrections, what field magnitude is necessary to deflect the beam to the side of the screen?

Ajay Singhal

Numerade Educator

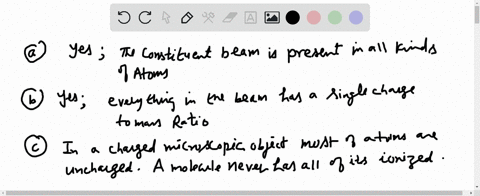

Problem 30

In his experiments on “cathode rays” during which he discovered the electron, J. J. Thomson showed that the same beam deflections resulted with tubes having cathodes made of different materials and containing various gases before evacuation. (a) Are these observations important? Explain your answer. (b) When he applied various potential differences to the deflection plates and turned on the magnetic coils, alone or in combination with the deflection plates, Thomson observed that the fluorescent screen continued to show a single small glowing patch. Argue whether his observation is important. (c) Do calculations to show that the charge-to-mass ratio Thomson obtained was huge compared with that of any macroscopic object or of any ionized atom or molecule. How can one make sense of this comparison? (d) Could Thomson observe any deflection of the beam due to gravitation? Do a calculation to argue for your answer. Note: To obtain a visibly glowing patch on the fluorescent screen, the potential difference between the slits and the cathode must be 100 V or more.

Khoobchandra Agrawal

Khoobchandra Agrawal

Numerade Educator

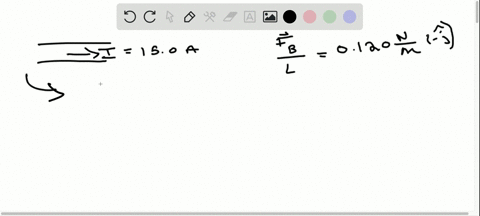

Problem 31

A conductor carrying a current $I=15.0 \mathrm{A}$ is directed along the positive x axis and perpendicular to a uniform magnetic field. A magnetic force per unit length of 0.120 N/m acts on the conductor in the negative $y$ direction. Determine (a) the magnitude and (b) the direction of the magnetic field in the region through which the current passes.

Jacob Paiste

Numerade Educator

Problem 32

A straight wire carrying a 3.00-A current is placed in a uniform magnetic field of magnitude 0.280 T directed perpendicular to the wire. (a) Find the magnitude of the magnetic force on a section of the wire having a length of 14.0 cm. (b) Explain why you can’t determine the direction of the magnetic force from the information given in the problem.

Jacob Paiste

Numerade Educator

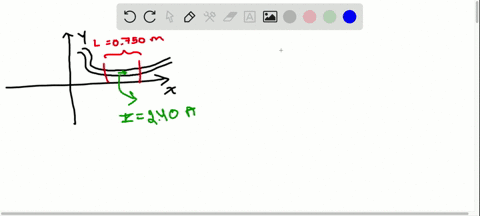

Problem 33

A wire carries a steady current of 2.40 A. A straight section of the wire is 0.750 $\mathrm{m}$ long and lies along the $x$ axis within a uniform magnetic field, $\overrightarrow{\mathbf{B}}=1.60 \hat{\mathbf{k}} \mathrm{T}$. If the current is in the positive $x$ direction, what is the magnetic force on the section of wire?

Jacob Paiste

Numerade Educator

Problem 34

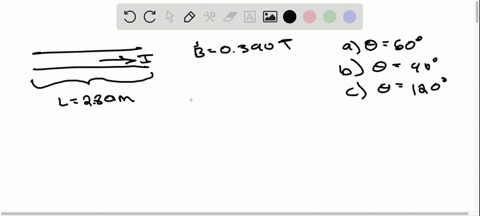

A wire 2.80 m in length carries a current of 5.00 A in a region where a uniform magnetic field has a magnitude of 0.390 T. Calculate the magnitude of the magnetic force on the wire assuming the angle between the magnetic field and the current is (a) $60.0^{\circ},$ (b) $90.0^{\circ},$ and (c) $120^{\circ}.$

Jacob Paiste

Numerade Educator

Problem 35

A wire having a mass per unit length of 0.500 g/cm carries a 2.00-A current horizontally to the south. What are (a) the direction and (b) the magnitude of the minimum magnetic field needed to lift this wire vertically upward?

Jacob Paiste

Numerade Educator

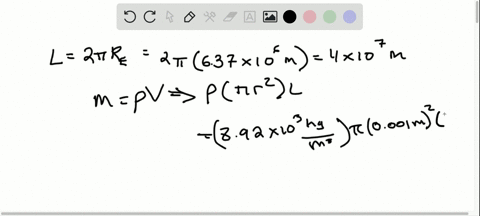

Problem 36

Why is the following situation impossible? Imagine a copper wire with radius 1.00 mm encircling the Earth at its magnetic equator, where the field direction is horizontal. A power supply delivers 100 MW to the wire to maintain a current in it, in a direction such that the magnetic force from the Earth’s magnetic field is upward. Due to this force, the wire is levitated immediately above the ground.

Jacob Paiste

Numerade Educator

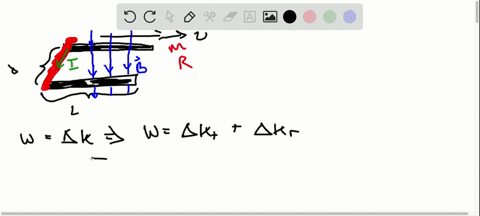

Problem 37

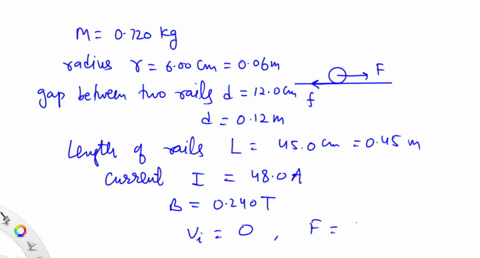

A rod of mass 0.720 kg and radius 6.00 cm rests on two parallel rails (Fig. $P 29.37 )$ that are $d=12.0 \mathrm{cm}$ apart and $L=45.0 \mathrm{cm}$ long. The rod carries a current of $I=48.0 \mathrm{A}$ in the direction shown and rolls along the rails without slipping. A uniform magnetic field of magnitude 0.240 T is directed perpendicular to the rod and the rails. If it starts from rest, what is the speed of the rod as it leaves the rails?

Vishal Gupta

Numerade Educator

Problem 38

A rod of mass $m$ and radius $R$ rests on two parallel rails (Fig. P 29.37) that are a distance $d$ apart and have a length $L .$ The rod carries a current $I$ in the direction shown and rolls along the rails without slipping. A uniform magnetic field $B$ is directed perpendicular to the rod and the rails. If it starts from rest, what is the speed of the rod as it leaves the rails?

Jacob Paiste

Numerade Educator

Problem 39

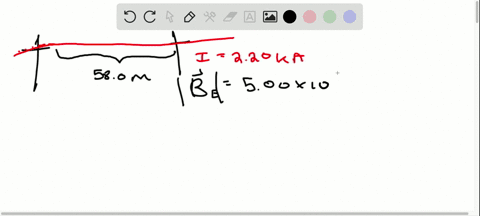

A horizontal power line of length 58.0 m carries a current of 2.20 kA northward as shown in Figure P 29.39. The Earth’s magnetic field at this location has a magnitude of $5.00 \times 10^{-5} \mathrm{T}$ . The field at this location is directed toward the north at an angle $65.0^{\circ}$ below the power line. Find (a) the magnitude and (b) the direction of the magnetic force on the power line.

Jacob Paiste

Numerade Educator

Problem 40

Consider the system pictured in Figure P 29.40. A 15.0-cm horizontal wire of mass 15.0 g is placed between two thin, vertical conductors, and a uniform magnetic field acts perpendicular to the page. The wire is free to move vertically without friction on the two vertical conductors. When a 5.00-A current is directed as shown in the figure, the horizontal wire moves upward at constant velocity in the presence of gravity. (a) What forces act on the horizontal wire, and (b) under what condition is the wire able to move upward at constant velocity? (c) Find the magnitude and direction of the minimum magnetic field required to move the wire at constant speed. (d) What happens if the magnetic field exceeds this minimum value?

Jacob Paiste

Numerade Educator

Problem 41

A strong magnet is placed under a horizontal conducting ring of radius $r$ that carries current $I$ as shown in Figure P 29.41. If the magnetic field $\overrightarrow{\mathbf{B}}$ makes an angle $\theta$ with the vertical at the ring's location, what are (a) the magnitude and (b) the direction of the resultant magnetic force on the ring?

Jacob Paiste

Numerade Educator

Problem 42

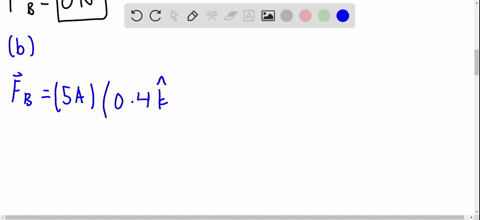

In Figure P 29.42, the cube is 40.0 cm on each edge. Four straight segments of wire- $a b, b c, c d,$ and $d a-$ form a closed loop that carries a current $I=5.00$ A in the direction shown. A uniform magnetic field of magnitude $B=0.0200$ $\mathrm{T}$ is in the positive $y$ direction. Determine the magnetic force vector on (a) a b,(b) b c,(c) c d, and (d) da. (e) Explain how you could find the force exerted on the fourth of these segments from the forces on the other three, without further calculation involving the magnetic field.

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

Problem 43

Assume the Earth's magnetic field is 52.0$\mu$ T northward at $60.0^{\circ}$ below the horizontal in Atlanta, Georgia. A tube in a neon sign stretches between two diagonally opposite corners of a shop window—which lies in a north–south vertical plane—and carries current 35.0 mA. The current enters the tube at the bottom south corner of the shop’s window. It exits at the opposite corner, which is 1.40 m farther north and 0.850 m higher up. Between these two points, the glowing tube spells out DONUTS. Determine the total vector magnetic force on the tube. Hint: You may use the first “important general statement” presented in the Finalize section of Example 29.4.

Jacob Paiste

Numerade Educator

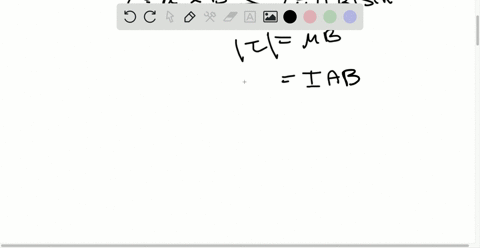

Problem 44

A current of 17.0 mA is maintained in a single circular loop of 2.00 m circumference. A magnetic field of 0.800 T is directed parallel to the plane of the loop. (a) Calculate the magnetic moment of the loop. (b) What is the magnitude of the torque exerted by the magnetic field on the loop?

Jacob Paiste

Numerade Educator

Problem 45

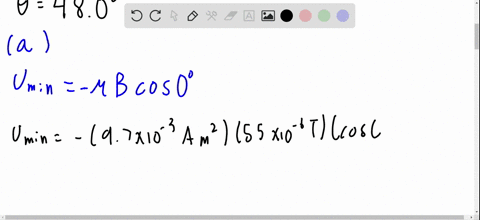

A magnetized sewing needle has a magnetic moment of $9.70 \mathrm{mA} \cdot \mathrm{m}^{2} .$ At its location, the Earth's magnetic field is 55.0$\mu \mathrm{T}$ northward at $48.0^{\circ}$ below the horizontal. Identify the orientations of the needle that represent (a) the minimum potential energy and (b) the maximum potential energy of the needle-field system. (c) How much work must be done on the system to move the needle from the minimum to the maximum potential energy orientation?

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

Problem 46

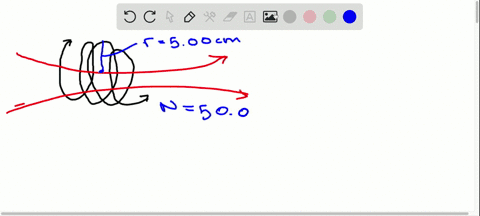

A 50.0-turn circular coil of radius 5.00 cm can be oriented in any direction in a uniform magnetic field having a magnitude of 0.500 T. If the coil carries a current of 25.0 mA, find the magnitude of the maximum possible torque exerted on the coil.

Jacob Paiste

Numerade Educator

Problem 47

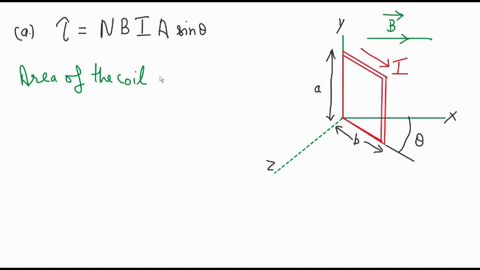

A rectangular coil consists of $N=100$ closely wrapped turns and has dimensions $a=0.400 \mathrm{m}$ and $b=0.300 \mathrm{m} .$ The coil is hinged along the $y$ axis, and its plane makes an angle $\theta=30.0^{\circ}$ with the $x$ axis (Fig. P 29.47). (a) What is the magnitude of the torque exerted on the coil by a uniform magnetic field $B=0.800$ T directed in the positive $x$ direction when the current is $I=1.20 \mathrm{A}$ in the direction shown? (b) What is the expected direction of rotation of the coil?

Prabhat Tyagi

Numerade Educator

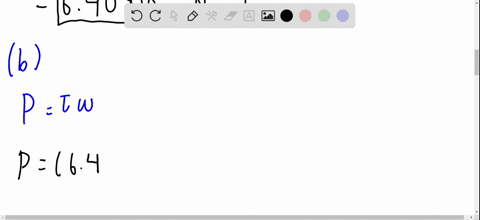

Problem 48

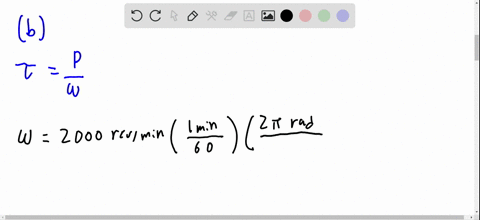

The rotor in a certain electric motor is a flat, rectangular coil with 80 turns of wire and dimensions 2.50 cm by 4.00 cm. The rotor rotates in a uniform magnetic field of 0.800 T. When the plane of the rotor is perpendicular to the direction of the magnetic field, the rotor carries a current of 10.0 mA. In this orientation, the magnetic moment of the rotor is directed opposite the magnetic field. The rotor then turns through one-half revolution. This process is repeated to cause the rotor to turn steadily at an angular speed of $3.60 \times 10^{3}$ rev/min. (a) Find the maximum torque acting on the rotor. (b) Find the peak power output of the motor. (c) Determine the amount of work performed by the magnetic field on the rotor in every full revolution. (d) What is the average power of the motor?

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

Problem 49

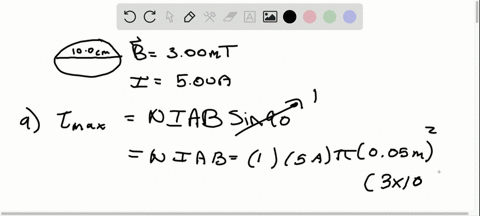

A wire is formed into a circle having a diameter of 10.0 cm and is placed in a uniform magnetic field of 3.00 mT. The wire carries a current of 5.00 A. Find (a) the maximum torque on the wire and (b) the range of potential energies of the wire–field system for different orientations of the circle.

Jacob Paiste

Numerade Educator

Problem 50

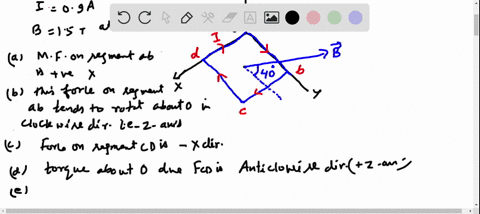

A rectangular loop of wire has dimensions 0.500 m by 0.300 m. The loop is pivoted at the x axis and lies in the $xy$ plane as shown in Figure P 29.50. A uniform magnetic field of magnitude 1.50 $\mathrm{T}$ is directed at an angle of $40.0^{\circ}$ with respect to the $y$ axis with field lines parallel to the $y$ ane. The loop carries a current of 0.900 $\mathrm{A}$ in the direction shown. (Ignore gravitation.) We wish to evaluate the torque on the current loop. (a) What is the direction of the magnetic force exerted on wire segment $a b ?$ (b) What is the direction of the torque associated with this force about an axis through the origin? (c) What is the direction of the magnetic force exerted on segment $c d ?$ (d) What is the direction of the torque associated with this force about an axis through the origin? (e) Can the forces examined in parts (a) and (c) combine to cause the loop to rotate around the $x$ axis? (f) Can they affect the motion of the loop in any way? Explain. (g) What is the direction of the magnetic force exerted on segment be? (h) What is the direction of the torque associated with this force about an axis through the origin? (i) What is the torque on segment ad about an axis through the origin? (j) From the point of view of Figure P 29.50, once the loop is released from rest at the position shown, will it rotate clockwise or counter clock- wise around the $x$ axis? (k) Compute the magnitude of the magnetic moment of the loop. (l) What is the angle between the magnetic moment vector and the magnetic field? (m) Compute the torque on the loop using the results to parts (k) and (1).

Khoobchandra Agrawal

Khoobchandra Agrawal

Numerade Educator

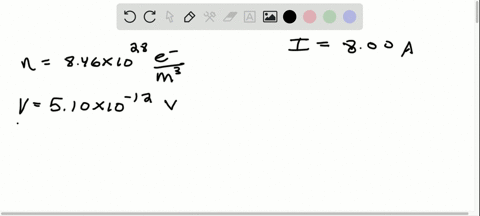

Problem 51

In an experiment designed to measure the Earth’s magnetic field using the Hall effect, a copper bar 0.500 cm thick is positioned along an east–west direction. Assume $n=8.46 \times 10^{28}$ electrons $/ \mathrm{m}^{3}$ and the plane of the bar is rotated to be perpendicular to the direction of $\overrightarrow{\mathbf{B}}$ . If a current of 8.00 $\mathrm{A}$ in the conductor results in a Hall voltage of $5.10 \times 10^{-12} \mathrm{V},$ what is the magnitude of the Earth's magnetic field at this location?

Jacob Paiste

Numerade Educator

Problem 52

A Hall-effect probe operates with a 120 -mA current. When the probe is placed in a uniform magnetic field of magnitude 0.0800 $\mathrm{T}$ , it produces a Hall voltage of 0.700$\mu \mathrm{V}$ . (a) When it is used to measure an unknown magnetic field, the Hall voltage is 0.330$\mu \mathrm{V}$ . What is the magnitude of the unknown field? (b) The thickness of the probe in the direction of $\overrightarrow{\mathbf{B}}$ is 2.00 mm. Find the density of the charge carriers, each of which has charge of magnitude $e$ .

Khoobchandra Agrawal

Khoobchandra Agrawal

Numerade Educator

Problem 53

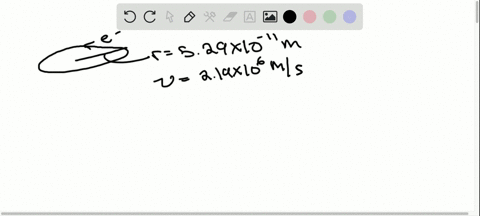

In Niels Bohr’s 1913 model of the hydrogen atom, the single electron is in a circular orbit of radius $5.29 \times 10^{-11} \mathrm{m}$ and its speed is $2.19 \times 10^{6} \mathrm{m} / \mathrm{s}$ . ( a) What is the magnitude of the magnetic moment due to the electron's motion? (b) If the electron moves in a horizontal circle, counterclockwise as seen from above, what is the direction of this magnetic moment vector?

Jacob Paiste

Numerade Educator

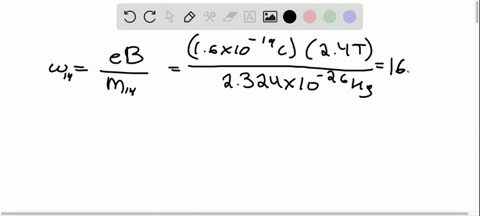

Problem 54

Carbon- 14 and carbon- 12 ions (each with charge of magnitude $e$ ) are accelerated in a cyclotron. If the cyclotron has a magnetic field of magnitude 2.40 T, what is the difference in cyclotron frequencies for the two ions?

Jacob Paiste

Numerade Educator

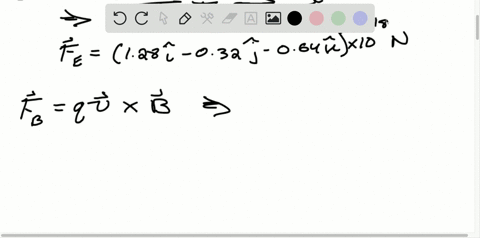

Problem 55

A particle with positive charge $q=3.20 \times 10^{-19} \mathrm{C}$ moves with a velocity $\overrightarrow{\mathbf{v}}=(2 \hat{\mathbf{i}}+3 \hat{\mathbf{j}}-\hat{\mathbf{k}}) \mathrm{m} / \mathrm{s}$ through a region where both a uniform magnetic field and a uniform electric field exist. (a) Calculate the total force on the moving particle (in unit-vector notation), taking $\overrightarrow{\mathbf{B}}=(2 \hat{\mathbf{i}}+4 \hat{\mathbf{j}}+\hat{\mathbf{k}}) \mathrm{T}$
and $\overrightarrow{\mathbf{E}}=(4 \hat{\mathbf{i}}-\hat{\mathbf{j}}-2 \hat{\mathbf{k}}) \mathrm{V} / \mathrm{m} .$ (b) What angle does the force vector make with the positive $x$ axis?

Jacob Paiste

Numerade Educator

Problem 56

Heart–lung machines and artificial kidney machines employ electromagnetic blood pumps. The blood is confined to an electrically insulating tube, cylindrical in practice but represented here for simplicity as a rectangle of interior width $w$ and height $h.$ Figure P 29.56 shows a rectangular section of blood within the tube. Two electrodes fit into the top and the bottom of the tube. The potential difference between them establishes an electric current through the blood, with current density $J$ over the current through the blood, with current density $J$ over the section of length $L$ shown in Figure P 29.56. A perpendicular magnetic field exists in the same region. (a) Explain why this arrangement produces on the liquid a force that is directed along the length of the pipe. (b) Show that the section of liquid in the magnetic field experiences a pressure increase $J L B$ . (c) After the blood leaves the pump, is it charged? (d) Is it carrying current? (e) Is it magnetized? (The same electromagnetic pump can be used for any fluid that conducts electricity, such as liquid sodium in a nuclear reactor.)

Jacob Paiste

Numerade Educator

Problem 57

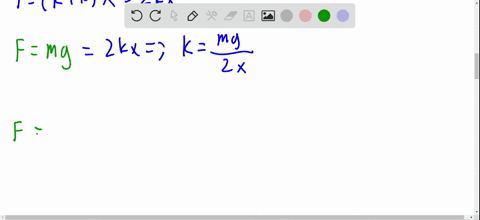

The upper portion of the circuit in Figure P 29.57 is fixed. The horizontal wire at the bottom has a mass of 10.0 g and is 5.00 cm long. This wire hangs in the gravitational field of the Earth from identical light springs connected to the upper portion of the circuit. The springs stretch 0.500 cm under the weight of the wire, and the circuit has a total resistance of 12.0$\Omega$ . When a magnetic field is turned on, directed out of the page, the springs stretch an additional 0.300 cm. Only the horizontal wire at the bottom of the circuit is in the magnetic field. What is the magnitude of the magnetic field?

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

Problem 58

Figure 29.11 shows a charged particle traveling in a nonuniform magnetic field forming a magnetic bottle. (a) Explain why the positively charged particle in the figure must be moving clockwise when viewed from the right of the figure. The particle travels along a helix whose radius decreases and whose pitch decreases as the particle moves into a stronger magnetic field. If the particle is moving to the right along the $x$ axis, its velocity in this direction will be reduced to zero and it will be reflected from the right-hand side of the bottle, acting as a “magnetic mirror.” The particle ends up bouncing back and forth between the ends of the bottle. (b) Explain qualitatively why the axial velocity is reduced to zero as the particle moves into the region of strong magnetic field at the end of the bottle. (c) Explain why the tangential velocity increases as the particle approaches the end of the bottle. (d) Explain why the orbiting particle has a magnetic dipole moment.

Dominador Tan

Numerade Educator

Problem 59

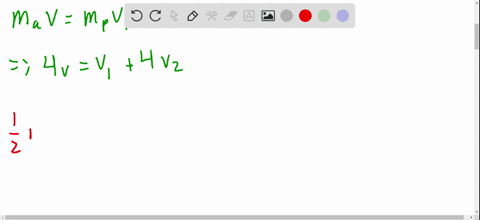

A proton is at rest at the plane boundary of a region containing a uniform magnetic field $B$ (Fig. P 29.59). An alpha particle moving horizontally makes a head-on elastic collision with the proton. Immediately after the collision, both particles enter the magnetic field, moving perpendicular to the direction of the field. The radius of the proton’s trajectory is $R.$ The mass of the alpha particle is four times that of the proton, and its charge is twice that of the proton. Find the radius of the alpha particle’s trajectory.

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

Problem 60

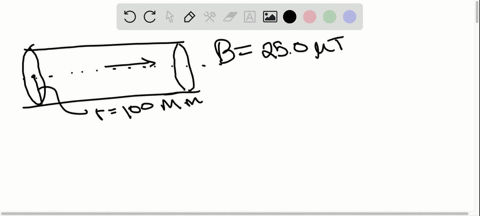

Within a cylindrical region of space of radius 100 Mm, a magnetic field is uniform with a magnitude 25.0$\mu \mathrm{T}$ and oriented parallel to the axis of the cylinder. The magnetic field is zero outside this cylinder. A cosmic-ray proton traveling at one-tenth the speed of light is heading directly toward the center of the cylinder, moving perpendicular to the cylinder’s axis. (a) Find the radius of curvature of the path the proton follows when it enters the region of the field. (b) Explain whether the proton will arrive at the center of the cylinder.

Jacob Paiste

Numerade Educator

Problem 61

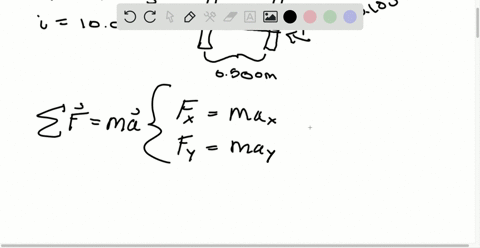

A 0.200-kg metal rod carrying a current of 10.0 A glides on two horizontal rails 0.500 m apart. If the coefficient of kinetic friction between the rod and rails is 0.100, what vertical magnetic field is required to keep the rod moving at a constant speed?

Jacob Paiste

Numerade Educator

Problem 62

A metal rod of mass $m$ carrying a current $I$ glides on two horizontal rails a distance $d$ apart. If the coefficient of kinetic friction between the rod and rails is $\mu,$ what vertical magnetic field is required to keep the rod moving at a constant speed?

Jacob Paiste

Numerade Educator

Problem 63

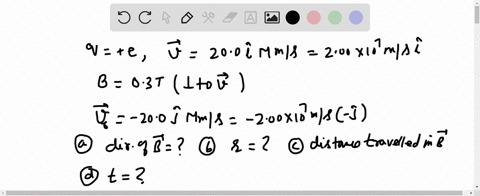

A proton having an initial velvocity of 20.0$\hat{\mathrm{i}} \mathrm{Mm} / \mathrm{s}$ enters a uniform magnetic field of magnitude 0.300 $\mathrm{T}$ with a direction perpendicular to the proton's velocity. It leaves the field-filled region with velocity $-20.0 \overrightarrow{\mathrm{j}} \mathrm{Mm} / \mathrm{s}$ . Determine (a) the direction of the magnetic field, (b) the radius of curvature of the proton’s path while in the field, (c) the distance the proton traveled in the field, and (d) the time interval during which the proton is in the field.

Khoobchandra Agrawal

Khoobchandra Agrawal

Numerade Educator

Problem 64

(a) A proton moving with velocity $\overrightarrow{\mathbf{v}}=v_{i} \hat{\mathbf{i}}$ experiences a magnetic force $\overrightarrow{\mathbf{F}}=F \hat{\mathbf{j}}$ . Explain what you can and cannot infer about $\overrightarrow{\mathbf{B}}$ from this information. (b) What If? In terms of $F_{i},$ what would be the force on a proton in the same field moving with velocity $\overrightarrow{\mathbf{v}}=-v_{i} \hat{\mathbf{i}}$ (c) What would be the force on an electron in the same field moving with velocity $\overrightarrow{\mathbf{v}}=-v_{i} \hat{\mathbf{i}}$ ?

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

Problem 65

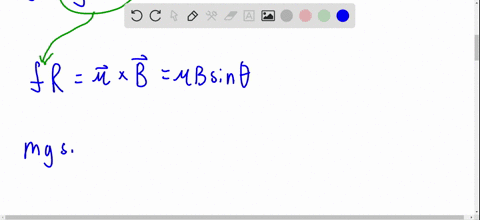

A nonconducting sphere has mass 80.0 g and radius 20.0 cm. A flat, compact coil of wire with five turns is wrapped tightly around it, with each turn concentric with the sphere. The sphere is placed on an inclined plane that slopes downward to the left (Fig. P 29.65), making an angle $\theta$ with the horizontal so that the coil is parallel to the inclined plane. A uniform magnetic field of 0.350 T vertically upward exists in the region of the sphere. (a) What current in the coil will enable the sphere to rest in equilibrium on the inclined plane? (b) Show that the result does not depend on the value of $\theta$.

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

Problem 66

Model the electric motor in a handheld electric mixer as a single flat, compact, circular coil carrying electric current in a region where a magnetic field is produced by an external permanent magnet. You need consider only one instant in the operation of the motor. (We will consider motors again in Chapter 31.) Make order-of-magnitude estimates of (a) the magnetic field, (b) the torque on the coil, (c) the current in the coil, (d) the coil’s area, and (e) the number of turns in the coil. The input power to the motor is electric, given by $P=I \Delta V,$ and the useful output power is mechanical, $P=\tau \omega.$

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

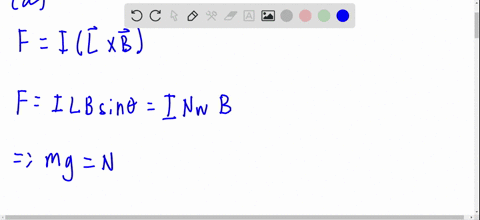

Problem 67

Figure P 29.67 shows a schematic representation of an apparatus that can be used to measure magnetic fields. A rectangular coil of wire contains N turns and has a width $w.$ The coil is attached to one arm of a balance and is suspended between the poles of a magnet. The magnetic field is uniform and perpendicular to the plane of the coil. The system is first balanced when the current in the coil is zero. When the switch is closed and the coil carries a current $I$, a mass $m$ must be added to the right side to balance the system. (a) Find an expression for the magnitude of the magnetic field. (b) Why is the result independent of the vertical dimensions of the coil? (c) Suppose the coil has 50 turns and a width of 5.00 cm. When the switch is closed, the coil carries a current of 0.300 A, and a mass of 20.0 g must be added to the right side to balance the system. What is the magnitude of the magnetic field?

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

Problem 68

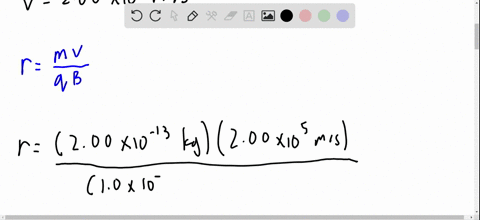

Why is the following situation impossible? Figure P 29.68 shows an experimental technique for altering the direction of travel for a charged particle. A particle of charge $q=1.00 \mu \mathrm{C}$ and mass $m=2.00 \times 10^{-13} \mathrm{kg}$ enters the bottom of the region of uniform magnetic field at speed $v=2.00 \times 10^{5} \mathrm{m} / \mathrm{s},$ with a velocity vector perpendicular to the field lines. The magnetic force on the particle causes its direction of travel to change so that it leaves the region of the magnetic field at the top traveling at an angle from its original direction. The magnetic field has magnitude $B=0.400 \mathrm{T}$ and is directed out of the page. The length $h$ of the magnetic field region is 0.110 m. An experimenter performs the technique and measures the angle $\theta$ at which the particles exit the top of the field. She finds that the angles of deviation are exactly as predicted.

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

Problem 69

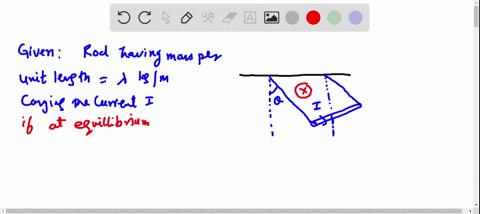

A metal rod having a mass per unit length $\lambda$ carries a current $I .$ The rod hangs from two wires in a uniform vertical magnetic field as shown in Figure P 29.69. The wires make an angle $\theta$ with the vertical when in equilibrium. Determine the magnitude of the magnetic field.

Khoobchandra Agrawal

Khoobchandra Agrawal

Numerade Educator

Problem 70

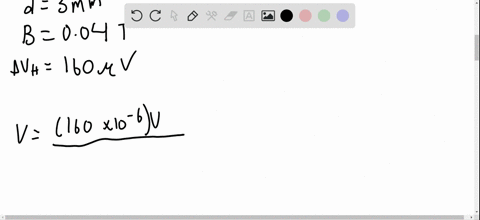

A heart surgeon monitors the flow rate of blood through an artery using an electromagnetic flow meter (Fig. P 29.70). Electrodes A and B make contact with the outer surface of the blood vessel, which has a diameter of 3.00 mm. (a) For a magnetic field magnitude of 0.040 0 T, an emf of 160$\mu \mathrm{V}$ appears between the electrodes. Calculate the speed of the blood. (b) Explain why electrode A has to be positive as shown. (c) Does the sign of the emf depend on whether the mobile ions in the blood are predominantly positively or negatively charged? Explain.

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

Problem 71

The accompanying table shows measurements of the Hall voltage and corresponding magnetic field for a probe used to measure magnetic fields. (a) Plot these data and deduce a relationship between the two variables. (b) If the measurements were taken with a current of 0.200 A and the sample is made from a material having a charge- carrier density of $1.00 \times 10^{26}$ carriers $/ \mathrm{m}^{3},$ what is the thickness of the sample?
$$\begin{array}{cc}{\frac{\Delta V_{\mathrm{H}}(\mu \mathrm{V})}{}} & {\frac{B(\mathrm{T})}{}} \\ {0} & {0.00} \\ {11} & {0.10} \\ {19} & {0.20} \\ {28} & {0.20} \\ {42} & {0.30} \\ {50} & {0.40} \\ {61} & {0.50} \\ {68} & {0.80} \\ {79} & {0.80} \\ {90} & {0.90} \\ {102} & {1.00} \\ \hline\end{array}$$

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

Problem 72

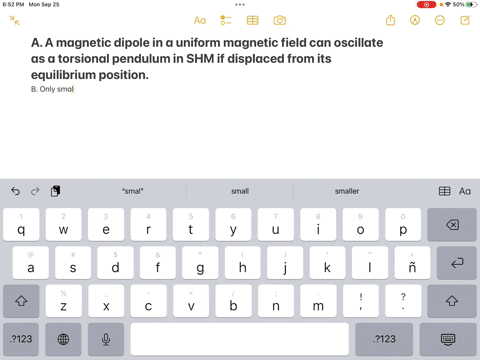

(a) Show that a magnetic dipole in a uniform magnetic field, displaced from its equilibrium orientation and released, can oscillate as a torsional pendulum (Section 15.5) in simple harmonic motion. (b) Is this statement true for all angular displacements, for all displacements less than $180^{\circ}$ , or only for small angular displacements? Explain. (c) Assume the dipole is a compass needle-a light bar magnet-with a magnetic moment of magnitude $\mu .$ It has moment of inertia $I$ about its center, where it is mounted on a friction less, vertical axle, and it is placed in a horizontal magnetic field of magnitude B. Determine its frequency of oscillation. (d) Explain how the compass needle can be conveniently used as an indicator of the magnitude of the external magnetic field. (e) If its frequency is 0.680 Hz in the Earth’s local field, with a horizontal component of 39.2$\mu \mathrm{T}$ , what is the magnitude of a field parallel to the needle in which its frequency of oscillation is 4.90 $\mathrm{Hz}^{2}$

Victor Salazar

Numerade Educator

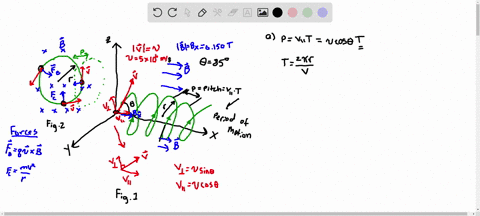

Problem 73

A uniform magnetic field of magnitude 0.150 $\mathrm{T}$ is directed along the positive $x$ axis. A positron moving at a speed of $5.00 \times 10^{6} \mathrm{m} / \mathrm{s}$ enters the field along a direction that makes an angle of $\theta=85.0^{\circ}$ with the $x$ axis (Fig. P 29.73). The motion of the particle is expected to be a helix as described in Section 29.2 . Calculate (a) the pitch $p$ and $(b)$ the radius $r$ of the trajectory as defined in Figure P 29.73.

Bradley Nordell

Bradley Nordell

Numerade Educator

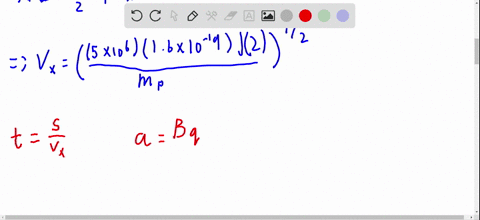

Problem 74

Protons having a kinetic energy of 5.00 $\mathrm{MeV}(1 \mathrm{eV}=1.60 \times10^{-19} \mathrm{J} )$ are moving in the positive $x$ direction and enter a magnetic field $\overrightarrow{\mathbf{B}}=0.0500 \hat{\mathbf{k}}$ T directed out of the plane of the page and extending from $x=0$ to $x=1.00 \mathrm{m}$ as shown in Figure P 29.74. (a) Ignoring relativistic effects, find the angle a between the initial velocity vector of the proton beam and the velocity vector after the beam emerges from the field. (b) Calculate the $y$ component of the protons’ momenta as they leave the magnetic field.

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

Problem 75

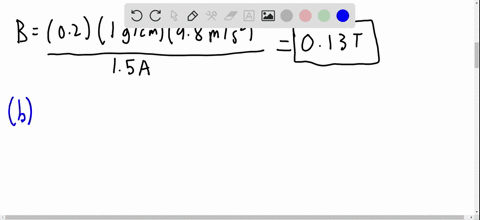

A wire having a linear mass density of 1.00 g/cm is placed on a horizontal surface that has a coefficient of kinetic friction of 0.200. The wire carries a current of 1.50 A toward the east and slides horizontally to the north at constant velocity. What are (a) the magnitude and (b) the direction of the smallest magnetic field that enables the wire to move in this fashion?

Jonathan Ibarra

Jonathan Ibarra

Numerade Educator

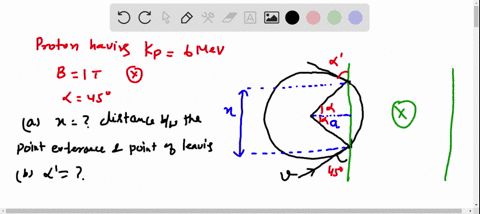

Problem 76

A proton moving in the plane of the page has a kinetic energy of 6.00 MeV. A magnetic field of magnitude $B=1.00$ $\mathrm{T}$ is directed into the page. The proton enters the magnetic field with its velocity vector at an angle $\theta=45.0^{\circ}$ to the linear boundary of the field as shown in the linear boundary of the field as shown in Figure P 29.76 . (a) Find $x,$ the distance from the point of entry to where the proton will leave the field. (b) Determine $\theta$ , the angle between the boundary and the proton's velocity vector as it leaves the field.

Khoobchandra Agrawal

Khoobchandra Agrawal

Numerade Educator

Problem 77

Consider an electron orbiting a proton and maintained in a fixed circular path of radius $R=5.29 \times 10^{-11} \mathrm{m}$ by the Coulomb force. Treat the orbiting particle as a current loop. Calculate the resulting torque when the electron– proton system is placed in a magnetic field of 0.400 T directed perpendicular to the magnetic moment of the loop.

Jacob Paiste

Numerade Educator
