Essentials of Electrical and Computer Engineering

David V. Kerns, Jr., J. David Irwin

Chapter 12

Small-Signal Transisfor Amplifiers - all with Video Answers

Educators

Chapter Questions

Problem 1

What is a small-signal transistor model?

Check back soon!

Problem 2

Define the midband frequency region. In this region what can be said about an amplifier's voltage gain?

Check back soon!
05:15

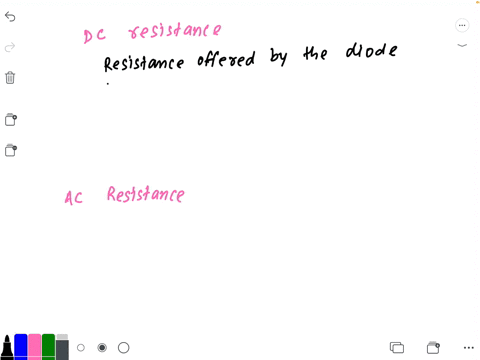

Problem 3

A $p-n$ junction diode has a forward bias applied of $0.68 \mathrm{~V}$ and is conducting $2 \mathrm{~mA}$. (a) Determine $I_o$. (b) Determine the static forward resistance. (c) Determine the ac small-signal resistance of the diode at room temperature.

Keshav Singh
Keshav Singh
Numerade Educator
05:15

Problem 4

Determine the ac resistance of a silicon diode at room temperature that is conducting $4 \mu \mathrm{A}$.

Keshav Singh
Keshav Singh
Numerade Educator
01:16

Problem 5

Two silicon diodes are connected in series and are conducting a dc current of $2 \mathrm{~mA}$; what is the ac resistance of the combination?

DW
David Walther
Numerade Educator
01:30

Problem 6

The dc current through a silicon diode is doubled. What is the effect of this on the ac resistance of the diode?

Ajay Singhal
Ajay Singhal
Numerade Educator
05:15

Problem 7

At room temperature, what is the ac resistance of a diode conducting $0.5 \mathrm{~A}$ ?

Keshav Singh
Keshav Singh
Numerade Educator

Problem 8

A two-port network as illustrated in Figure 12.2 has the following parameters: $y_{11}=0$; $y_{12}=0 ; \quad y_{21}=3.5 \times 10^{-3} \mathrm{~S} ; y_{22}=1 \times 10^{-4} \mathrm{~S}$. If an external load resistance of $12 \mathrm{k} \Omega$ is connected to the output, what is the voltage gain of this network?

Check back soon!
02:33

Problem 9

A set of $h$ parameters are provided as follows:, $h_{11}=20 \mathrm{k} \Omega ; h_{12}=0 ; h_{21}=100 ;$ and $h_{22}=1 \times 10^{-5}$. If the output is connected to an external load resistance of $50 \mathrm{k} \Omega$, determine: (a) the network's input resistance, (b) the network's current gain, (c) the network's voltage gain, (d) the network's output resistance.

Prachita Kush
Prachita Kush
Numerade Educator

Problem 10

A MOSFET in the common source configuration is modeled as a two-port network as illustrated in Figure 12.4. If $R_L=6 \mathrm{k} \Omega$, and $y_{11}=0 ; y_{12}=0 ; y_{21}=2 \times 10^{-3} \mathrm{~S}$; and $y_{22}=0$, determine the small-signal voltage gain of the amplifier.

Check back soon!

Problem 11

(a) Assume the simplified small-signal model for transistors shown in Figure 12.5 has $r_i=\infty, g_m=1.8 \times 10^{-3} \mathrm{~S}$, and $r_o=100 \mathrm{k} \Omega$. This device is placed in the circuit as shown in Figure P12.11. Calculate the small-signal voltage gain.
(b) In the amplifier circuit shown in Figure P12.11, calculate the small-signal voltage gain assuming $r_1=200 \mathrm{k} \Omega, g_m=$ $2.5 \times 10^{-3} \mathrm{~S}$, and $r_o=120 \mathrm{k} \Omega$.
Figure P12.11 can't copy

Check back soon!

Problem 12

For the $n$-channel enhancement-mode MOSFET with output curves of Figure P12.12, determine an approximate value for $g_m$ at (1) $Q$-point $Q_{P 1}$, and (2) $Q$-point $Q_{P 2}$.
Figure P12.12 can't copy

Check back soon!

Problem 13

For the MOSFET with output curves in Figure P12.12 (a) Determine the approximate value
Figure P12.12 can't copy
of $g_o$ for each $Q$-point. (b) Redraw the output curves of Figure P12.12 for a device with approximately the same $g_m$ values, but $g_o=1 \times 10^{-4} \mathrm{~S}$.

Check back soon!

Problem 14

Consider the common source circuit shown in Figure 12.11(a) with a transistor that has output curves in Figure P12.12, and (a) determine a new value for $R_2$ that will place the $Q$-point on the $V_{G S}=2.5 \mathrm{~V}$ curve. (b) Plot the dc load line to locate the $Q$-point. (c) Compute an approximate value for $g_m$ at this $Q$-point. (d) Draw a small-signal equivalent circuit for this amplifier. (e) Using the equivalent circuit, calculate the small-signal voltage gain.

Check back soon!

Problem 15

In the common source amplifier circuit in Figure P12.15, (a) draw a small signal equivalent circuit, (b) calculate the voltage gain. Assume that for this transistor, $g_m=3.0 \times 10^{-3} \mathrm{~S}$ and $g_o=1.66 \times 10^{-5} \mathrm{~S}$.
Figure P12.15 can't copy

Check back soon!

Problem 16

In the circuit in Figure P12.15, what value of $g_m$ would be required for the circuit to have a voltage gain of magnitude 10 ?

Check back soon!

Problem 17

The common gate $n$-channel enhancement mode MOSFET circuit shown in Figure 12.12(a) has new component values as follows: $R_S=1 \mathrm{k} \Omega, R_D=3 \mathrm{k} \Omega$, and $g_m$ for the transistor is determined to be $2 \times 10^{-3} \mathrm{~S}$; assume $r_o$ is infinite. (a) Draw a small-signal equivalent circuit. (b) Compute the small-signal voltage gain. (c) Determine the amplifier input resistance, $R_i$.

Check back soon!
00:50

Problem 18

If the value of $R_D$ is doubled in problem 12.17 , what is the new value of the small signal voltage gain?

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator

Problem 19

The common drain amplifier circuit shown in Figure P12.19 utilizes a transistor with $g_m=3.8 \mathrm{mS}$ and $R_S=4 \mathrm{k} \Omega$. (a) Compute the small-signal voltage gain. (b) If a different transistor is used with $g_m=10 \mathrm{mS}$, what is the new value of the voltage gain?
Figure P12.19 can't copy

Check back soon!
01:01

Problem 20

As shown in Figure 12.20, an amplifier has a voltage gain of 10 , and is driven by an input voltage source with an internal resistance of $20 \mathrm{k} \Omega$. Calculate the voltage gain of the entire circuit if the input resistance to the amplifier is
(a) $50 \mathrm{k} \Omega$,
(b) $100 \mathrm{k} \Omega$, (c) $1 \mathrm{M} \Omega$.
Figure P12.20 can't copy

Narayan Hari
Narayan Hari
Numerade Educator

Problem 21

In order to maximize the voltage gain of an amplifier circuit, state whether each of these should be made high or low in value:
(a) Source resistance
(b) Amplifier input resistance

Check back soon!
02:00

Problem 22

If the internal resistance of a voltage source is $50 \Omega$, what is the required input resistance of the amplifier in order to only lose $10 \%$ of the signal amplitude at the input?

Narayan Hari
Narayan Hari
Numerade Educator

Problem 23

An amplifier using a BJT common emitter configuration is shown in Figure P12.23. If the following parameters apply, calculate
(a) the input resistance of the amplifier and
(b) the small-signal voltage gain.
$$
r_{i b}=10 \mathrm{k} \Omega, \beta=120, r_o=200 \mathrm{k} \Omega .
$$
Figure P12.23 can't copy

Check back soon!
01:39

Problem 24

A BJT in a common emitter amplifier circuit is biased in the active region. The measured dc currents are $I_C=3 \mathrm{~mA}, I_B=15 \mu \mathrm{A}$; when $V_{C E}$ is increased $5 \mathrm{~V}, I_C$ increases $0.2 \mathrm{~mA}$. (a) Determine the small-signal model parameters for this transistor. (b) Construct a small-signal equivalent circuit for the amplifier assuming $R_{\text {Leq }}=8 \mathrm{k} \Omega$. (c) Calculate the small-signal voltage gain. (d) Calculate the amplifier's input resistance.

Chai Santi
Chai Santi
Numerade Educator
01:21

Problem 25

Repeat problem 12.23 if $R_{\text {Leq }}=100 \mathrm{k} \Omega$.

Kajal Gautam
Kajal Gautam
Numerade Educator
01:21

Problem 26

Repeat problem 12.24 if $I_B=10 \mu \mathrm{A}$.

Kajal Gautam
Kajal Gautam
Numerade Educator
01:10

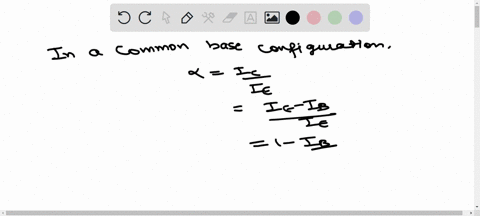

Problem 27

If the common emitter current gain of a BJT, $\beta$, is 150 , calculate the value of the common base current gain, $\alpha$.

Varsha Aggarwal
Varsha Aggarwal
Numerade Educator
01:10

Problem 28

If the common base current gain, $\alpha$, of a BJT is 0.97 , calculate the value of common emitter current gain, $\beta$.

Varsha Aggarwal
Varsha Aggarwal
Numerade Educator

Problem 29

Consider the circuit in Figure P12.29, assuming $\beta=80$ and $V_{B E}=0.7 \mathrm{~V}$. (a) Determine the dc bias currents, $I_C$ and $I_B$. (b) Construct a midband ac equivalent circuit. (c) Determine the small-signal voltage gain.
Figure P12.29 can't copy

Check back soon!

Problem 30

Repeat problem 12.29 with $\beta=180$ and $\mathrm{R}_{\mathrm{C}}=4 \mathrm{k} \Omega$.

Check back soon!
01:21

Problem 31

Repeat problem 12.29 with $R_2=4 \mathrm{k} \Omega$.

Kajal Gautam
Kajal Gautam
Numerade Educator

Problem 32

In the circuit in Figure P12.32, the external load resistance is considered infinite. For the case where $\beta=50$, (a) Calculate the dc bias currents, $I_C$ and $I_B$. (b) Calculate the value of $V_{C E}$. (c) Construct a midband ac equivalent circuit. (d) Determine the small-signal voltage gain. (Assume $V_{B E}=0.7 \mathrm{~V}$.)
Figure P12.32 can't copy

Check back soon!

Problem 33

Repeat problem 12.32 if $V_{C C}=10 \mathrm{~V}$.

Check back soon!
01:28

Problem 34

A common emitter amplifier circuit has a transistor with $\beta=100$ and $r_{i b}=2 \mathrm{k} \Omega$. If the circuit provides $R_{\text {Leq }}=6 \mathrm{k} \Omega$, what is the small-signal voltage gain?

Prachita Kush
Prachita Kush
Numerade Educator
01:11

Problem 35

A transistor with $\beta=50$ is placed in a common base amplifier circuit with $I_E=1 \mathrm{~mA}$ and $R_{\text {Leq }}=5 \mathrm{k} \Omega$. (a) What is the small-signal voltage gain? (b) Does this circuit invert the signal?

Brian Francisco
Brian Francisco
Numerade Educator

Problem 36

Sketch the small-signal common base BJT model, assuming the output resistance is high enough to be ignored. If $r_{i e}=45 \Omega$ and $\alpha=0.98$, (a) determine the dc emitter current, $I_E$, in the bias circuit. (b) Find the dc base current, $I_B$. (c) Construct a small-signal equivalent circuit for an amplifier using this model and with $v_s$ as the voltage input source, $R_s=50 \Omega, R_{\text {Leq }}=2 \mathrm{k} \Omega, \quad$ and assume $R_i=r_{i e}$. (d) Determine the small-signal voltage gain, including any loss in the input circuit; that is, find $v_o / v_s$.

Check back soon!

Problem 37

The circuit in Figure $\mathrm{P} 12.37$ uses a transistor with $\beta=120$ and $V_{B E}=-0.6 \mathrm{~V}$. Find the small-signal voltage gain.
Figure P12.37 can't copy

Check back soon!

Problem 38

A transistor is placed in a common collector circuit with $I_E=2 \mathrm{~mA}$ and $R_{\text {Leq }}=500 \Omega$. Find the small-signal voltage gain.

Check back soon!

Problem 39

A transistor with a measured $\beta=60$ is placed in the circuit in Figure P12.39; assume $V_{B E}=0.7 \mathrm{~V}$. (a) Construct an ac equivalent circuit. (b) Determine the small-signal voltage gain.
Figure P12.39 can't copy

Check back soon!

Problem 40

A common base amplifier uses a transistor with $\alpha=0.97$. If $I_E$ is measured to be $1.3 \mathrm{~mA}$, and the total effective load resistance $R_{\text {Leq }}=2.5 \mathrm{k} \Omega$, what is the small-signal voltage gain?

Check back soon!
02:10

Problem 41

Determine the composite voltage gain of three voltage amplifiers cascaded together as shown in Figure 12.21 and with gains as follows: $A_{v 1}=40, A_{v 2}=50$, and $A_{v 3}=-20$.

Kajal Gautam
Kajal Gautam
Numerade Educator
02:10

Problem 42

Repeat problem 12.41 if the voltage gains are: $A_{v 1}=30, A_{v 2}=80$, and $A_{v 3}=0.9$.

Kajal Gautam
Kajal Gautam
Numerade Educator

Problem 43

Determine the current gain of the multi-stage current amplifier comprised of two stages, $A_{i 1}=30, A_{i 2}=-15$.

Check back soon!
02:10

Problem 44

(a) Express the voltage gains of each of the stages in problem 12.41 in decibels. (b) Compute the gain for the multi-stage amplifier in $\mathrm{db}$.

Kajal Gautam
Kajal Gautam
Numerade Educator
02:10

Problem 45

The voltage gain of a multi-stage amplifier is measured to be $100 \mathrm{db}$. The gain of the first stage was calculated as $A_{v 1}=8$. Determine the total gain of the remaining stages.

Kajal Gautam
Kajal Gautam
Numerade Educator
