A crate of mass $451 \mathrm{kg}$ is being lifted by the mechanism shown in part $a$ of the figure. The two cables are wrapped around their respective pulleys, which have radii of 0.600 and $0.200 \mathrm{m}$. The pulleys are fastened together to form a dual pulley and turn as a single unit about the center axle, relative to which the combined moment of inertia is $46.0 \mathrm{kg} \cdot \mathrm{m}^{2}$ The cables roll on the dual pulley without slipping. A tension of magnitude $2150 \mathrm{N}$ is maintained in the cable attached to the motor. Find the angular acceleration of the dual pulley and the tension in the cable attached to the crate.

Key Concepts

Rotational Dynamics

Rotational dynamics concerns how torques affect the rotational motion of objects. It involves the understanding that the net torque acting on a body is equal to the product of its moment of inertia and its angular acceleration. This principle is analogous to Newton's second law in linear motion and is fundamental when analyzing systems with rotating parts such as pulleys, wheels, or gears.

Moment of Inertia

The moment of inertia is a measure of an object's resistance to angular acceleration when subjected to a torque. It depends on the mass of the object as well as the distribution of that mass relative to the axis of rotation. In problems involving rotating assemblies, knowing the moment of inertia is essential to determine how quickly an object can change its rotational state under a given torque.

Relationship Between Linear and Angular Motion

The relationship between linear and angular motion bridges translational kinematics with rotational kinematics. Specifically, it states that the tangential (linear) acceleration at the rim of a rotating object is equal to the angular acceleration multiplied by the radius. This concept is crucial when translating the rotational behavior of a pulley to the linear motion of a connected mass or vice versa.

Newton's Second Law in Translation and Rotation

Newton's second law in translation states that the net force on an object equals its mass times its linear acceleration, while in rotation, it states that the net torque equals the moment of inertia times the angular acceleration. This dual application of Newton's second law allows the analysis of systems where both linear and rotational motions are interconnected, helping to solve for unknown forces, tensions, or accelerations in complex mechanical setups.

Pulley Systems and Torque

Pulley systems are commonly used to change the direction of a force and to gain a mechanical advantage in lifting loads. In a system where multiple pulleys or a dual pulley is used, different radii can produce different torques from the same applied tension. Analyzing these systems involves calculating the torques produced by the tensions and equating them to the moment of inertia times the angular acceleration, while also considering any interactions between the linear and rotational parts of the system.

Transcript

00:01 Hello, my name is david.

00:02 In this video we will cover the torque and moment of inertia of a dual pulley so for this problem we have a crate with a mass of 451 kilograms being lifted by the dual pulley in figure a where the radite of each of the pulle is 1 .600 meters and point 200 meters and their combined moment of inertia is equal to 46 .0 kilograms meter square and and the tension of the cable attached to the motor is equal to 2150 newtons.

00:59 And this tension is maintained.

01:03 Okay, so we want to find the angular acceleration and the tension on the cable attached to the crate.

01:11 So we want to find the angular acceleration and the tension of the cable attached to the crate.

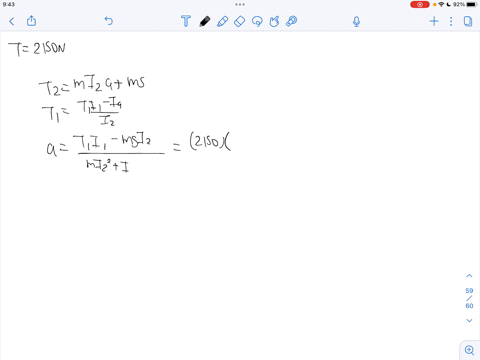

01:19 So let's start by applying the newton second load.

01:23 To the free body diagram of the crate.

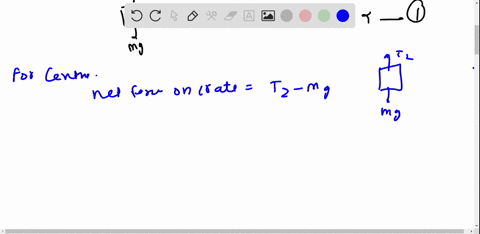

01:26 So we have the net force is equal to the mass times the acceleration in the wide direction.

01:35 So now since the tension in the cable attached to the motor is maintained, that means that the velocity is going to be constant.

01:43 So if the velocity is constant, that means that the acceleration is going to be zero.

01:47 So the net force is going to be equal to zero.

01:53 So the two forces acting on the crate are the tension and the weight.

01:59 So we have the tension minus the weight is equal to zero, which means that they're going to be equal to each other.

02:09 So the tension of the cable attached to the crate is going to be the mass times the acceleration due to gravity.

02:17 So it's going to be 451 kilograms times 9 .8 meters per second square.

02:30 So we plug that into the calculator...
