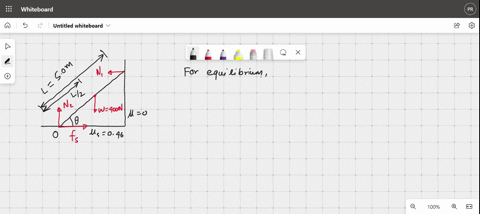

A uniform ladder whose length is 5.0 $\mathrm{m}$ and whose weight is 400 $\mathrm{N}$ leans against a frictionless vertical wall. The coefficient of static friction between the level ground and the foot of the ladder is $0.46 .$ What is the greatest distance the foot of the ladder can be placed from the base of the wall without the ladder immediately slipping?

A uniform ladder whose length is 5.0 $\mathrm{m}$ and whose weight is 400 $\mathrm{N}$ leans against a frictionless vertical wall. The coefficient of static friction
between the level ground and the foot of the ladder is $0.46 .$ What is the
greatest distance the foot of the ladder can be placed from the base of
the wall without the ladder immediately slipping?

Key Concepts

Force Decomposition

Breaking forces into perpendicular components (usually horizontal and vertical) is vital for analyzing the equilibrium of an object. In the context of the ladder, forces such as gravity, friction, and normal forces are decomposed into their respective components to apply the equilibrium conditions effectively and solve for unknown distances or tensions.

Static Friction

Static friction is the force that resists the initiation of sliding motion between two surfaces in contact. Its maximum value is characterized by the coefficient of static friction multiplied by the normal force. This concept is crucial in determining the conditions under which the ladder remains stationary without slipping at the base.

Center of Mass

For a uniform object, the center of mass is the point where its mass is evenly distributed, often referred to as the weight acting point. In the ladder problem, the weight is assumed to act at the midpoint, which is essential for calculating the torque due to gravity about any pivot point.

Torque

Torque is the rotational equivalent of force, determined by the product of a force and its moment arm relative to a pivot point. In equilibrium problems, torques are calculated about a strategic point (often chosen to simplify the problem by eliminating certain unknowns) to set up a balance condition which allows solving for other quantities like distances or forces.

Static Equilibrium

This concept involves ensuring that a system is at rest, meaning that the sum of all forces and the sum of all torques acting on the system must be zero. In problems like the ladder scenario, both translational and rotational equilibrium conditions are applied to analyze the forces acting on the ladder and determine the limits before motion begins.
