An abc-sequence three-phase voltage sourconnected in a balanced wye has a line vor age of 𝐕a b=2

Step 1: Identify the relationship between line voltage and phase voltage in a balanced wye conne

An abc-sequence three-phase voltage sourconnected in a...

Key Concepts

Balanced Three-Phase Systems

A balanced three-phase system has all phase voltages equal in magnitude and displaced equally in phase (typically 120° apart). This ensures symmetrical loading and steady power transfer, which is important for efficient power distribution and equipment operation.

Wye (Star) Connection

In a wye connection, each phase voltage is connected from a common neutral point to a corresponding line. This configuration introduces a relationship between line voltages and phase voltages, where the line-to-line voltage is ?3 times the phase voltage, with an additional angle shift, typically by 30°.

Line-to-Line and Phase Voltage Relationship

The relationship between line-to-line voltage and phase voltage in a balanced wye system is given by V_LL = ?3 * V_Phase with a phase shift of ±30°. This conversion is important for translating measurements taken between lines into the corresponding phase voltages in the source.

Phasor Representation and Angle Conversions

Phasors are used to represent sinusoidal functions in terms of magnitude and phase angle. This simplifies the analysis of AC circuits by converting differential equations into algebraic equations, allowing for easy manipulation of angles and magnitudes when interested in voltage or current relationships.

ABC Phase Sequence

The ABC or positive phase sequence indicates the order in which the phase voltages reach their maximum values. This ordering is crucial for ensuring proper operation of three-phase equipment, as it determines the rotation direction in machines such as motors.

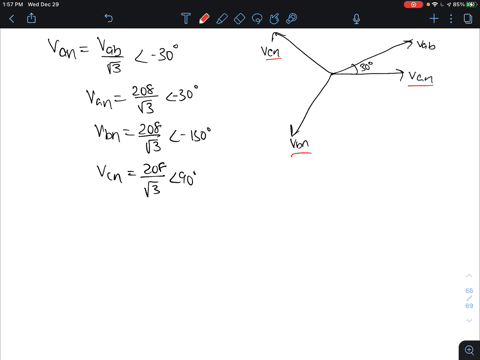

An abc-sequence three-phase voltage sourconnected in a balanced wye has a line vor age of $\mathbf{V}_{a b}=208 \angle 175^{\circ} \mathrm{V}$ rms. Find phase voltages of the source.
