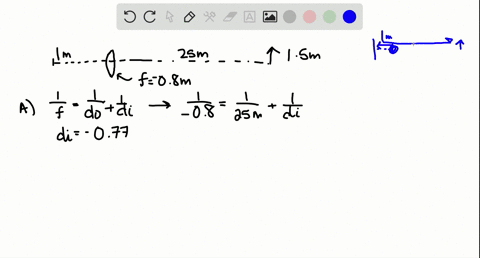

Consider a typical diverging passenger-side mirror with a focal length of $-80 \mathrm{cm} .$ A $1.5-\mathrm{m}$ -tall cyclist on a bicycle is $25 \mathrm{m}$ from the mirror. You are $1.0 \mathrm{m}$ from the mirror, and suppose, for simplicity, that the mirror, you, and the cyclist all lie along a line. a. How far are you from the image of the cyclist? b. What is the image height?

Consider a typical diverging passenger-side mirror with a focal length of $-80 \mathrm{cm} .$ A $1.5-\mathrm{m}$ -tall cyclist on a bicycle is $25 \mathrm{m}$ from the mirror. You are $1.0 \mathrm{m}$ from the mirror, and suppose, for simplicity, that the mirror, you, and the cyclist all lie along a line.
a. How far are you from the image of the cyclist?
b. What is the image height?

Key Concepts

Diverging Mirror

A diverging mirror, often convex, has a surface that curves outward. These mirrors always form images that are virtual, upright, and reduced in size, meaning the light rays appear to come from a point behind the mirror even though they actually diverge. They are commonly used in applications such as passenger-side mirrors because they provide a wider field of view.

Mirror Equation

The mirror equation, given by 1/f = 1/d_o + 1/d_i, relates the object distance (d_o), image distance (d_i), and the focal length (f) of the mirror. In the case of a diverging mirror, the focal length is negative, and this sign convention helps determine that the image distance will also be negative, indicating that the image formed is virtual.

Magnification

Magnification in mirror systems is defined as m = -d_i/d_o, which relates the height of the image to the height of the object. This formula not only provides the size relationship between the object and its image but also indicates the orientation of the image; a positive magnification value corresponds to an upright image, which is typically the case for diverging mirrors.

Virtual Image Formation

Virtual images are formed by diverging mirrors when the reflected rays do not actually converge to form the image but instead appear to originate from a point behind the mirror. This concept is central to understanding the nature of images in diverging mirrors, as these images cannot be projected on a screen and are observed by looking into the mirror.
