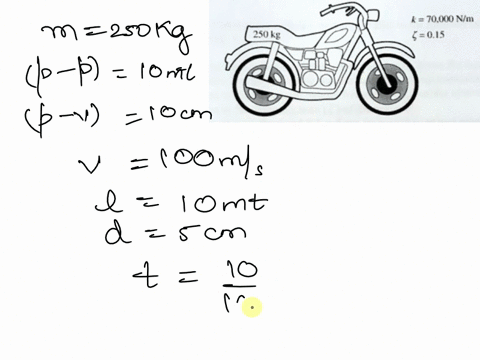

Consider the one-degree-of-freedom model of a vehicle suspension system of Example 3.7 and Fig. 3.23. Consider a motorcycle of mass $250 \mathrm{~kg}$. The suspension stiffness is $70,000 \mathrm{~N} / \mathrm{m}$ and the darnping ratio is 0.15 . The moturcycle traveis over a temain that is approximately sinusoidal with a distance between peaks of $10 \mathrm{~m}$ and the distance from peak to valley is $10 \mathrm{~cm}$. What is the acceleration amplitude felt by the motorcycle rider when she is traveling at (a) $30 \mathrm{~m} / \mathrm{s}$ (b) $60 \mathrm{~m} / \mathrm{s}$ (c) $120 \mathrm{~m} / \mathrm{s}$

Consider the one-degree-of-freedom model of a vehicle suspension system of Example 3.7 and Fig. 3.23. Consider a motorcycle of mass $250 \mathrm{~kg}$. The suspension stiffness is $70,000 \mathrm{~N} / \mathrm{m}$ and the darnping ratio is 0.15 . The moturcycle traveis over a temain that is approximately sinusoidal with a distance between peaks of $10 \mathrm{~m}$ and the distance from peak to valley is $10 \mathrm{~cm}$. What is the acceleration amplitude felt by the motorcycle rider when she is traveling at
(a) $30 \mathrm{~m} / \mathrm{s}$
(b) $60 \mathrm{~m} / \mathrm{s}$
(c) $120 \mathrm{~m} / \mathrm{s}$

Key Concepts

Frequency Response Analysis

Frequency response analysis involves studying how a system reacts to different frequencies of external excitation. In the context of vehicle dynamics, it helps determine the acceleration amplitude by analyzing the ratio between forcing frequency (which depends on travel speed and road spacing) and the system's natural frequency. This analysis is critical for designing suspensions that minimize discomfort and improve vehicle handling.

Forced Vibration and Sinusoidal Excitation

Forced vibration occurs when an external periodic force, such as a sinusoidal road profile, excites a system. Sinusoidal excitation is a common method to model periodic disturbances like road surface undulations. Understanding the response of a mass-spring-damper system to sinusoidal inputs is essential for predicting the amplitude of vibrations and accelerations experienced by a vehicle under varying speeds.

Damping Ratio

The damping ratio is a dimensionless parameter that measures the amount of damping in a system relative to critical damping. It is used to predict whether a system will overshoot, oscillate, or return to equilibrium without oscillations. In vehicle suspensions, the damping ratio helps determine how quickly the system settles after a disturbance and influences the amplitude of vibrations experienced by passengers.

Mass-Spring-Damper System

This fundamental system consists of a mass, a spring (representing stiffness), and a damper (representing energy dissipation). It is used to capture the dynamic behavior of systems subject to oscillatory forces, where the spring provides a restoring force and the damper provides resistance to motion. In vehicle dynamics, this system helps quantify vibrations, resonance, and the influence of road inputs on the ride comfort.

One-Degree-of-Freedom Vibration Model

This model represents a system where a single mass is connected to a spring and damper. It is used to analyze oscillatory behavior in mechanical systems by simplifying the complex dynamics of real-world structures. In the context of vehicle suspensions, it allows engineers to model and study how a vehicle body responds to road irregularities using basic vibration theory.
