Draw motion diagrams for (a) an object moving to the right...

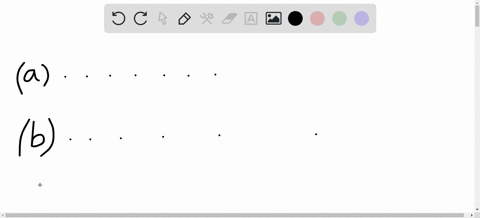

Draw motion diagrams for (a) an object moving to the right at constant speed, (b) an object moving to the right and speeding up at a constant rate, $(c)$ an object moving to the right and slowing down at a constant rate, (d) an object moving to the left and speeding up at a constant rate, and (e) an object moving to the left and slowing down at a constant rate. (f) How would your drawings change if the changes in speed were not uniform; that is, if the speed were not changing at a constant rate?

Key Concepts

Non-uniform Acceleration

When the speed of an object changes at a rate that is not constant, the acceleration is non-uniform. In a motion diagram, this results in dot spacing that does not change consistently; the intervals between positions vary irregularly. This indicates variable acceleration, where the rate of speed change itself may be accelerating or decelerating.

Direction of Motion

The direction of motion is crucial in interpreting motion diagrams. Motion to the right versus motion to the left is typically represented with an arrow or merely the orientation of the dot progression, and it affects the sign of the velocity. The diagrams must be clearly labeled or oriented so that the analyst knows which way the object is moving.

Motion Diagrams

Motion diagrams are visual representations of an object's position at successive, equally spaced time intervals. Each dot on the diagram represents the object's position at a specific moment, and the spacing between dots indicates changes in speed and acceleration. They provide an intuitive way to understand and analyze the kinematics of moving objects.

Constant Speed (Uniform Motion)

Constant speed, or uniform motion, is characterized by equal distances covered in equal time intervals. In motion diagrams, this is depicted by dots that are equally spaced along the path, indicating that the object is moving at a steady rate without acceleration.

Constant Acceleration (Uniform Acceleration)

Constant acceleration means that the object's speed is changing at a constant rate. In motion diagrams, speeding up is shown by increasing distances between successive dots, while slowing down is depicted by decreasing distances between dots. This consistent change in spacing reflects the uniformity of the acceleration.
