Four capacitors are connected as shown in Figure P26.21. (a)...

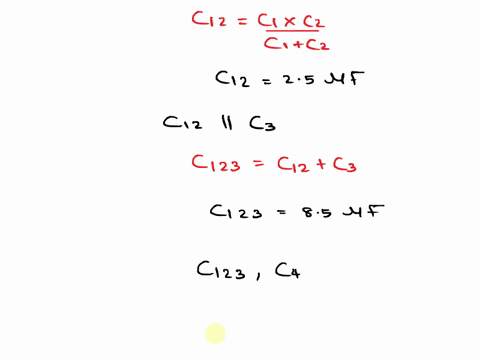

Four capacitors are connected as shown in Figure P26.21. (a) Find the equivalent capacitance between points $a$ and $b$ . (b) Calculate the charge on each capacitor if $\Delta V_{a b}=15.0 \mathrm{V}$ .

Key Concepts

Voltage Distribution in Circuits

Voltage distribution in circuits refers to the way the total voltage is divided among various circuit elements, such as capacitors. In series configurations, the voltage divides among the components based on their individual capacitances, while in parallel configurations, all components share the same voltage. This concept is crucial for analyzing potential differences across multiple elements in a circuit.

Equivalent Capacitance

The concept of equivalent capacitance involves replacing a network of capacitors with a single capacitor that has the same electrical effect on the circuit. Calculating the equivalent capacitance depends on whether the capacitors are connected in series, parallel, or a combination of both, thereby simplifying complex circuits to facilitate further analysis.

Charge Distribution on Capacitors

Charge distribution involves understanding how electrical charge is allocated on each capacitor when they are connected within a circuit. In series connections, each capacitor holds the same amount of charge, whereas in parallel connections, the charge on each capacitor is determined by its capacitance and the common voltage applied. This relationship is key for determining the individual capacitor properties within a connected network.

Capacitors

Capacitors are electronic components that store electrical energy in an electric field, characterized by their capacitance, which is a measure of the amount of charge they can store per unit voltage. Understanding capacitors is essential for analyzing how charge and energy are stored and discharged in electrical circuits.

Series and Parallel Configurations

Series and parallel configurations refer to the ways in which capacitors are connected in a circuit. In series connections, the same charge passes through each capacitor while the voltages add up, whereas in parallel connections, all capacitors experience the same voltage across them. These configurations determine how capacitors collectively behave, particularly in terms of equivalent capacitance.
