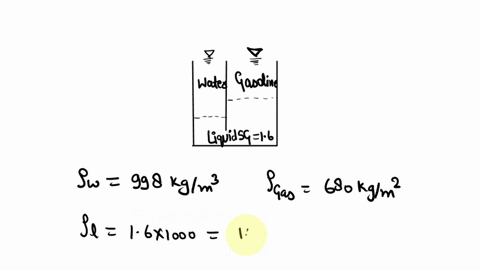

In Fig. P2.13 the 20^∘ C water and gasoline surfaces are...

Key Concepts

Hydrostatic Pressure

Hydrostatic pressure is the pressure exerted by a fluid at rest due to the weight of the fluid above a given point. It is calculated using the formula P = ?gh, where ? represents the density of the fluid, g is the acceleration due to gravity, and h is the height of the fluid column above the point of interest. This concept is fundamental for analyzing pressure in fluid systems.

Pressure Equilibrium in Connected Fluids

Pressure equilibrium in connected fluids ensures that, at the same horizontal level in a static fluid system, the pressure is uniform regardless of the fluid above. This principle allows us to set up equations that relate the heights and densities of different attached fluid columns, providing a basis to solve for unknown levels in multi-fluid systems.

Manometer

A manometer is an instrument that uses the heights of fluid columns to measure pressure differences. It typically consists of a U-shaped tube filled with one or more liquids. The differences in column heights, influenced by the density of each fluid, are used along with hydrostatic principles to calculate unknown pressures or heights, making it a practical application of hydrostatic pressure and equilibrium.

Density Differences

Differences in fluid density play a crucial role in determining the distribution of hydrostatic pressure in a system. For liquids with varying densities in a manometer or connected vessel, the heights of the columns are inversely related to their densities when the system is in pressure balance. This relationship is essential for solving problems involving multiple fluids with distinct physical properties.
