Fluid Mechanics

Frank M. White

Chapter 2

Pressure Distribution in a Fluid - all with Video Answers

Educators

+ 1 more educators

Chapter Questions

03:44

Problem 1

For the two-dimensional stress field shown in Fig. P2.1 it is found that
$$\sigma_{x x}=3000 \mathrm{lbf} / \mathrm{ft}^{2} \quad \sigma_{y y}=2000 \mathrm{lbf} / \mathrm{ft}^{2} \quad \sigma_{x y}=500 \mathrm{lbf} / \mathrm{ft}^{2}$$
Find the shear and normal stresses (in $\operatorname{lbf} / \mathrm{ft}^{2}$ ) acting on plane $A A$ cutting through the element at a $30^{\circ}$ angle as shown.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
04:24

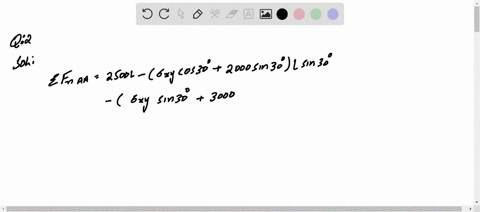

Problem 2

For the two-dimensional stress field shown in Fig. P2.1 suppose that $\sigma_{x x}=2000 \operatorname{lbf} / \mathrm{ft}^{2} \sigma_{y y}=3000 \operatorname{lbf} / \mathrm{ft}^{2} \sigma_{n}(A A)=2500 \mathrm{lbf} / \mathrm{ft}^{2}$
Compute $(a)$ the shear stress $\sigma_{x y}$ and $(b)$ the shear stress on plane $A A$

Hunza Gilgit
Hunza Gilgit
Numerade Educator
01:43

Problem 3

A vertical, clean, glass piezometer tube has an inside diameter of $1 \mathrm{mm}$. When pressure is applied, water at $20^{\circ} \mathrm{C}$ rises into the tube to a height of $25 \mathrm{cm} .$ After correcting for surface tension, estimate the applied pressure in Pa.

Supratim Pal
Supratim Pal
Numerade Educator
02:09

Problem 4

Pressure gages, such as the bourdon gage in Fig. P2.4, are calibrated with a deadweight piston. If the bourdon gage is designed to rotate the pointer 10 degrees for every
2 psig of internal pressure, how many degrees does the pointer rotate if the piston and weight together total 44 newtons?

Abid Hussain
Abid Hussain
Numerade Educator
03:29

Problem 5

Quito, Ecuador, has an average altitude of $9350 \mathrm{ft}$. On a standard day, pressure gage A in a laboratory experiment reads $63 \mathrm{kPa}$ and gage $\mathrm{B}$ reads $105 \mathrm{kPa}$. Express these readings in gage pressure or vacuum pressure, whichever is appropriate.

Ajay Singhal
Ajay Singhal
Numerade Educator
03:01

Problem 6

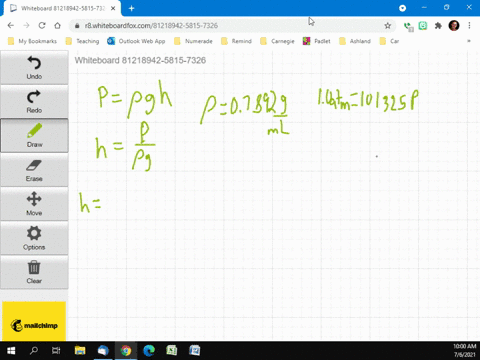

Any pressure reading can be expressed as a length or head, $h=p / \rho g .$ What is standard sea-level pressure expressed in $(a)$ ft of glycerin, $(b)$ inHg, $(c) \mathrm{m}$ of water, and $(d) \mathrm{mm}$ of ethanol? Assume all fluids are at $20^{\circ} \mathrm{C}$

Sophie S
Sophie S
Numerade Educator
03:10

Problem 7

La Paz, Bolivia, is at an altitude of approximately $12,000 \mathrm{ft}$. Assume a standard atmosphere. How high would the liquid rise in a methanol barometer, assumed at $20^{\circ} \mathrm{C} ?$

Donald Albin
Donald Albin
Numerade Educator
01:37

Problem 8

Suppose, which is possible, that there is a half-mile deep lake of pure ethanol on the surface of Mars. Estimate the absolute pressure, in $\mathrm{Pa}$, at the bottom of this speculative lake.

Averell Hause
Averell Hause
Carnegie Mellon University
03:47

Problem 9

A storage tank, $26 \mathrm{ft}$ in diameter and $36 \mathrm{ft}$ high, is filled with SAE $30 \mathrm{W}$ oil at $20^{\circ} \mathrm{C}$. ( $a$ ) What is the gage pressure, in $\mathrm{lbf} / \mathrm{in}^{2},$ at the bottom of the tank? $(b)$ How does your result in $(a)$ change if the tank diameter is reduced to 15 ft?
(c) Repeat ( $a$ ) if leakage has caused a layer of 5 ft of water to rest at the bottom of the (full) tank.

Kudakwashe Mapiki
Kudakwashe Mapiki
Numerade Educator
01:38

Problem 10

A large open tank is open to sea-level atmosphere and filled with liquid, at $20^{\circ} \mathrm{C}$, to a depth of $50 \mathrm{ft}$. The absolute pressure at the bottom of the tank is approximately $221.5 \mathrm{kPa}$ From Table A.3, what might this liquid be?

Hubert Agamasu
Hubert Agamasu
Numerade Educator
04:13

Problem 11

In Fig. P2.11, pressure gage $A$ reads 1.5 kPa (gage). The fluids are at $20^{\circ} \mathrm{C}$. Determine the elevations $z,$ in meters, of the liquid levels in the open piezometer tubes $B$ and $C$.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
02:02

Problem 12

In Fig. $\mathrm{P} 2.12$ the tank contains water and immiscible oil at $20^{\circ} \mathrm{C}$. What is $h$ in $\mathrm{cm}$ if the density of the oil is $898 \mathrm{kg} / \mathrm{m}^{3} ?$

Hunza Gilgit
Hunza Gilgit
Numerade Educator
02:28

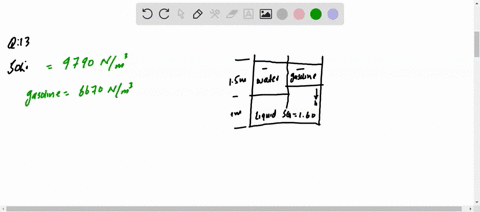

Problem 13

In Fig. P2.13 the $20^{\circ} \mathrm{C}$ water and gasoline surfaces are open to the atmosphere and at the same elevation. What is the height $h$ of the third liquid in the right leg?

Hunza Gilgit
Hunza Gilgit
Numerade Educator
03:04

Problem 14

For the three-liquid system shown, compute $h_{1}$ and $h_{2}$ Neglect the air density.

Sophie S
Sophie S
Numerade Educator
03:52

Problem 15

The air-oil-water system in Fig. P2.15 is at $20^{\circ} \mathrm{C}$. Knowing that gage $A$ reads 15 lbf/in $^{2}$ absolute and gage $B$ reads 1.25 lbf/in $^{2}$ less than gage $C,$ compute (a) the specific weight of the oil in $1 \mathrm{bf} / \mathrm{ft}^{3}$ and $(b)$ the actual reading of gage $C$ in $16 f /$ in $^{2}$ absolute.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
View

Problem 16

If the absolute pressure at the interface between water and mercury in Fig. $\mathrm{P} 2.16$ is $93 \mathrm{kPa}$, what, in $\mathrm{lbf} / \mathrm{ft}^{2},$ is $(a)$ the pressure at the surface and ( $b$ ) the pressure at the bottom of the container?

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 17

The system in Fig. $\mathrm{P} 2.17$ is at $20^{\circ} \mathrm{C}$. Determine the height $h$ of the water in the left side.

Victor Salazar
Victor Salazar
Numerade Educator
01:30

Problem 18

The system in Fig. $\mathrm{P} 2.18$ is at $20^{\circ} \mathrm{C}$. If atmospheric pressure is $101.33 \mathrm{kPa}$ and the pressure at the bottom of the tank is $242 \mathrm{kPa}$, what is the specific gravity of fluid $X ?$

Hubert Agamasu
Hubert Agamasu
Numerade Educator
04:00

Problem 19

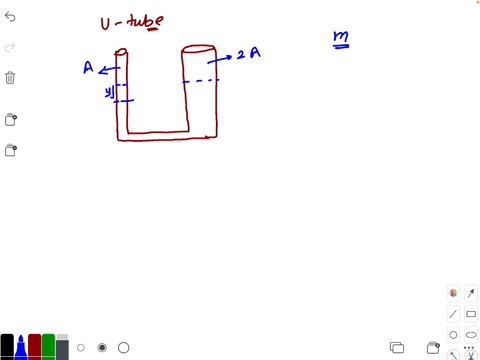

The U-tube in Fig. P2.19 has a $1-\mathrm{cm}$ ID and contains mercury as shown. If $20 \mathrm{cm}^{3}$ of water is poured into the right hand leg, what will the free-surface height in each leg be after the sloshing has died down?

Susan Hallstrom
Susan Hallstrom
Numerade Educator
03:47

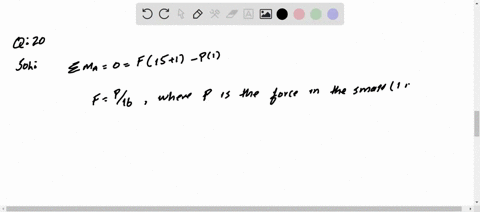

Problem 20

The hydraulic jack in Fig. $\mathrm{P} 2.20$ is filled with oil at $56 \mathrm{lbf} / \mathrm{ft}^{3}$ Neglecting the weight of the two pistons, what force $F$ on the handle is required to support the 2000 -lbf weight for this design?

Hunza Gilgit
Hunza Gilgit
Numerade Educator
02:52

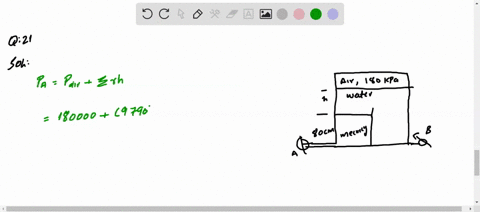

Problem 21

At $20^{\circ} \mathrm{C}$ gage $A$ reads $350 \mathrm{kPa}$ absolute. What is the height $h$ of the water in $\mathrm{cm} ?$ What should gage $B$ read in $\mathrm{kPa}$ absolute? See Fig. P2.21.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
10:04

Problem 22

The fuel gage for a gasoline tank in a car reads proportional to the bottom gage pressure as in Fig. P2.22. If the tank is $30 \mathrm{cm}$ deep and accidentally contains $2 \mathrm{cm}$ of water plus gasoline, how many centimeters of air remain at the top when the gage erroneously reads "full"?

Prabhat Tyagi
Prabhat Tyagi
Numerade Educator
10:04

Problem 23

The fuel gage for a gasoline tank in a car reads proportional to the bottom gage pressure as in Fig. P2.22. If the tank is $30 \mathrm{cm}$ deep and accidentally contains $2 \mathrm{cm}$ of water plus gasoline, how many centimeters of air remain at the top when the gage erroneously reads "full"?

Prabhat Tyagi
Prabhat Tyagi
Numerade Educator
04:04

Problem 24

In Prob. 1.2 we made a crude integration of the density distribution $\rho(z)$ in Table $A .6$ and estimated the mass of the earth's atmosphere to be $m \approx 6 \mathrm{E} 18 \mathrm{kg}$. Can this result be used to estimate sea-level pressure on the earth? Conversely, can the actual sea-level pressure of $101.35 \mathrm{kPa}$ be used to make a more accurate estimate of the atmospheric mass?

Hunza Gilgit
Hunza Gilgit
Numerade Educator
05:27

Problem 25

As measured by NASA's Viking landers, the atmosphere of Mars, where $g \approx 3.71 \mathrm{m} / \mathrm{s}^{2},$ is almost entirely carbon dioxide, and the surface pressure averages 700 Pa. The temperature is cold and drops off exponentially: $T \approx T_{\mathrm{o}} \mathrm{e}^{-\mathrm{C}_{2}}$ where $C=1.3 \mathrm{E}-5 \mathrm{m}^{-1}$ and $T_{\mathrm{o}}=250 \mathrm{K} .$ For example,
at $20,000 \mathrm{m}$ altitude, $T \approx 193 \mathrm{K}$. (a) Find an analytic formula for the variation of pressure with altitude.
(b) Find the altitude where pressure on Mars has dropped
to 1 pascal.

Eric Mockensturm
Eric Mockensturm
Numerade Educator
08:39

Problem 26

For gases that undergo large changes in height, the linear approximation, Eq. $(2.14),$ is inaccurate. Expand the troposphere power-law, Eq. $(2.20),$ into a power series, and show that the linear approximation $p \approx p_{a}-\rho_{a} g z$ is adequate when $$\delta z \ll \frac{2 T_{0}}{(n-1) B} \quad \text { where } n=\frac{g}{R B}$$

Keshav Singh
Keshav Singh
Numerade Educator
03:44

Problem 27

Conduct an experiment to illustrate atmospheric pressure. Note: Do this over a sink or you may get wet! Find a drinking glass with a very smooth, uniform rim at the top. Fill the glass nearly full with water. Place a smooth, light, flat plate on top of the glass such that the entire rim of the glass is covered. A glossy postcard works best. A small index card or one flap of a greeting card will also work. See Fig. $\mathrm{P} 2.27 a$
(a) Hold the card against the rim of the glass and turn the glass upside down. Slowly release pressure on the card. Does the water fall out of the glass? Record your experimental observations. ( $b$ ) Find an expression for the pressure at points 1 and 2 in Fig. $\mathrm{P} 2.27 b$. Note that the glass is now inverted, so the original top rim of the glass is at the bottom of the picture, and the original bottom of the glass is at the top of the picture. The weight of the card can be neglected. (c) Estimate the theoretical maximum glass height at which this experiment could still work, such that the water would not fall out of the glass.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
01:28

Problem 28

A correlation of computational fluid dynamics results indicates that, all other things being equal, the distance traveled by a well-hit baseball varies inversely as the 0.36 power of the air density. If a home-run ball hit in Citi Field in New York travels $400 \mathrm{ft}$, estimate the distance it would travel in
$(a)$ Quito, Ecuador, and
(b) Colorado Springs, CO.

James Kiss
James Kiss
Numerade Educator
02:03

Problem 29

Follow up on Prob. $\mathrm{P} 2.8$ by estimating the altitude on Mars where the pressure has dropped to 20 percent of its surface value. Assume an isothermal atmosphere, not the exponential variation of P2.25.

Lucas Finney
Lucas Finney
Numerade Educator
02:23

Problem 30

For the traditional equal-level manometer measurement in Fig. E2.3, water at $20^{\circ} \mathrm{C}$ flows through the plug device from $a$ to $b$. The manometer fluid is mercury. If $L=12 \mathrm{cm}$ and $h=24 \mathrm{cm},(a)$ what is the pressure drop through the device? ( $b$ ) If the water flows through the pipe at a velocity $V=18 \mathrm{ft} / \mathrm{s},$ what is the dimensionless loss coefficient of the device, defined by $K=\Delta p /\left(\rho V^{2}\right) ?$ We will study loss coefficients in Chap. 6

Hunza Gilgit
Hunza Gilgit
Numerade Educator
03:15

Problem 31

In Fig. $\mathrm{P} 2.31$ all fluids are at $20^{\circ} \mathrm{C}$. Determine the pressure difference (Pa) between points $A$ and $B$.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
02:36

Problem 32

For the inverted manometer of Fig. $\mathrm{P} 2.32,$ all fluids are at $20^{\circ} \mathrm{C} .$ If $p_{B}-p_{A}=97 \mathrm{kPa},$ what must the height $\mathrm{H} \mathrm{be}$ in $\mathrm{cm} ?$

Hunza Gilgit
Hunza Gilgit
Numerade Educator
03:29

Problem 33

In Fig. $\mathrm{P} 2.33$ the pressure at point $A$ is 25 lbf/in $^{2}$. All fluids are at $20^{\circ} \mathrm{C}$. What is the air pressure in the closed chamber $B,$ in $\operatorname{Pa} ?$

Hunza Gilgit
Hunza Gilgit
Numerade Educator
04:51

Problem 34

Sometimes manometer dimensions have a significant effect. In Fig. $P 2.34$ containers $(a)$ and $(b)$ are cylindrical and conditions are such that $p_{a}=p_{b} .$ Derive a formula for the pressure difference $p_{a}-p_{b}$ when the oil-water interface on the right rises a distance $\Delta h<h,$ for $(a) d \ll D$ and $(b) d=$
$0.15 D .$ What is the percentage change in the value of $\Delta p ?$

Raushan Kumar
Raushan Kumar
Numerade Educator
02:23

Problem 35

Water flows upward in a pipe slanted at $30^{\circ},$ as in Fig. $\mathrm{P} 2.35$ The mercury manometer reads $h=12 \mathrm{cm} .$ Both fluids are at $20^{\circ} \mathrm{C}$. What is the pressure difference $p_{1}-p_{2}$ in the pipe?

Hunza Gilgit
Hunza Gilgit
Numerade Educator
02:16

Problem 36

In Fig. $\mathrm{P} 2.36$ both the tank and the tube are open to the atmosphere. If $L=2.13 \mathrm{m},$ what is the angle of tilt $\theta$ of the tube?

Hunza Gilgit
Hunza Gilgit
Numerade Educator
01:23

Problem 37

The inclined manometer in Fig. $\mathrm{P} 2.37$ contains Meriam red manometer oil, $\mathrm{SG}=0.827 .$ Assume that the reservoir is very large. If the inclined arm is fitted with graduations 1 in apart, what should the angle $\theta$ be if each graduation corresponds to 1 lbf/ft $^{2}$ gage pressure for $p_{A} ?$

Penny Riley
Penny Riley
Numerade Educator
00:42

Problem 38

If the pressure in container $A$ in Fig. $\mathrm{P} 2.38$ is $200 \mathrm{kPa}$ compute the pressure in container $B$

Mayukh Banik
Mayukh Banik
Numerade Educator
01:04

Problem 39

In Fig. $\mathrm{P} 2.39$ the right leg of the manometer is open to the atmosphere. Find the gage pressure, in $\mathrm{Pa}$, in the air gap in the tank.

David Collins
David Collins
Numerade Educator
03:29

Problem 40

In Fig. $\mathrm{P} 2.40,$ if pressure gage $A$ reads $20 \mathrm{lbf} / \mathrm{in}^{2}$ absolute find the pressure in the closed air space $B$. The manometer fluid is Meriam red oil, $\mathrm{SG}=0.827$

Hunza Gilgit
Hunza Gilgit
Numerade Educator
02:20

Problem 41

The system in Fig. $\mathrm{P} 2.41$ is at $20^{\circ} \mathrm{C}$. Compute the pressure at point $A$ in $\operatorname{lbf} / \mathrm{ft}^{2}$ absolute.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
01:56

Problem 42

Very small pressure differences $p_{A}-p_{B}$ can be measured accurately by the two-fluid differential manometer in Fig. P2.42. Density $\rho_{2}$ is only slightly larger than that of the upper fluid $\rho_{1}$. Derive an expression for the proportionality between $h$ and $p_{A}-p_{B}$ if the reservoirs are very large.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
04:47

Problem 43

The traditional method of measuring blood pressure uses a sphygmomanometer, first recording the highest (systolic)
and then the lowest (diastolic) pressure from which flowing "Korotkoff" sounds can be heard. Patients with dangerous hypertension can exhibit systolic pressures as high as 5 lbf/in'. Normal levels, however, are 2.7 and $1.7 \mathrm{lbf} / \mathrm{in}^{2}$ respectively, for systolic and diastolic pressures. The manometer uses mercury and air as fluids.
(a) How high in cm should the manometer tube be?
(b) Express normal systolic and diastolic blood pressure in millimeters of mercury.

Hubert Agamasu
Hubert Agamasu
Numerade Educator
02:44

Problem 44

Water flows downward in a pipe at $45^{\circ},$ as shown in Fig. $\mathrm{P} 2.44 .$ The pressure drop $p_{1}-p_{2}$ is partly due to gravity and partly due to friction. The mercury manometer reads a 6 -in height difference. What is the total pressure drop $p_{1}-p_{2}$ in $\mathrm{lbf} / \mathrm{in}^{2} ?$ What is the pressure drop due to friction only between 1 and 2 in $\operatorname{lbf} /$ in $^{2} ?$ Does the manometer reading correspond only to friction drop? Why?

Hunza Gilgit
Hunza Gilgit
Numerade Educator
01:06

Problem 45

In Fig. $\mathrm{P} 2.45,$ determine the gage pressure at point $A$ in $\mathrm{Pa}$. Is it higher or lower than atmospheric?

Kratika Bhadauria
Kratika Bhadauria
Numerade Educator
02:40

Problem 46

In Fig. $\mathrm{P} 2.46$ both ends of the manometer are open to the atmosphere. Estimate the specific gravity of fluid $X$

Hunza Gilgit
Hunza Gilgit
Numerade Educator
03:12

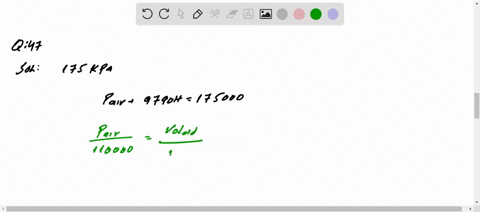

Problem 47

The cylindrical tank in Fig. $\mathrm{P} 2.47$ is being filled with water at $20^{\circ} \mathrm{C}$ by a pump developing an exit pressure of 175 kPa. At the instant shown, the air pressure is $110 \mathrm{kPa}$ and $H=35 \mathrm{cm} .$ The pump stops when it can no longer raise the water pressure. For isothermal air compression, estimate $H$ at that time.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
11:10

Problem 48

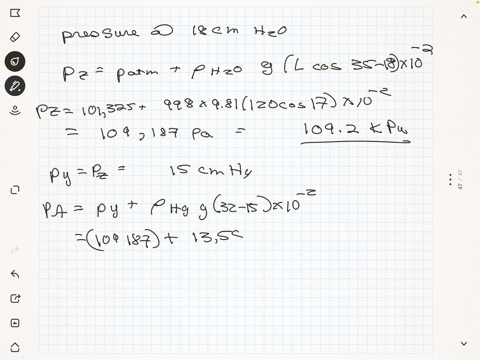

The system in Fig. $\mathrm{P} 2.48$ is open to 1 atm on the right side. $(a)$ If $L=120 \mathrm{cm},$ what is the air pressure in container $A$ ?
(b) Conversely, if $p_{A}=135 \mathrm{kPa}$, what is the length $L ?$

Susan Hallstrom
Susan Hallstrom
Numerade Educator

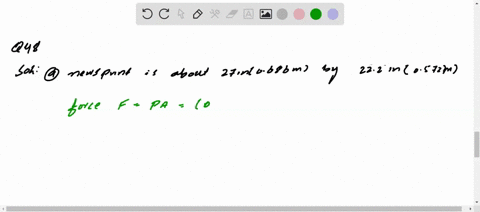

03:44

Problem 49

Conduct the following experiment to illustrate air pressure. Find a thin wooden ruler (approximately $1 \mathrm{ft}$ in length) or a thin wooden paint stirrer. Place it on the edge of a desk or table with a little less than half of it hanging over the edge lengthwise. Get two full-size sheets of newspaper; open them up and place them on top of the ruler, covering only the portion of the ruler resting on the desk as illustrated in Fig. P2.49.
(a) Estimate the total force on top of the newspaper due to air pressure in the room.
(b) Careful! To avoid potential injury, make sure nobody is standing directly in front of the desk. Perform a karate chop on the portion of the ruler sticking out over the edge of the desk. Record your results.
$(c)$ Explain your results.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
02:50

Problem 50

A small submarine, with a hatch door 30 in in diameter, is submerged in seawater. ( $a$ ) If the water hydrostatic force on the hatch is 69,000 lbf, how deep is the sub?
$(b)$ If the sub is $350 \mathrm{ft}$ deep, what is the hydrostatic force
on the hatch?

Mayukh Banik
Mayukh Banik
Numerade Educator
03:09

Problem 51

Gate $A B$ in Fig. $\mathrm{P} 2.51$ is $1.2 \mathrm{m}$ long and $0.8 \mathrm{m}$ into the paper. Neglecting atmospheric pressure, compute the force $F$ on the gate and its center-of-pressure position $X$

Narayan Hari
Narayan Hari
Numerade Educator
04:23

Problem 52

Example 2.5 calculated the force on plate $A B$ and its line of action, using the moment-of-inertia approach. Some teachers say it is more instructive to calculate these by direct integration of the pressure forces. Using Figs. $\mathrm{P} 2.52$ and $\mathrm{E} 2.5 a,(a)$ find an expression for the pressure variation $p(\xi)$ along the plate; $(b)$ integrate this expression to find the total force $F ;(c)$ integrate the moments about point $A$ to find the position of the center of pressure.

Dorcas Attuabea Addo
Dorcas Attuabea Addo
Numerade Educator
01:55

Problem 53

The Hoover Dam, in Arizona, encloses Lake Mead, which contains 10 trillion gallons of water. The dam is $1200 \mathrm{ft}$ wide and the lake is $500 \mathrm{ft}$ deep.
(a) Estimate the hydrostatic force on the dam, in MN.
(b) Explain how you might analyze the stress in the dam due to this hydrostatic force.

Varsha Aggarwal
Varsha Aggarwal
Numerade Educator
View

Problem 54

In Fig. $\mathrm{P} 2.54$, the hydrostatic force $F$ is the same on the bottom of all three containers, even though the weights of liquid above are quite different. The three bottom shapes and the fluids are the same. This is called the hydrostatic paradox. Explain why it is true and sketch a free body of each of the liquid columns.

James Kiss
James Kiss
Numerade Educator
03:32

Problem 55

Gate $A B$ in Fig. $\mathrm{P} 2.55$ is $5 \mathrm{ft}$ wide into the paper, hinged at
$A,$ and restrained by a stop at $B .$ The water is at $20^{\circ} \mathrm{C}$ Compute $(a)$ the force on stop $B$ and $(b)$ the reactions at $A$ if the water depth $h=9.5 \mathrm{ft}$

Hunza Gilgit
Hunza Gilgit
Numerade Educator
03:32

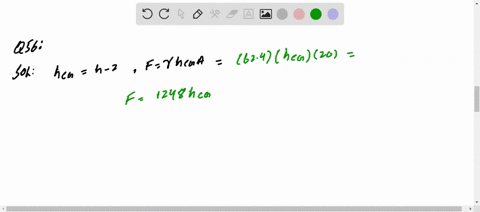

Problem 56

In Fig. $\mathrm{P} 2.55,$ gate $A B$ is $5 \mathrm{ft}$ wide into the paper, and stop $B$ will break if the water force on it equals 9200 lbf. For what water depth $h$ is this condition reached?

Hunza Gilgit
Hunza Gilgit
Numerade Educator
02:01

Problem 57

The square vertical panel $A B C D$ in Fig. $\mathrm{P} 2.57$ is submerged in water at $20^{\circ} \mathrm{C}$. Side $A B$ is at least $1.7 \mathrm{m}$ below the surface. Determine the difference between the hydrostatic forces on subpanels $A B D$ and $B C D$

Kratika Bhadauria
Kratika Bhadauria
Numerade Educator
01:50

Problem 58

In Fig. $\mathrm{P} 2.58,$ the cover gate $A B$ closes a circular opening $80 \mathrm{cm}$ in diameter. The gate is held closed by a 200 -kg mass as shown. Assume standard gravity at $20^{\circ} \mathrm{C}$. At what water level $h$ will the gate be dislodged? Neglect the weight of the gate.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
02:19

Problem 59

Gate $A B$ has length $L$ and width $b$ into the paper, is hinged at $B,$ and has negligible weight. The liquid level $h$ remains at the top of the gate for any angle $\theta .$ Find an analytic expression for the force $P,$ perpendicular to $A B,$ required to keep the gate in equilibrium in Fig. P2.59.

Prashant Bana
Prashant Bana
Numerade Educator
04:36

Problem 60

In Fig. P2.60, vertical, unsymmetrical trapezoidal panel $A B C D$ is submerged in fresh water with side $\mathrm{AB} 12 \mathrm{ft}$ below the surface. since trapezoid formulas are complicated,
(a) estimate, reasonably, the water force on the panel, in lbf, neglecting atmospheric pressure. For extra credit,
(b) look up the formula and compute the exact force on the panel.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
06:59

Problem 61

Gate $A B$ in Fig. $\mathrm{P} 2.61$ is a homogeneous mass of $180 \mathrm{kg}$ $1.2 \mathrm{m}$ wide into the paper, hinged at $A,$ and resting on a smooth bottom at $B$. All fluids are at $20^{\circ} \mathrm{C}$. For what water depth $h$ will the force at point $B$ be zero?

Susan Hallstrom
Susan Hallstrom
Numerade Educator
03:32

Problem 62

Gate $A B$ in Fig. $\mathrm{P} 2.62$ is $15 \mathrm{ft}$ long and $8 \mathrm{ft}$ wide into the paper and is hinged at $B$ with a stop at $A .$ The water is at $20^{\circ} \mathrm{C} .$ The gate is 1 -in-thick steel, $\mathrm{SG}=7.85 .$ Compute the water level $h$ for which the gate will start to fall.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
02:50

Problem 63

The tank in Fig. $\mathrm{P} 2.63$ has a 4 -cm-diameter plug at the bottom on the right. All fluids are at $20^{\circ} \mathrm{C}$. The plug will pop out if the hydrostatic force on it is 25 N. For this condition, what will be the reading $h$ on the mercury manometer on the left side?

Hunza Gilgit
Hunza Gilgit
Numerade Educator
02:25

Problem 64

Gate $A B C$ in Fig. $\mathrm{P} 2.64$ has a fixed hinge line at $B$ and is $2 \mathrm{m}$ wide into the paper. The gate will open at $A$ to release water if the water depth is high enough. Compute the depth $h$ for which the gate will begin to open.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
04:17

Problem 65

Gate $A B$ in Fig. $\mathrm{P} 2.65$ is semicircular, hinged at $B,$ and held by a horizontal force $P$ at $A .$ What force $P$ is required for equilibrium?

Hunza Gilgit
Hunza Gilgit
Numerade Educator
04:05

Problem 66

Dam $A B C$ in Fig. $\mathrm{P} 2.66$ is $30 \mathrm{m}$ wide into the paper and made of concrete $(\mathrm{SG}=2.4) .$ Find the hydrostatic force on surface $A B$ and its moment about $C .$ Assuming no seepage of water under the dam, could this force tip the dam over? How does your argument change if there is seepage under the dam?

Hunza Gilgit
Hunza Gilgit
Numerade Educator
03:49

Problem 67

Generalize Prob. P2.66 as follows. Denote length $A B$ as
$H,$ length $B C$ as $L,$ and angle $A B C$ as $\theta .$ Let the dam material have specific gravity SG. The width of the dam is $b$. Assume no seepage of water under the dam. Find an analytic relation between SG and the critical angle $\theta_{c}$ for which the dam will just tip over to the right. Use your relation to compute $\theta_{c}$ for the special case $\mathrm{SG}=2.4$ (concrete).

Hunza Gilgit
Hunza Gilgit
Numerade Educator
07:22

Problem 68

Isosceles triangle gate $A B$ in Fig. $\mathrm{P} 2.68$ is hinged at $A$ and weighs 1500 N. What horizontal force $P$ is required at point $B$ for equilibrium?

Susan Hallstrom
Susan Hallstrom
Numerade Educator
02:03

Problem 69

Consider the slanted plate $A B$ of length $L$ in Fig. $\mathrm{P} 2.69$
(a) Is the hydrostatic force $F$ on the plate equal to the weight of the missing water above the plate? If not, correct this hypothesis. Neglect the atmosphere.
(b) Can a "missing water" theory be generalized to curved surfaces of this type?

R M
R M
Numerade Educator
03:16

Problem 70

The swing-check valve in Fig. P2.70 covers a $22.86-\mathrm{cm}$ diameter opening in the slanted wall. The hinge is $15 \mathrm{cm}$ from the centerline, as shown. The valve will open when the hinge moment is $50 \mathrm{N} \cdot \mathrm{m} .$ Find the value of $h$ for the water to cause this condition.

Narayan Hari
Narayan Hari
Numerade Educator
04:00

Problem 71

In Fig. $\mathrm{P} 2.71$ gate $A B$ is $3 \mathrm{m}$ wide into the paper and is connected by a rod and pulley to a concrete sphere (SG = 2.40). What diameter of the sphere is just sufficient to keep the gate closed?

Hunza Gilgit
Hunza Gilgit
Numerade Educator
03:33

Problem 72

In Fig. $\mathrm{P} 2.72,$ gate $A B$ is circular. Find the moment of the hydrostatic force on this gate about axis $A$

Hunza Gilgit
Hunza Gilgit
Numerade Educator
03:06

Problem 73

Gate $A B$ is $5 \mathrm{ft}$ wide into the paper and opens to let fresh water out when the ocean tide is dropping. The hinge at $A$ is $2 \mathrm{ft}$ above the freshwater level. At what ocean level $h$
will the gate first open? Neglect the gate weight.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
04:02

Problem 74

Find the height $H$ in Fig. $\mathrm{P} 2.74$ for which the hydrostatic force on the rectangular panel is the same as the force on the semicircular panel below.

Rashmi Sinha
Rashmi Sinha
Numerade Educator
02:50

Problem 75

The cap at point $\mathrm{B}$ on the 5 -cm-diameter tube in Fig. $\mathrm{P} 2.75$ will be dislodged when the hydrostatic force on its base reaches 22 lbf. For what water depth $h$ does this occur?

Hunza Gilgit
Hunza Gilgit
Numerade Educator
01:55

Problem 76

Panel $B C$ in Fig. $P 2.76$ is circular. Compute $(a)$ the hydrostatic force of the water on the panel, $(b)$ its center of pressure, and $(c)$ the moment of this force about point $B$

Hunza Gilgit
Hunza Gilgit
Numerade Educator
02:37

Problem 77

The circular gate $A B C$ in Fig. $P 2.77$ has a 1 -m radius and is hinged at $B .$ Compute the force $P$ just sufficient to keep the gate from opening when $h=8 \mathrm{m} .$ Neglect atmospheric pressure

Hunza Gilgit
Hunza Gilgit
Numerade Educator
04:36

Problem 78

Panels $\mathrm{AB}$ and $\mathrm{CD}$ in Fig. $\mathrm{P} 2.78$ are each $120 \mathrm{cm}$ wide into the paper. ( $a$ ) Can you deduce, by inspection, which panel has the larger water force? ( $b$ ) Even if your deduction is brilliant, calculate the panel forces anyway.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
01:45

Problem 79

Gate $A B C$ in Fig. $\mathrm{P} 2.79$ is $1 \mathrm{m}$ square and is hinged at $B$ It will open automatically when the water level $h$ becomes high enough. Determine the lowest height for which the gate will open. Neglect atmospheric pressure. Is this result independent of the liquid density?

Hunza Gilgit
Hunza Gilgit
Numerade Educator
04:05

Problem 80

A concrete dam $(\mathrm{SG}=2.5)$ is made in the shape of an isosceles triangle, as in Fig. P2.80. Analyze this geometry to find the range of angles $\theta$ for which the hydrostatic force will tend to tip the dam over at point $B$. The width into the paper is $b$

Hunza Gilgit
Hunza Gilgit
Numerade Educator
08:39

Problem 81

For the semicircular cylinder $C D E$ in Example $2.9,$ find the vertical hydrostatic force by integrating the vertical component of pressure around the surface from $\theta=0$ to $\theta=\pi$

JC
James Casino
Numerade Educator
03:56

Problem 82

The dam in Fig. $\mathrm{P} 2.82$ is a quarter circle $50 \mathrm{m}$ wide into the paper. Determine the horizontal and vertical components of the hydrostatic force against the dam and the point CP where the resultant strikes the dam.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
04:54

Problem 83

Gate $A B$ in Fig. $\mathrm{P} 2.83$ is a quarter circle $10 \mathrm{ft}$ wide into the paper and hinged at $B$. Find the force $F$ just sufficient to keep the gate from opening. The gate is uniform and weighs 3000 lbf.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
05:36

Problem 84

Panel AB in Fig. $\mathrm{P} 2.84$ is a parabola with its maximum at point $A .$ It is $150 \mathrm{cm}$ wide into the paper. Neglect atmospheric pressure. Find ( $a$ ) the vertical and ( $b$ ) the horizontal water forces on the panel.

Susan Hallstrom
Susan Hallstrom
Numerade Educator
02:44

Problem 85

Compute the horizontal and vertical components of the hydrostatic force on the quarter-circle panel at the bottom of the water tank in Fig. P2.85.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
04:17

Problem 86

The quarter circle gate $B C$ in Fig. $\mathrm{P} 2.86$ is hinged at $C$ Find the horizontal force $P$ required to hold the gate stationary. Neglect the weight of the gate.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
01:38

Problem 87

The bottle of champagne $(\mathrm{SG}=0.96)$ in Fig. $\mathrm{P} 2.87$ is under pressure, as shown by the mercury-manometer reading. Compute the net force on the 2 -in-radius hemispherical end cap at the bottom of the bottle.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
03:33

Problem 88

Gate $A B C$ is a circular arc, sometimes called a Tainter gate, which can be raised and lowered by pivoting about point $O$ See Fig. $\mathrm{P} 2.88 .$ For the position shown, determine $(a)$ the hydrostatic force of the water on the gate and ( $b$ ) its line of action. Does the force pass through point $O ?$

Hunza Gilgit
Hunza Gilgit
Numerade Educator
View

Problem 89

The tank in Fig. $\mathrm{P} 2.89$ contains benzene and is pressurized to 200 kPa (gage) in the air gap. Determine the vertical hydrostatic force on circular-arc section $A B$ and its line of action.

Victor Salazar
Victor Salazar
Numerade Educator
05:36

Problem 90

The tank in Fig. $\mathrm{P} 2.90$ is $120 \mathrm{cm}$ long into the paper. Determine the horizontal and vertical hydrostatic forces on the quarter-circle panel $A B .$ The fluid is water at $20^{\circ} \mathrm{C}$. Neglect atmospheric pressure.

Susan Hallstrom
Susan Hallstrom
Numerade Educator
03:52

Problem 91

The hemispherical dome in Fig. P2.91 weighs $30 \mathrm{kN}$ and is filled with water and attached to the floor by six equally spaced bolts. What is the force in each bolt required to hold down the dome?

Hunza Gilgit
Hunza Gilgit
Numerade Educator
02:45

Problem 92

A $4-\mathrm{m}$ -diameter water tank consists of two half cylinders, each weighing $4.5 \mathrm{kN} / \mathrm{m},$ bolted together as shown in Fig. $\mathrm{P} 2.92 .$ If the support of the end caps is neglected, determine the force induced in each bolt.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
04:58

Problem 93

In Fig. $\mathrm{P} 2.93,$ a one-quadrant spherical shell of radius $R$ is submerged in liquid of specific weight $\gamma$ and depth $h>R$ Find an analytic expression for the resultant hydrostatic force, and its line of action, on the shell surface.

Chai Santi
Chai Santi
Numerade Educator
06:36

Problem 94

Find an analytic formula for the vertical and horizontal forces on each of the semicircular panels $A B$ in Fig. $\mathrm{P} 2.94$ The width into the paper is $b$. Which force is larger? Why?

Ajay Singhal
Ajay Singhal
Numerade Educator
03:09

Problem 95

The uniform body $A$ in Fig. $\mathrm{P} 2.95$ has width $b$ into the paper and is in static equilibrium when pivoted about hinge O. What is the specific gravity of this body if $(a) h=0$ and $(b) h=R ?$

Hunza Gilgit
Hunza Gilgit
Numerade Educator
View

Problem 96

In Fig. $\mathrm{P} 2.96,$ curved section $A B$ is $5 \mathrm{m}$ wide into the paper and is a $60^{\circ}$ circular arc of radius $2 \mathrm{m} .$ Neglecting atmospheric pressure, calculate the vertical and horizontal hydrostatic forces on arc $A B$

Victor Salazar
Victor Salazar
Numerade Educator
02:05

Problem 97

The contractor ran out of gunite mixture and finished the deep corner of a 5 -m-wide swimming pool with a quarter circle piece of PVC pipe, labeled $A B$ in Fig. P2.97. Compute the horizontal and vertical water forces on the curved panel $A B$

Averell Hause
Averell Hause
Carnegie Mellon University
View

Problem 98

The curved surface in Fig. $\mathrm{P} 2.98$ consists of two quarter spheres and a half cylinder. A side view and front view are shown. Calculate the horizontal and vertical forces on the surface.

Victor Salazar
Victor Salazar
Numerade Educator
02:22

Problem 99

The mega-magnum cylinder in Fig. P2.99 has a hemispherical bottom and is pressurized with air to 75 kPa (gage) at the top. Determine $(a)$ the horizontal and $(b)$ the vertical hydrostatic forces on the hemisphere, in lbf.

Prashant Bana
Prashant Bana
Numerade Educator
01:55

Problem 100

Pressurized water fills the tank in Fig. P2.100. Compute the net hydrostatic force on the conical surface $A B C$.

Hunza Gilgit
Hunza Gilgit
Numerade Educator
02:50

Problem 101

The closed layered box in Fig. P2.101 has square horizontal cross sections everywhere. All fluids are at $20^{\circ} \mathrm{C}$ Estimate the gage pressure of the air if ( $a$ ) the hydrostatic force on panel $A B$ is $48 \mathrm{kN}$ or $(b)$ the hydrostatic force on the bottom panel $B C$ is $97 \mathrm{kN}$

Hunza Gilgit
Hunza Gilgit
Numerade Educator
06:53

Problem 102

A cubical tank is $3 \mathrm{m} \times 3 \mathrm{m} \times 3 \mathrm{m}$ and is layered with 1 meter of fluid of specific gravity 1.0,1 meter of fluid with $\mathrm{SG}=0.9,$ and 1 meter of fluid with $\mathrm{SG}=0.8 .$ Neglect atmospheric pressure. Find ( $a$ ) the hydrostatic force on the bottom and ( $b$ ) the force on a side panel.

Chris Trentman
Chris Trentman
Numerade Educator
02:02

Problem 103

A solid block, of specific gravity $0.9,$ floats such that 75 percent of its volume is in water and 25 percent of its volume is in fluid $X$, which is layered above the water. What is the specific gravity of fluid $X ?$

Ajay Singhal
Ajay Singhal
Numerade Educator
01:32

Problem 104

The can in Fig. P2.104 floats in the position shown. What is its weight in $\mathrm{N} ?$

Supratim Pal
Supratim Pal
Numerade Educator
04:43

Problem 105

It is said that Archimedes discovered the buoyancy laws when asked by King Hiero of Syracuse to determine whether his new crown was pure gold $(\mathrm{SG}=19.3)$ Archimedes measured the weight of the crown in air to be $11.8 \mathrm{N}$ and its weight in water to be $10.9 \mathrm{N}$. Was it pure gold?

Supratim Pal
Supratim Pal
Numerade Educator
01:58

Problem 106

A spherical helium balloon has a total mass of 3 kg. It settles in a calm standard atmosphere at an altitude of $5500 \mathrm{m}$ Estimate the diameter of the balloon.

Narayan Hari
Narayan Hari
Numerade Educator
01:09

Problem 107

Repeat Prob. 2.62 , assuming that the 10,000 -lbf weight is aluminum (SG $=2.71$ ) and is hanging submerged in the water

Prabhu Ramji
Prabhu Ramji
Numerade Educator
View

Problem 108

A 7 -cm-diameter solid aluminum ball $(\mathrm{SG}=2.7)$ and a solid brass ball (SG = 8.5) balance nicely when submerged in a liquid, as in Fig. P2.108. (a) If the fluid is water at $20^{\circ} \mathrm{C},$ what is the diameter of the brass ball? ( $b$ ) If the brass ball has a diameter of $3.8 \mathrm{cm},$ what is the density of the fluid?

Andrew Eddins
Andrew Eddins
Emory University
01:08

Problem 109

A hydrometer floats at a level that is a measure of the specific gravity of the liquid. The stem is of constant diameter $D,$ and a weight in the bottom stabilizes the body to float vertically, as shown in Fig. P2.109. If the position $h=0$ is pure water $(\mathrm{SG}=1.0),$ derive a formula for $h$ as a function of total weight $W, D, \mathrm{SG},$ and the specific weight $\gamma_{0}$ of water.

Penny Riley
Penny Riley
Numerade Educator
03:56

Problem 110

A solid sphere, of diameter $18 \mathrm{cm},$ floats in $20^{\circ} \mathrm{C}$ water with 1527 cubic centimeters exposed above the surface.
(a) What are the weight and specific gravity of this sphere?
(b) Will it float in $20^{\circ} \mathrm{C}$ gasoline? If so, how many cubic centimeters will be exposed?

Baskar P
Baskar P
Numerade Educator
05:13

Problem 111

A solid wooden cone $(\mathrm{SG}=0.729)$ floats in water. The cone is $30 \mathrm{cm}$ high, its vertex angle is $90^{\circ},$ and it floats with vertex down. How much of the cone protrudes above the water?

Ruby P
Ruby P
Numerade Educator
03:16

Problem 112

The uniform 5 -m-long round wooden rod in Fig. $\mathrm{P} 2.112$ is tied to the bottom by a string. Determine $(a)$ the tension in the string and ( $b$ ) the specific gravity of the wood. Is it possible for the given information to determine the inclination angle $\theta$ ? Explain.

Mayukh Banik
Mayukh Banik
Numerade Educator
03:09

Problem 113

A spar buoy is a buoyant rod weighted to float and protrude vertically, as in Fig. P2.113. It can be used for measurements or markers. Suppose that the buoy is maple wood $(\mathrm{SG}=0.6), 2$ in by 2 in by $12 \mathrm{ft},$ floating in seawater $(\mathrm{SG}=1.025) .$ How many pounds of steel $(\mathrm{SG}=7.85)$ should be added to the bottom end so that $h=18$ in?

AP
Andreas Papavassiliou
Numerade Educator
04:33

Problem 114

The uniform rod in Fig. $\mathrm{P} 2.114$ is hinged at point $B$ on the waterline and is in static equilibrium as shown when $2 \mathrm{kg}$ of lead $(\mathrm{SG}=11.4)$ are attached to its end. What is the specific gravity of the rod material? What is peculiar about the rest angle $\theta=30^{\circ} ?$

Surendra Kumar
Surendra Kumar
Numerade Educator
03:27

Problem 115

The 2 -in by 2 -in by 12 -ft spar buoy from Fig. $\mathrm{P} 2.113$ has
5 lbm of steel attached and has gone aground on a rock, as in Fig. P2.115. Compute the angle $\theta$ at which the buoy will lean, assuming that the rock exerts no moments on the spar.

SN
Shreya Nagpal
Numerade Educator
02:47

Problem 116

The bathysphere of the chapter-opener photo is steel, $\mathrm{SG} \approx 7.85,$ with inside diameter 54 inches and wall thickness 1.5 inches. Will the empty sphere float in seawater?

Prabhu Ramji
Prabhu Ramji
Numerade Educator
02:02

Problem 117

The solid sphere in Fig. $\mathrm{P} 2.117$ is iron $(\mathrm{SG} \approx 7.9) .$ The tension in the cable is 600 lbf. Estimate the diameter of the sphere, in cm.

Keshav Singh
Keshav Singh
Numerade Educator
06:02

Problem 118

An intrepid treasure-salvage group has discovered a steel box, containing gold doubloons and other valuables, resting in $80 \mathrm{ft}$ of seawater. They estimate the weight of the box and treasure (in air) at 7000 lbf. Their plan is to attach the box to a sturdy balloon, inflated with air to 3 atm pressure. The empty balloon weighs 250 lbf. The box is $2 \mathrm{ft}$ wide, $5 \mathrm{ft}$ long, and 18 in high. What is the proper diameter of the balloon to ensure an upward lift force on the box that is 20 percent more than required?

Anand Jangid
Anand Jangid
Numerade Educator
04:49

Problem 119

When a 5 -lbf weight is placed on the end of the uniform floating wooden beam in Fig. $\mathrm{P} 2.119$, the beam tilts at an angle $\theta$ with its upper right corner at the surface, as shown. Determine $(a)$ the angle $\theta$ and $(b)$ the specific gravity of the wood. Hint: Both the vertical forces and the moments about the beam centroid must be balanced.

Narayan Hari
Narayan Hari
Numerade Educator
02:19

Problem 120

A uniform wooden beam (SG $=0.65$ ) is $10 \mathrm{cm}$ by $10 \mathrm{cm}$ by $3 \mathrm{m}$ and is hinged at $A,$ as in Fig. $\mathrm{P} 2.120 .$ At what angle
$\theta$ will the beam float in the $20^{\circ} \mathrm{C}$ water?

Ben Nicholson
Ben Nicholson
Numerade Educator
02:19

Problem 121

A uniform wooden beam (SG $=0.65$ ) is $10 \mathrm{cm}$ by $10 \mathrm{cm}$ by $3 \mathrm{m}$ and is hinged at $A,$ as in Fig. $\mathrm{P} 2.120 .$ At what angle
$\theta$ will the beam float in the $20^{\circ} \mathrm{C}$ water?

Ben Nicholson
Ben Nicholson
Numerade Educator
05:19

Problem 122

A uniform block of steel $(\mathrm{SG}=7.85)$ will "float" at a mercury-water interface as in Fig. P2.122. What is the ratio of the distances $a$ and $b$ for this condition?

Supratim Pal
Supratim Pal
Numerade Educator
02:58

Problem 123

A barge has the trapezoidal shape shown in Fig. $\mathrm{P} 2.123$ and is $22 \mathrm{m}$ long into the paper. If the total weight of barge and cargo is 350 tons, what is the draft $H$ of the barge when floating in seawater?

Surendra Kumar
Surendra Kumar
Numerade Educator
01:47

Problem 124

A balloon weighing 3.5 lbf is $6 \mathrm{ft}$ in diameter. It is filled with hydrogen at 18 lbf/in $^{2}$ absolute and $60^{\circ} \mathrm{F}$ and is released. At what altitude in the U.S. standard atmosphere will this balloon be neutrally buoyant?

Kudakwashe Mapiki
Kudakwashe Mapiki
Numerade Educator
07:10

Problem 125

A uniform cylindrical white oak $\log , \rho=710 \mathrm{kg} / \mathrm{m}^{3},$ floats lengthwise in fresh water at $20^{\circ} \mathrm{C}$. Its diameter is 24 inches. What height of the log is visible above the surface?

Alexander Allen
Alexander Allen
Numerade Educator
05:44

Problem 126

A block of wood $(\mathrm{SG}=0.6)$ floats in fluid $X$ in Fig. $\mathrm{P} 2.126$ such that 75 percent of its volume is submerged in fluid $X$ Estimate the vacuum pressure of the air in the tank.

Prabhat Tyagi
Prabhat Tyagi
Numerade Educator
View

Problem 127

Consider a cylinder of specific gravity $S<1$ floating vertically in water $(S=1),$ as in Fig. $\mathrm{P} 2.127 .$ Derive a formula for the stable values of $D / L$ as a function of $S$ and apply it to the case $D / L=1.2$

Victor Salazar
Victor Salazar
Numerade Educator
01:41

Problem 128

An iceberg can be idealized as a cube of side length $L$, as in Fig. $\mathrm{P} 2.128 .$ If seawater is denoted by $S=1.0$, then glacier ice (which forms icebergs) has $S=0.88$. Determine if this "cubic", iceberg is stable for the position shown in Fig. $\mathrm{P} 2.128$

Penny Riley
Penny Riley
Numerade Educator
02:56

Problem 129

The iceberg idealization in Prob. P2.128 may become unstable if its sides melt and its height exceeds its width. In Fig. $\mathrm{P} 2.128$ suppose that the height is $L$ and the depth into the paper is $L,$ but the width in the plane of the paper is $H<L$ Assuming $S=0.88$ for the iceberg, find the ratio $H / L$ for which it becomes neutrally stable (about to overturn).

Morgan Cheatham
Morgan Cheatham
Numerade Educator
02:17

Problem 130

Consider a wooden cylinder $(\mathrm{SG}=0.6) 1 \mathrm{m}$ in diameter and $0.8 \mathrm{m}$ long. Would this cylinder be stable if placed to float with its axis vertical in oil (SG $=0.8$ )?

AP
Andreas Papavassiliou
Numerade Educator
03:10

Problem 131

A barge is $15 \mathrm{ft}$ wide and $40 \mathrm{ft}$ long and floats with a draft of $4 \mathrm{ft}$. It is piled so high with gravel that its center of gravity is 3 ft above the waterline. Is it stable?

Prabhu Ramji
Prabhu Ramji
Numerade Educator
05:00

Problem 132

A solid right circular cone has $\mathrm{SG}=0.99$ and floats vertically as in Fig. P2.132. Is this a stable position for the cone?

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
06:33

Problem 133

Consider a uniform right circular cone of specific gravity $S<1,$ floating with its vertex down in water $(S=1) .$ The base radius is $R$ and the cone height is $H$. Calculate and plot the stability $M G$ of this cone, in dimensionless form, versus $H / R$ for a range of $S<1$

Jake Rempel
Jake Rempel
Numerade Educator
View

Problem 134

When floating in water (SG $=1.0$ ), an equilateral triangular body $(\mathrm{SG}=0.9)$ might take one of the two positions shown in Fig. P2.134. Which is the more stable position? Assume large width into the paper.

Victor Salazar
Victor Salazar
Numerade Educator
03:01

Problem 135

Consider a homogeneous right circular cylinder of length $L,$ radius $R,$ and specific gravity $\mathrm{SG},$ floating in water $(\mathrm{SG}=1) .$ Show that the body will be stable with its axis vertical if
$$\frac{R}{L}>[2 \mathrm{SG}(1-\mathrm{SG})]^{1 / 2}$$

AP
Andreas Papavassiliou
Numerade Educator
03:01

Problem 136

Consider a homogeneous right circular cylinder of length
$L,$ radius $R,$ and specific gravity $\mathrm{SG}=0.5,$ floating in water $(\mathrm{SG}=1) .$ Show that the body will be stable with its axis horizontal if $L / R>2.0$

AP
Andreas Papavassiliou
Numerade Educator
01:24

Problem 137

A tank of water $4 \mathrm{m}$ deep receives a constant upward acceleration $a_{z} .$ Determine ( $a$ ) the gage pressure at the tank bottom if $a_{z}=5 \mathrm{m}^{2} / \mathrm{s}$ and $(b)$ the value of $a_{z}$ that causes the gage pressure at the tank bottom to be 1 atm.

Narayan Hari
Narayan Hari
Numerade Educator
13:26

Problem 138

A 12 -fl-oz glass, of 3 -in diameter, partly full of water, is attached to the edge of an 8 -ft-diameter merry-go-round, which is rotated at $12 \mathrm{r} / \mathrm{min}$. How full can the glass be before water spills? Hint: Assume that the glass is much smaller than the radius of the merry-go-round.

Mutahar Mehkri
Mutahar Mehkri
Numerade Educator
View

Problem 139

The tank of liquid in Fig. $\mathrm{P} 2.139$ accelerates to the right with the fluid in rigid-body motion. ( $a$ ) Compute $a_{x}$ in $\mathrm{m} / \mathrm{s}^{2}$
(b) Why doesn't the solution to part ( $a$ ) depend on the density of the fluid?
$(c)$ Determine the gage pressure at point $A$ if the fluid is glycerin at $20^{\circ} \mathrm{C}$

Victor Salazar
Victor Salazar
Numerade Educator
01:36

Problem 140

The U-tube in Fig. P2.140 is moving to the right with variable velocity. The water level in the left tube is $6 \mathrm{cm},$ and the level in the right tube is $16 \mathrm{cm} .$ Determine the acceleration and its direction.

Hast Aggarwal
Hast Aggarwal
Numerade Educator
01:59

Problem 141

The same tank from Prob. P2.139 is now moving with constant acceleration up a $30^{\circ}$ inclined plane, as in Fig. P2.141. Assuming rigid-body motion, compute (a) the value of the acceleration $a,(b)$ whether the acceleration is up or down, and $(c)$ the gage pressure at point $A$ if the fluid is mercury at $20^{\circ} \mathrm{C}$

Ameer Said
Ameer Said
Numerade Educator
06:59

Problem 142

The tank of water in Fig. $\mathrm{P} 2.142$ is $12 \mathrm{cm}$ wide into the paper. If the tank is accelerated to the right in rigid-body motion at $6.0 \mathrm{m} / \mathrm{s}^{2},$ compute
$(a)$ the water depth on side $A B$ and $(b)$ the water-pressure force on panel $A B$. Assume no spilling.

Susan Hallstrom
Susan Hallstrom
Numerade Educator
02:04

Problem 143

The tank of water in Fig. $\mathrm{P} 2.143$ is full and open to the atmosphere at point $A .$ For what acceleration $a_{x}$ in $\mathrm{ft} / \mathrm{s}^{2}$ will the pressure at point $B$ be $(a)$ atmospheric and
(b) zero absolute?

Surendra Kumar
Surendra Kumar
Numerade Educator
02:59

Problem 144

Consider a hollow cube of side length $22 \mathrm{cm},$ filled completely with water at $20^{\circ} \mathrm{C}$. The top surface of the cube is horizontal. One top corner, point $A$, is open through a small hole to a pressure of 1 atm. Diagonally opposite to point $A$ is top corner $B$. Determine and discuss the various rigidbody accelerations for which the water at point $B$ begins to cavitate, for $(a)$ horizontal motion and
(b) vertical motion.

Baskar P
Baskar P
Numerade Educator
02:45

Problem 145

A fish tank 14 in deep by 16 by 27 in is to be carried in a car that may experience accelerations as high as $6 \mathrm{m} / \mathrm{s}^{2}$ What is the maximum water depth that will avoid spilling in rigid-body motion? What is the proper alignment of the tank with respect to the car motion?

Narayan Hari
Narayan Hari
Numerade Educator
01:28

Problem 146

The tank in Fig. $\mathrm{P} 2.146$ is filled with water and has a vent hole at point $A$. The tank is $1 \mathrm{m}$ wide into the paper. Inside the tank, a 10 -cm balloon, filled with helium at $130 \mathrm{kPa}$, is tethered centrally by a string. If the tank accelerates to the right at $5 \mathrm{m} / \mathrm{s}^{2}$ in rigid-body motion, at what angle will the balloon lean? Will it lean to the right or to the left?

Chai Santi
Chai Santi
Numerade Educator
04:36

Problem 147

The tank of water in Fig. $\mathrm{P} 2.147$ accelerates uniformly by freely rolling down a $30^{\circ}$ incline. If the wheels are frictionless, what is the angle $\theta$ ? Can you explain this interesting result?

Susan Hallstrom
Susan Hallstrom
Numerade Educator
View

Problem 148

A child is holding a string onto which is attached a heliumfilled balloon. (a) The child is standing still and suddenly accelerates forward. In a frame of reference moving with the child, which way will the balloon tilt, forward or backward? Explain.
(b) The child is now sitting in a car that is stopped at a red light. The helium-filled balloon is not in contact with any part of the car (seats, ceiling, etc.) but is held in place by the string, which is in turn held by the child. All the windows in the car are closed. When the traffic light turns green, the car accelerates forward. In a frame of reference moving with the car and child, which way will the balloon tilt, forward or backward? Explain. (c) Purchase or borrow a helium-filled balloon. Conduct a scientific experiment to see if your predictions in parts ( $a$ ) and $(b)$ above are correct. If not, explain.

James Kiss
James Kiss
Numerade Educator
04:45

Problem 149

The 6 -ft-radius waterwheel in Fig. $\mathrm{P} 2.149$ is being used to lift water with its 1 -ft-diameter half-cylinder blades. If the wheel rotates at $10 \mathrm{r} / \mathrm{min}$ and rigid-body motion is assumed, what is the water surface angle $\theta$ at position $A$ ?

Marcella Sippey
Marcella Sippey
Numerade Educator
02:16

Problem 150

A cheap accelerometer, probably worth the price, can be made from a U-tube as in Fig. P2.150. If $L=18 \mathrm{cm}$ and $D=5 \mathrm{mm},$ what will $h$ be if $a_{x}=6 \mathrm{m} / \mathrm{s}^{2} ?$ Can the scale markings on the tube be linear multiples of $a_{x} ?$

Ankur S
Ankur S
Numerade Educator
03:36

Problem 151

The U-tube in Fig. $\mathrm{P} 2.151$ is open at $A$ and closed at $D .$ If accelerated to the right at uniform $a_{x},$ what acceleration will cause the pressure at point $C$ to be atmospheric? The fluid is water $(\mathrm{SG}=1.0)$

Kudakwashe Mapiki
Kudakwashe Mapiki
Numerade Educator
03:33

Problem 152

A 16 -cm-diameter open cylinder $27 \mathrm{cm}$ high is full of water. Compute the rigid-body rotation rate about its central axis, in $\mathrm{r} / \mathrm{min},(a)$ for which one-third of the water will spill out and $(b)$ for which the bottom will be barely exposed.

Kudakwashe Mapiki
Kudakwashe Mapiki
Numerade Educator
02:00

Problem 153

A tall cylindrical container, 14 in in diameter, is used to make a mold for forming 14 -in salad bowls. The bowls are to be 8 in deep. The cylinder is half-filled with molten plastic, $\mu=1.6 \mathrm{kg} /(\mathrm{m}-\mathrm{s}),$ rotated steadily about the central axis, then cooled while rotating. What is the appropriate rotation rate, in r/min?

Bryce Samwel
Bryce Samwel
Numerade Educator
02:16

Problem 154

A very tall 10-cm-diameter vase contains $1178 \mathrm{cm}^{3}$ of water. When spun steadily to achieve rigid-body rotation, a $4-\mathrm{cm}-$ diameter dry spot appears at the bottom of the vase. What is the rotation rate, in $\mathrm{r} / \mathrm{min}$, for this condition?

Linh Vu
Linh Vu
Numerade Educator
01:01

Problem 155

For what uniform rotation rate in $r /$ min about axis $C$ will the U-tube in Fig. $\mathrm{P} 2.155$ take the configuration shown? The fluid is mercury at $20^{\circ} \mathrm{C}$

Hast Aggarwal
Hast Aggarwal
Numerade Educator
01:12

Problem 156

Suppose that the U-tube of Fig. P2.151 is rotated about axis $D C .$ If the fluid is water at $122^{\circ} \mathrm{F}$ and atmospheric pressure is $2116 \mathrm{lbf} / \mathrm{ft}^{2}$ absolute, at what rotation rate will the fluid within the tube begin to vaporize? At what point will this occur?

Surendra Kumar
Surendra Kumar
Numerade Educator
01:09

Problem 157

The $45^{\circ} \mathrm{V}$ -tube in Fig. $\mathrm{P} 2.157$ contains water and is open at $A$ and closed at $C .$ What uniform rotation rate in $\mathrm{r} / \mathrm{min}$
about axis $A B$ will cause the pressure to be equal at points $B$ and $C ?$ For this condition, at what point in leg $B C$ will the pressure be a minimum?

Kratika Bhadauria
Kratika Bhadauria
Numerade Educator
00:25

Problem 158

It is desired to make a 3 -m-diameter parabolic telescope mirror by rotating molten glass in rigid-body motion until the desired shape is achieved and then cooling the glass to a solid. The focus of the mirror is to be $4 \mathrm{m}$ from the mirror, measured along the centerline. What is the proper mirror rotation rate, in $\mathrm{r} / \mathrm{min},$ for this task?

Zachary Warner
Zachary Warner
Numerade Educator
02:42

Problem 159

The three-legged manometer in Fig. $\mathrm{P} 2.159$ is filled with water to a depth of $20 \mathrm{cm} .$ All tubes are long and have equal small diameters. If the system spins at angular velocity $\Omega$ about the central tube,
$(a)$ derive a formula to find the change of height in the tubes;
(b) find the height in $\mathrm{cm}$ in each tube if $\Omega=120 \mathrm{r} / \mathrm{min}$. Hint: The central tube must supply water to both the outer legs.

Narayan Hari
Narayan Hari
Numerade Educator
02:24

Problem 160

Figure $\mathrm{P} 2.160$ shows a gage for very low pressures, invented in 1874 by Herbert McLeod. $(a)$ Can you deduce, from the figure, how it works? ( $b$ ) If not, read about it and explain it to the class.

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
02:24

Problem 161

Figure $\mathrm{P} 2.161$ shows a sketch of a commercial pressure gage. $(a)$ Can you deduce, from the figure, how it works?

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
