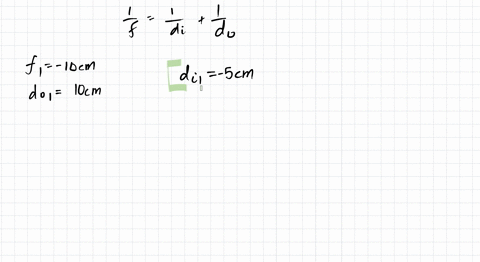

Interactive LearningWare 26.2 at offers a review of the concepts that play roles in this problem. A diverging lens $(f=-10.0 \mathrm{~cm})$ is located $20.0\mathrm{~cm}$ to the left of a converging lens $(f=30.0 \mathrm{~cm})$. A $3.00-\mathrm{cm}$ -tall object stands to the left of the diverging lens, exactly at its focal point. (a) Determine the distance of the final image relative to the converging lens. (b) What is the height of the final image (including the proper algebraic sign)?

Key Concepts

Magnification

Magnification relates the size of the image to the size of the object and is determined by the ratio of the image distance to the object distance, including any sign changes. This concept helps in assessing not only the size but also the orientation (upright or inverted) of the final image formed by a lens or a system of lenses.

Virtual versus Real Image Formation

Understanding the distinction between real and virtual images is vital. Real images are formed when light rays converge and can be projected on a screen, while virtual images arise when the rays only appear to diverge from a common point, meaning they cannot be directly captured on a screen. This concept is especially important in determining image properties with diverging lenses or when multiple lenses are used.

Compound Lens Systems

In setups involving two or more lenses, the analysis of compound lens systems is key. The image produced by one lens serves as the object for the next. This sequential imaging process requires careful consideration of the spacing and relative positions of the lenses, as well as careful application of the thin lens equation for each step.

Thin Lens Equation

The thin lens equation (1/f = 1/d_o + 1/d_i) provides a mathematical relationship between the focal length of a lens, the object distance, and the image distance. This equation is the fundamental tool for calculating the position and nature of images formed by lenses, whether they are converging or diverging.

Sign Conventions in Lens Systems

A consistent set of sign conventions is crucial for solving lens problems accurately. These conventions assign positive or negative values to focal lengths, object distances, and image distances based on the lens type and the side of the lens where the object or image is located. This framework helps differentiate between real and virtual images.
