Light of wavelength 630 nm is incident upon a single slit with width 0.40 mm. The figure shows

step 1 In this problem, at some angle theta, there will be a diffraction pattern from the center line.

Light of wavelength 630 nm is incident upon a single slit...

Light of wavelength $630 \mathrm{~nm}$ is incident upon a single slit with width $0.40 \mathrm{~mm}$. The figure shows the pattern observed on a screen positioned $2.0 \mathrm{~m}$ from the slit. Determine the distance from the center of the central bright fringe to the second minimum on one side.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Single Slit Diffraction

This concept involves the pattern of light and dark bands created when light passes through a single narrow aperture. The wave nature of light causes it to spread out and interfere with itself, forming regions of constructive and destructive interference on a screen.

Minima Condition (Dark Fringes)

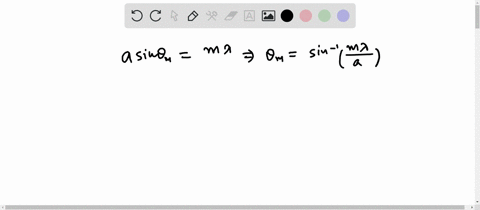

In a single slit diffraction setup, the positions where destructive interference occurs (resulting in dark fringes) are determined by the equation a sin(?) = m?, where 'a' is the slit width, '?' is the wavelength of the light, '?' is the angle at which the minimum occurs, and 'm' is a nonzero integer. This condition is used to calculate the position of the minima on the screen.

Small Angle Approximation

When the angle ? is small, approximations such as sin(?) ? tan(?) ? ? (in radians) can be applied. This simplifies the computation of fringe positions on the screen, where the distance from the central maximum to a minimum can be approximated as y = L m? / a, with 'L' being the distance from the slit to the screen.
