The drawing shows a person (weight, W=584 N ) doing push-ups. Find the normal force exerted by t

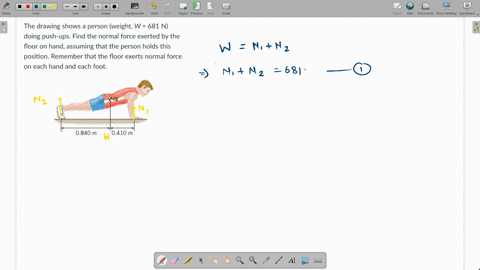

step 1 Hello and welcome to this video solution of numeric here We are given a drawing that shows a per

The drawing shows a person (weight, W=584 N ) doing...

Key Concepts

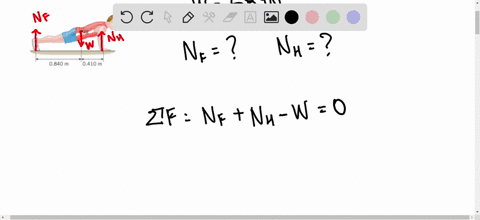

Free-Body Diagram

A free-body diagram is a simplified representation of a body isolated from its surroundings, with all the forces and moments acting on it clearly indicated. Drawing a free-body diagram helps in visualizing and setting up the equilibrium equations necessary to solve for unknown reaction forces in the system.

Static Equilibrium

This concept refers to a state in which all forces and torques acting on a body balance out, meaning that the sum of forces in every direction, as well as the sum of moments about any chosen pivot, equals zero. In problems involving pushes and supports, such as a push-up position, establishing static equilibrium is crucial for setting up the equations needed to calculate unknown forces.

Force Equilibrium

Force equilibrium is a condition where the total vector sum of all forces acting on a body is zero, ensuring that the body does not have any net linear acceleration. In the context of the problem, this means that the vertical forces (including the weight and the reaction forces at the hands and feet) must balance out.

Torque Equilibrium

Torque equilibrium involves ensuring that the sum of the moments (or torques) about any pivot point is zero. This concept is particularly important when forces are applied at different points along the body, as it allows the calculation of the distribution of reaction forces by considering the distances from the pivot to each force application point.
